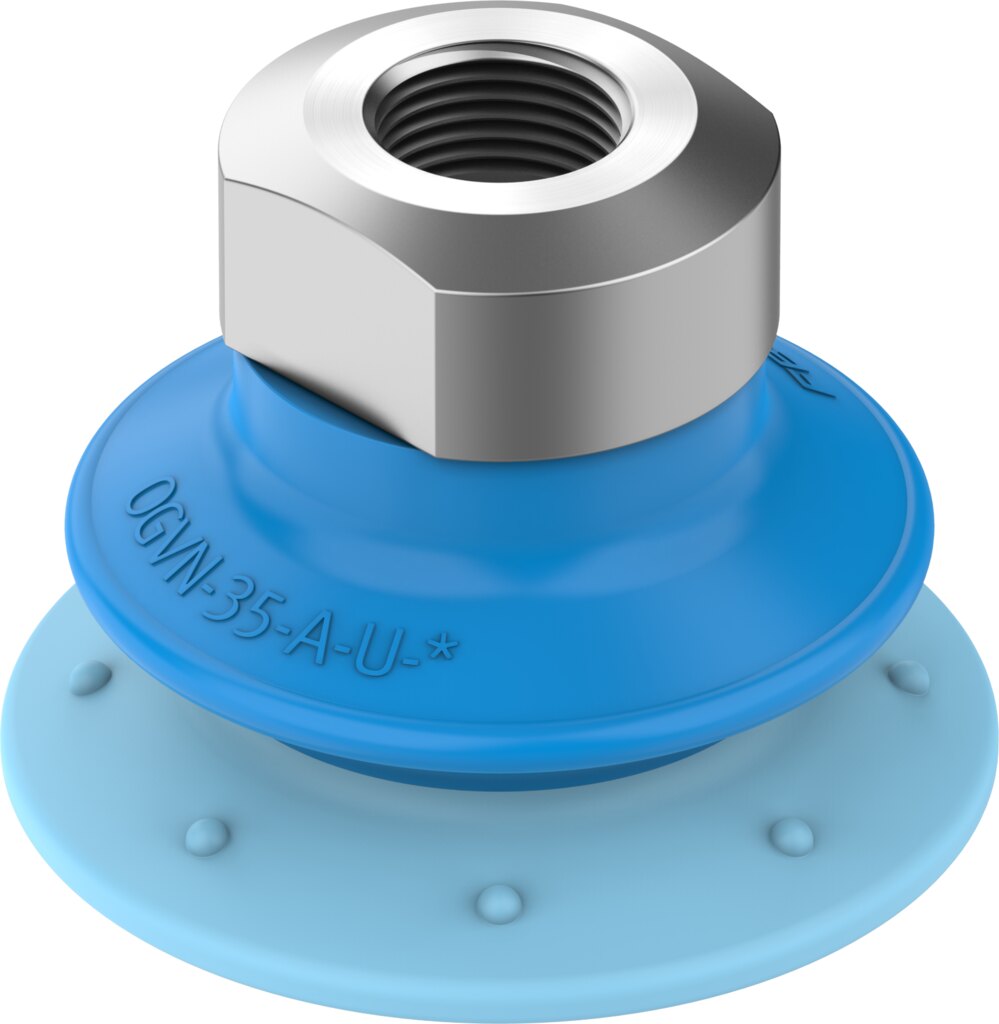

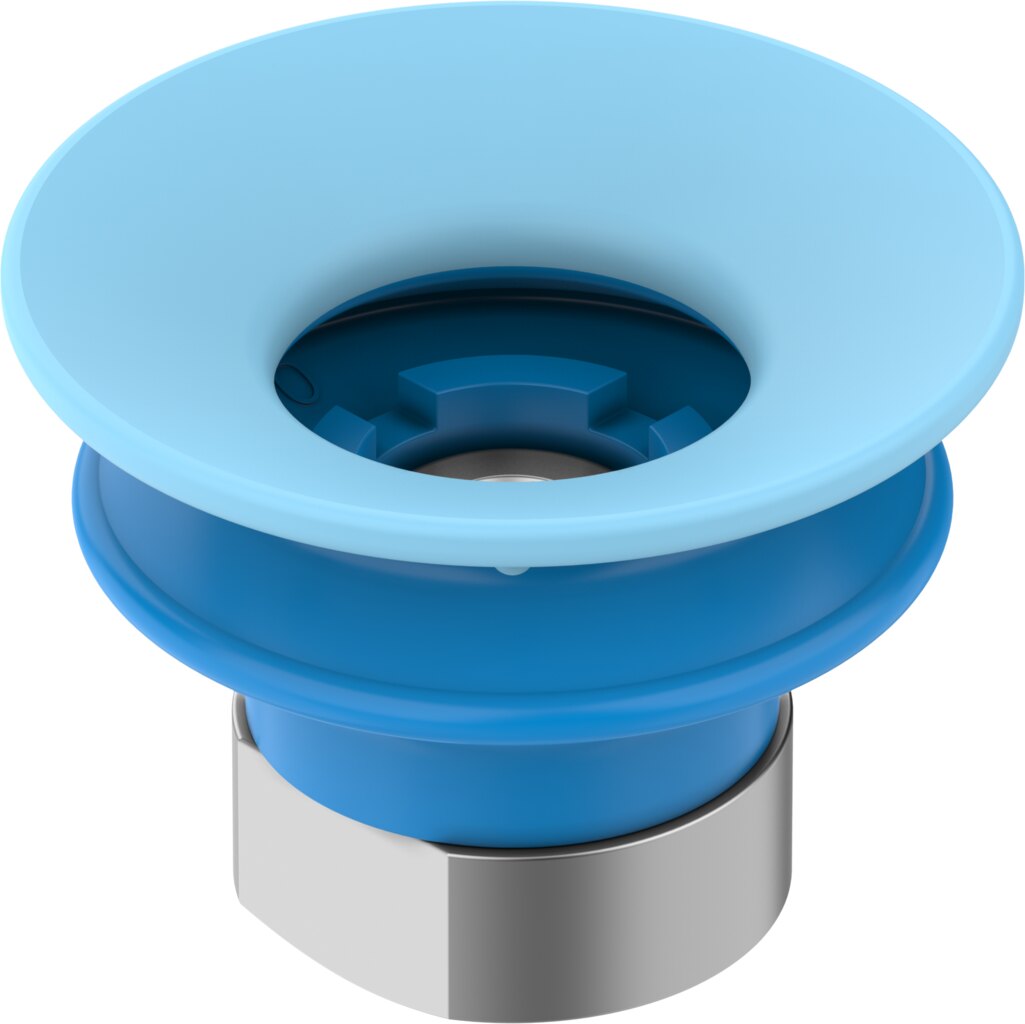

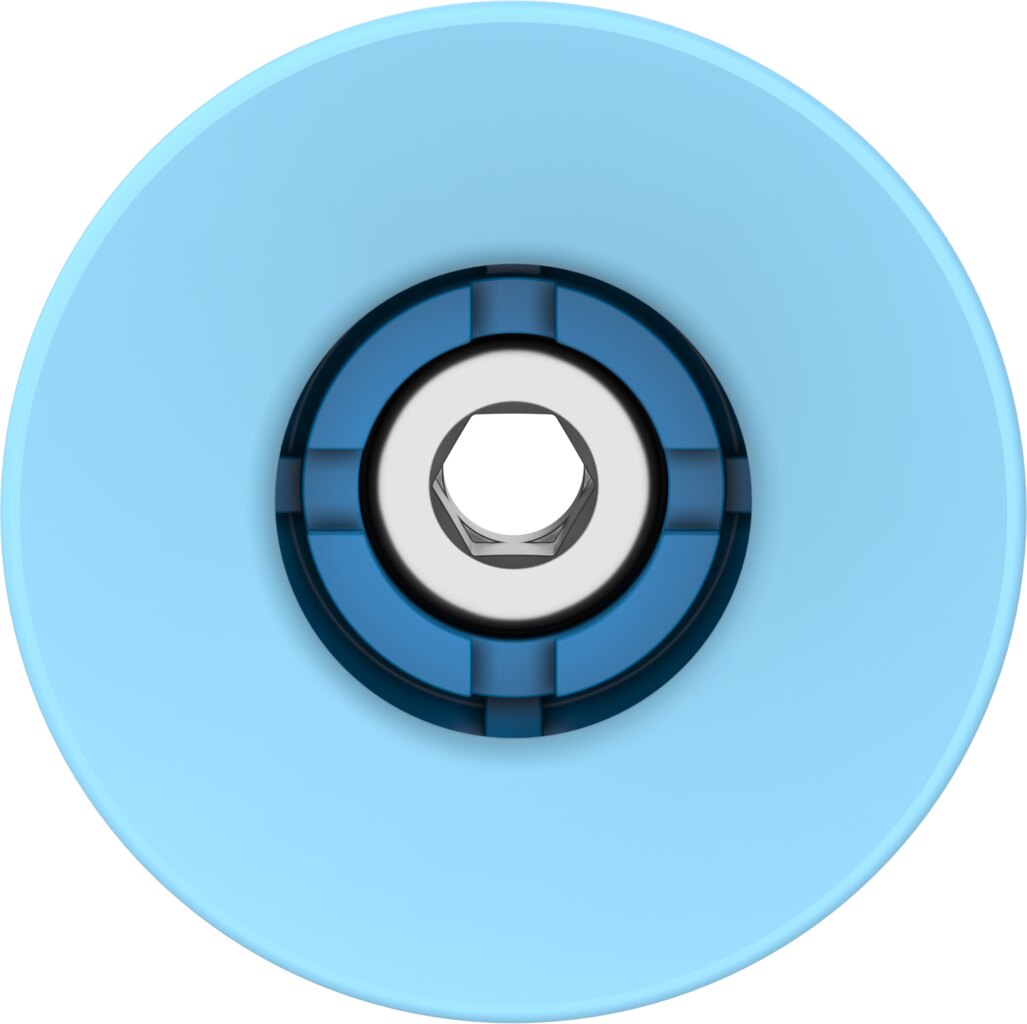

Round bellows vacuum suction cup Ø 35 mm PUR G1/8 OGVN-35-A-U-G18-F - Festo 8204818

Festo ✓ Original product Brand new

With 38 N of holding force at -0.7 bar, the Festo OGVN-35-A-U-G18-F vacuum suction cup (Ø 35 mm) holds parts reliably during handling. Round bellows design made of PUR. Bellows with 1.5 convolutions and 9.5 mm height compensation for uneven or inclined surfaces.

Net
€31.96
excl. VAT
Item FES-8204818
Manufacturer no. OGVN-35-A-U-G18-F
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 38 N of holding force at -0.7 bar, the Festo OGVN-35-A-U-G18-F vacuum suction cup (Ø 35 mm) holds parts reliably during handling.

Benefits

  • 38 N holding force at -0.7 bar nominal operating pressure
  • Bellows with 1.5 convolutions and 9.5 mm height compensation for uneven or inclined surfaces
  • PUR suction cup, Shore hardness A 70 +/-5
  • Takes up 30 N of lateral force at nominal operating pressure
  • Vacuum connection female thread G1/8 on top, mounted directly via the port

Applications

Typical uses are parts with height offsets or slight curvature, such as cartons, bags or plastic mouldings.

Technical data

TypeOGVN-35-A-U-G18-F
Festo part number8204818
Height compensator for suction cup9.5 mm
Nominal size5 mm
Suction cup diameter35 mm
Suction cup volume4.4 cm³
Position of connectionOn top
Mounting positionAny
Suction cup shapeRound, bellows with 1.5 convolutions
Operating pressure-0.95 to 0 bar
Nominal operating pressure-0.7 bar
Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-A1/A2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature10 to 45 °C
Holding force at nominal operating pressure38 N
Lateral force at nominal operating pressure30 N
Product weight5.1 g
Type of mountingVia vacuum port
Vacuum connectionFemale thread G1/8
ColourBlue/light blue
Shore hardnessA 70 +/-5
Material screwed plugWrought aluminium alloy
Note on materialsRoHS compliant
Material suction cupPUR
Weight0.013 kg
ManufacturerFesto
Hersteller-NrOGVN-35-A-U-G18-F
EAN4052568929909
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPUR
ThreadG 1/8 IG
Nominal size DN [mm]5
Diameter [mm]35
MediumAir
Thread typeInternal thread
Pneumatic connectionG1/8 IG
Temperature (max.)45
