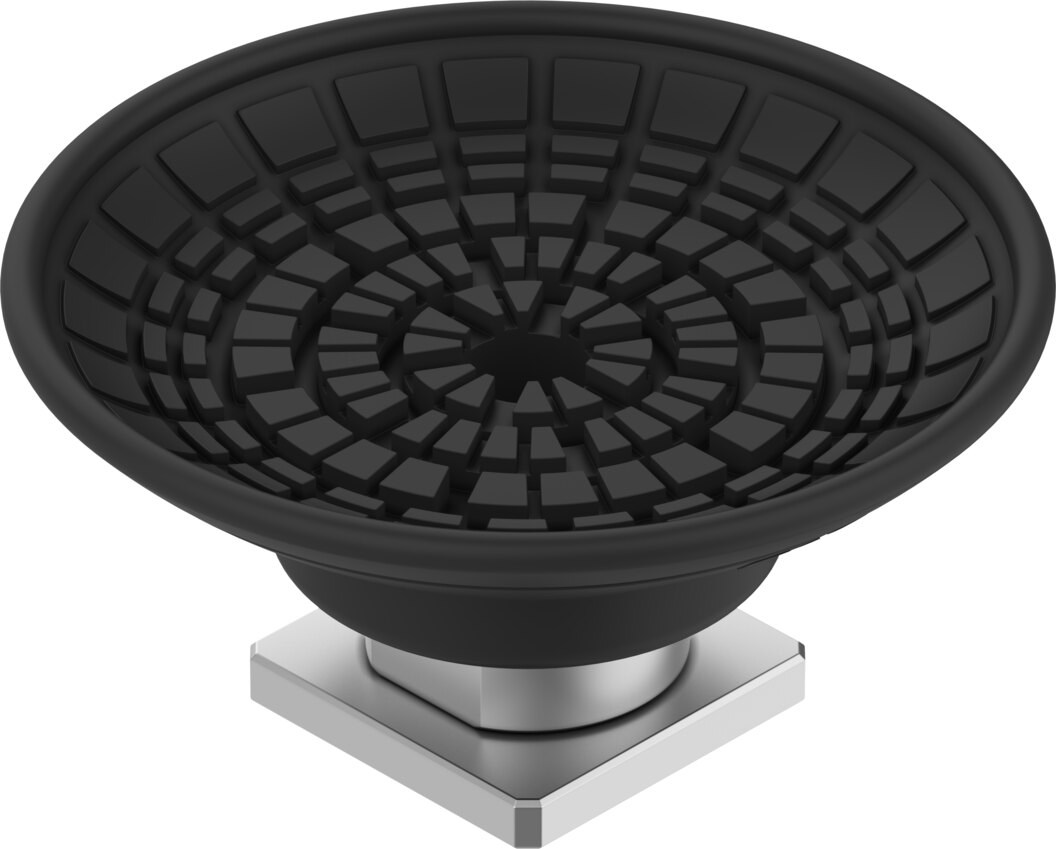

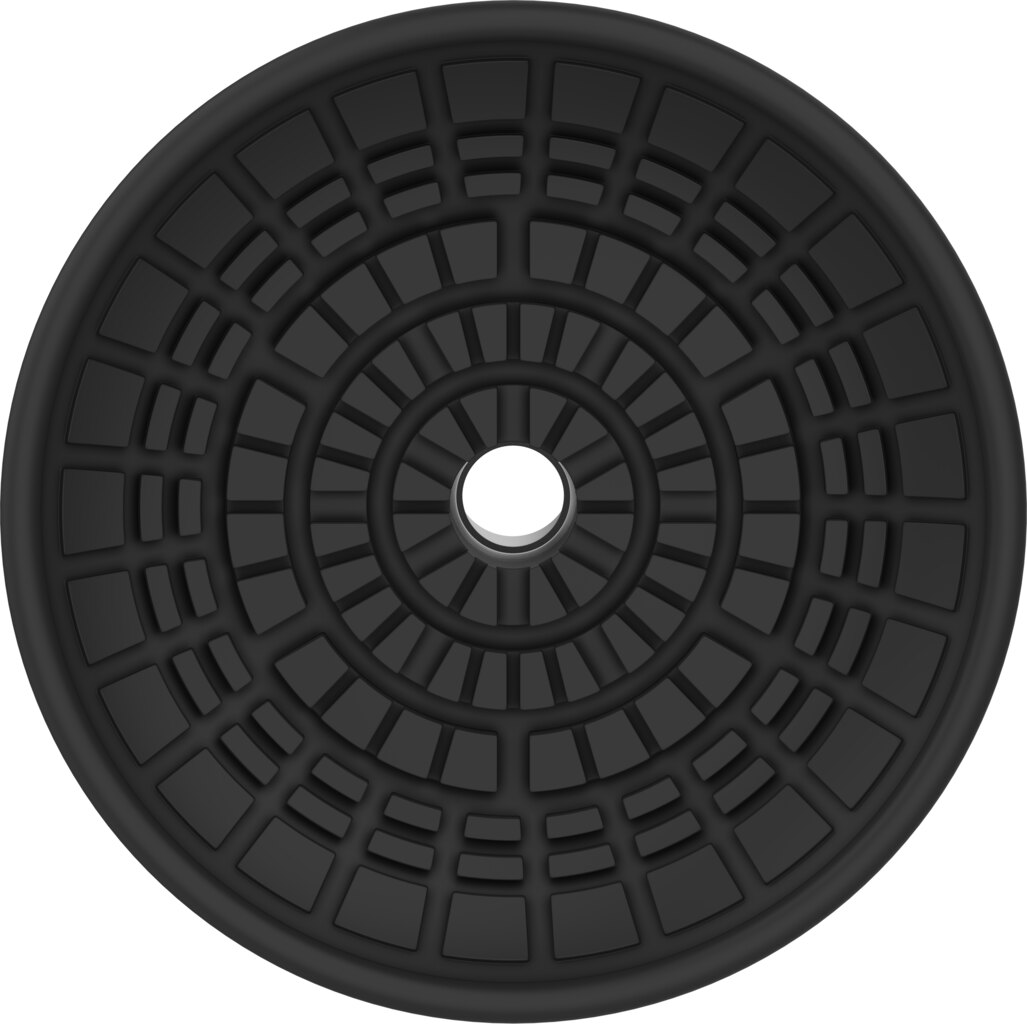

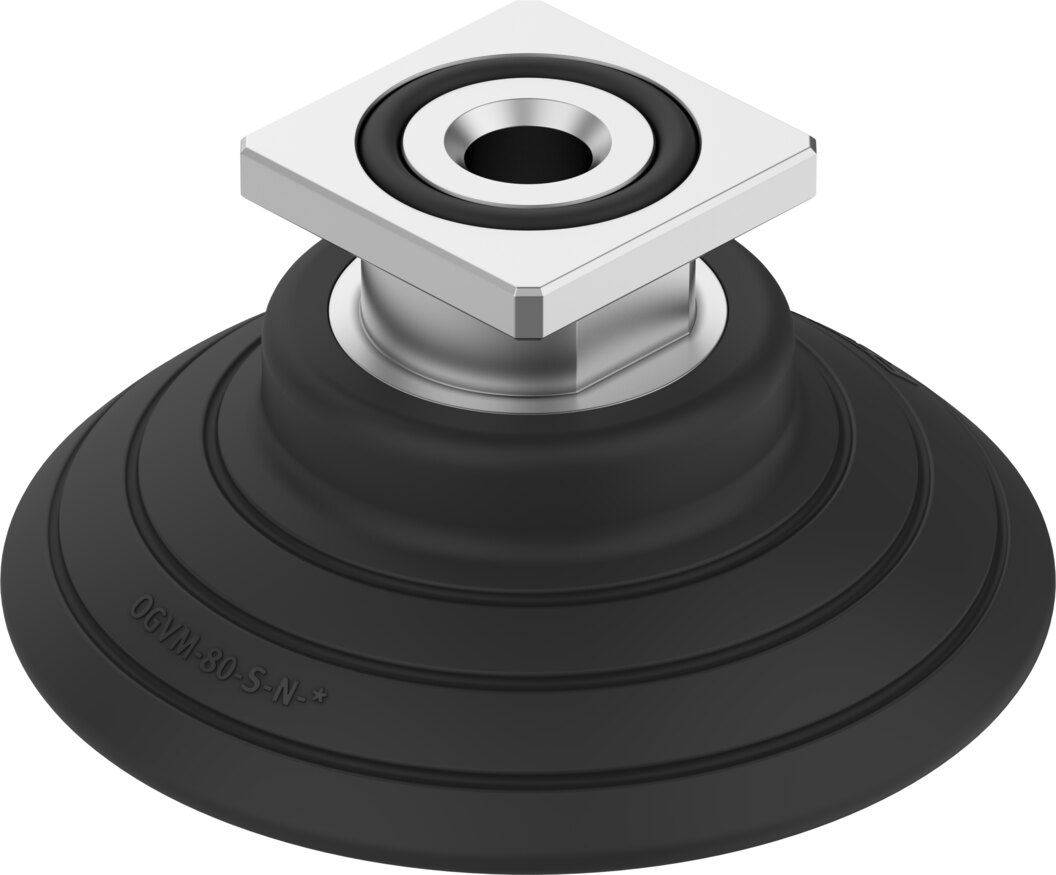

Round flat vacuum suction cup Ø 80 mm NBR with rectangular adapter OGVM-80-S-N-RA - Festo 8213221
The Festo OGVM-80-S-N-RA vacuum suction cup grips workpieces securely with 225 N of holding force at -0.6 bar nominal operating pressure. Round flat design made of NBR. Low internal volume of 35 cm³ in a flat design, so the vacuum builds up quickly.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo OGVM-80-S-N-RA vacuum suction cup grips workpieces securely with 225 N of holding force at -0.6 bar nominal operating pressure.
Key benefits
- 225 N holding force at -0.6 bar nominal operating pressure
- Low internal volume of 35 cm³ in a flat design, so the vacuum builds up quickly
- Suction cup material NBR with Shore hardness 60 +/-5
- Lateral force of 113 N at nominal operating pressure, relevant for fast sideways moves
- Rectangular adapter RA for positive-locking mounting in the holder
Areas of use
Typical applications are flat parts with smooth surfaces, such as sheets, panels and film packaging.
Technical data
| Type | OGVM-80-S-N-RA |
|---|---|
| Festo part number | 8213221 |
| Height compensator for suction cup | 7.6 mm |
| Minimum workpiece radius | 70 mm |
| Nominal size | 8 mm |
| Suction cup diameter | 80 mm |
| Suction cup volume | 35 cm³ |
| Position of connection | On top |
| Mounting position | Any |
| Suction cup shape | Round, flat |
| Operating pressure | -0.95 to 0 bar |
| Nominal operating pressure | -0.6 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1/A2-L |
| Ambient temperature | -20 to 80 °C |
| Holding force at nominal operating pressure | 225 N |
| Lateral force at nominal operating pressure | 113 N |
| Product weight | 73 g |
| Type of mounting | Via vacuum port |
| Vacuum connection | Rectangular adapter RA |
| Colour | Black |
| Shore hardness | 60 +/-5 |
| Material screwed plug | Wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material suction cup | NBR |
| Weight | 0.075 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OGVM-80-S-N-RA |
| EAN | 4052568790493 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | NBR |
| Nominal size DN [mm] | 8 |
| Diameter [mm] | 80 |
| Medium | Air |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
