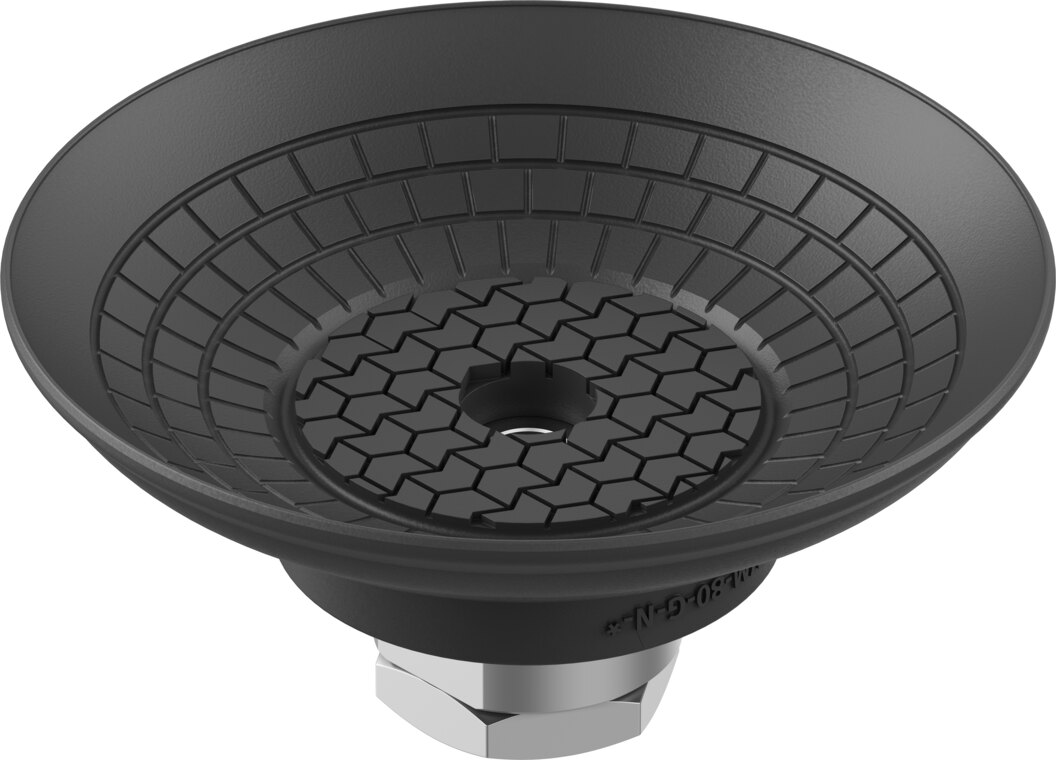

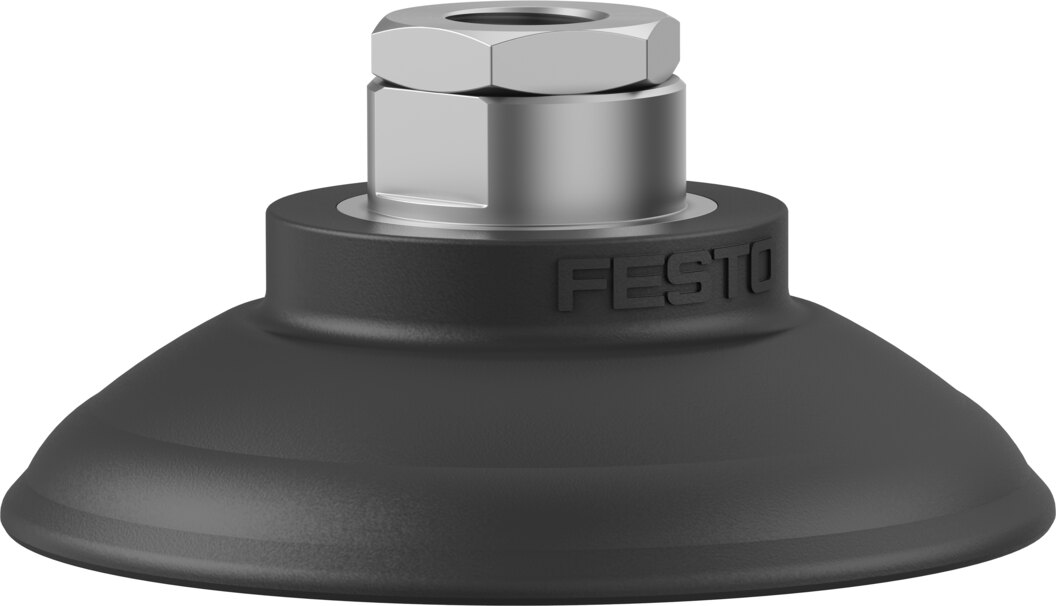

Round bell-shaped vacuum suction cup Ø 80 mm NBR G1/4 OGVM-80-G-N-G14F - Festo 8073833
The Festo OGVM-80-G-N-G14F vacuum suction cup grips workpieces securely with 220 N of holding force at -0.6 bar nominal operating pressure. Round bell-shaped design made of NBR. Bell shape for curved workpieces from a workpiece radius of 45 mm. NBR suction cup, Shore hardness 60 +/-5.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo OGVM-80-G-N-G14F vacuum suction cup grips workpieces securely with 220 N of holding force at -0.6 bar nominal operating pressure.
Benefits
- 220 N holding force at -0.6 bar nominal operating pressure
- Bell shape for curved workpieces from a workpiece radius of 45 mm
- NBR suction cup, Shore hardness 60 +/-5
- Lateral force of 241 N at nominal operating pressure, relevant for fast sideways moves
- Vacuum connection female thread G1/4 on top, mounted directly via the port
Applications
The bell shape suits curved surfaces and textured parts, such as tubes, mouldings or castings.
Technical data
| Type | OGVM-80-G-N-G14F |
|---|---|
| Festo part number | 8073833 |
| Height compensator for suction cup | 12.8 mm |
| Minimum workpiece radius | 45 mm |
| Nominal size | 7 mm |
| Suction cup diameter | 80 mm |
| Suction cup volume | 48 cm³ |
| Position of connection | On top |
| Mounting position | Any |
| Suction cup shape | Round bell-shaped |
| Operating pressure | -0.95 to 0 bar |
| Nominal operating pressure | -0.6 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20 to 80 °C |
| Holding force at nominal operating pressure | 220 N |
| Lateral force at nominal operating pressure | 241 N |
| Product weight | 51 g |
| Type of mounting | Via vacuum port |
| Vacuum connection | Female thread G1/4 |
| Colour | Black |
| Shore hardness | 60 +/-5 |
| Material screwed plug | Wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material suction cup | NBR |
| Weight | 0.055 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OGVM-80-G-N-G14F |
| EAN | 4052568300760 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | NBR |
| Thread | G 1/4 IG |
| Nominal size DN [mm] | 7 |
| Diameter [mm] | 80 |
| Medium | Air |
| Thread type | Internal thread |
| Pneumatic connection | G1/4 IG |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
