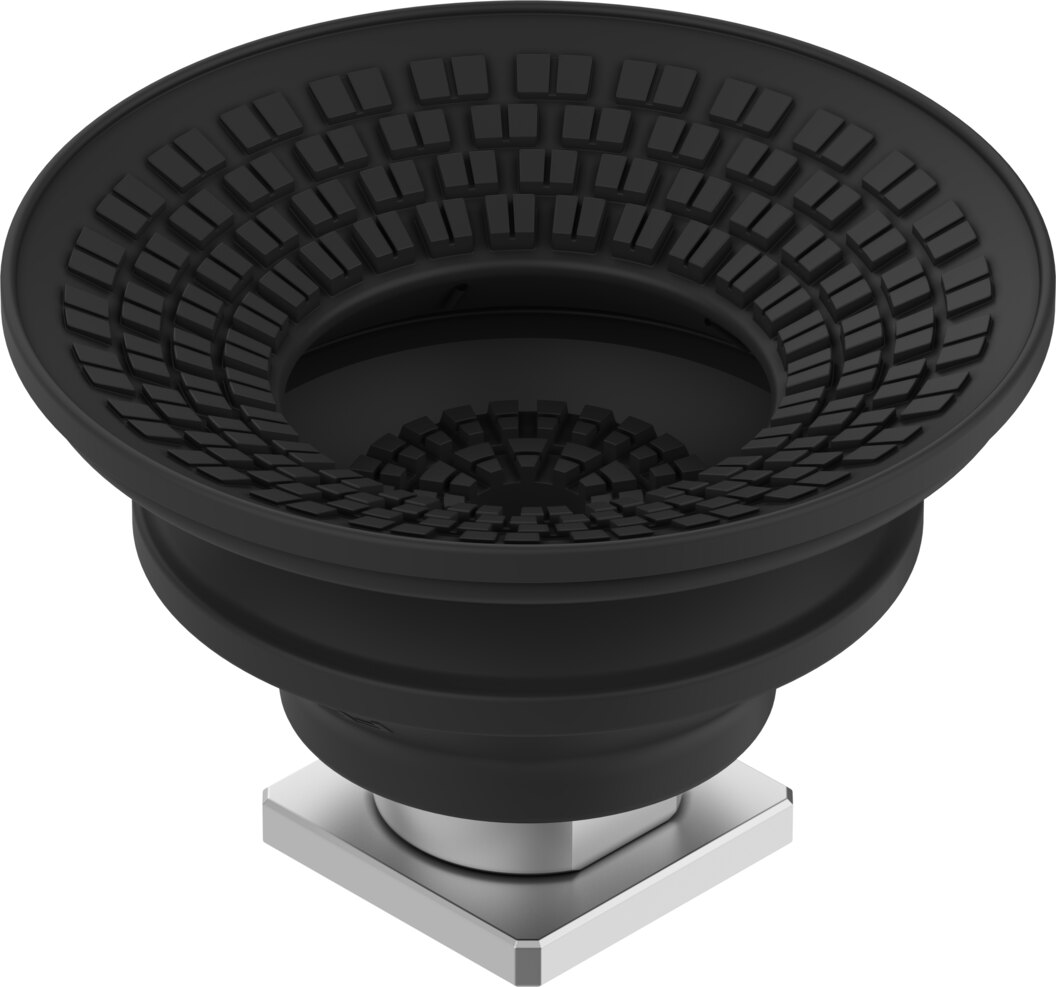

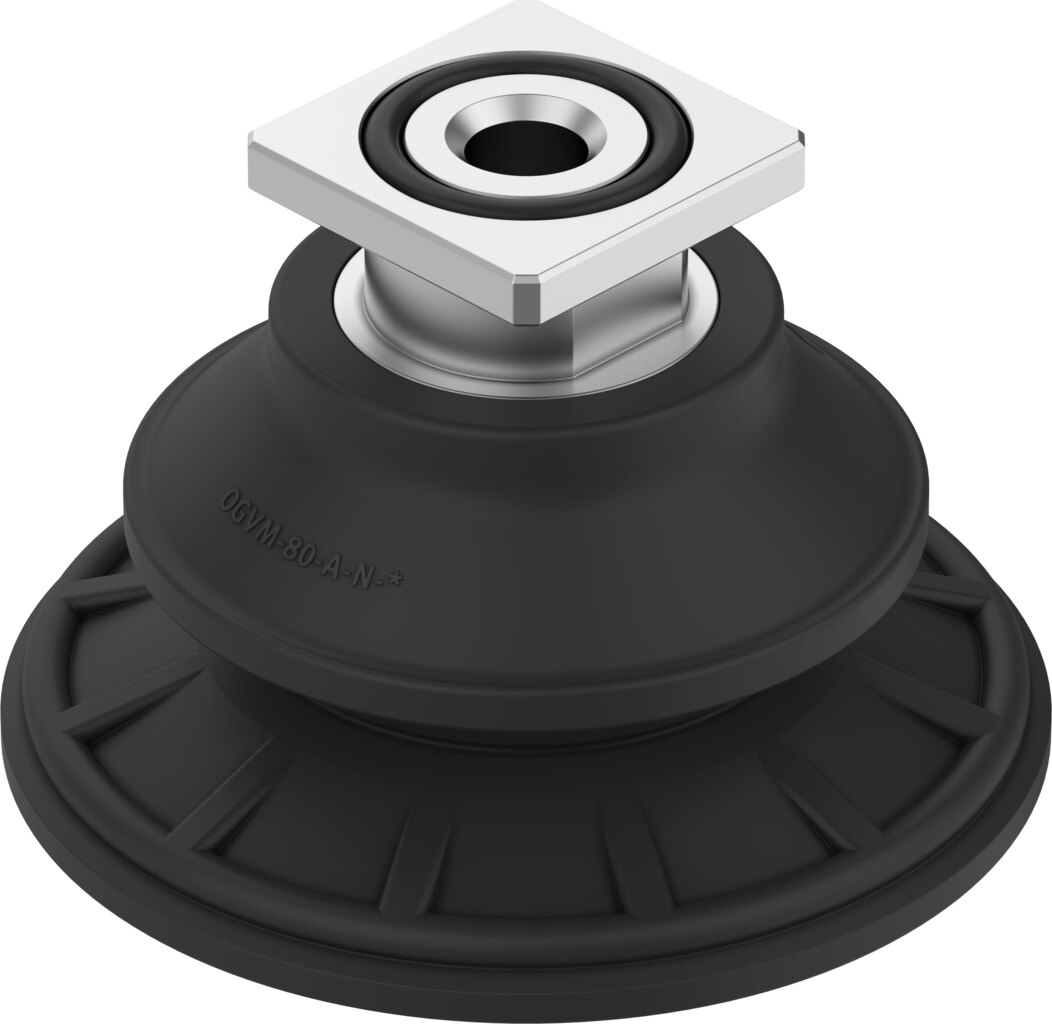

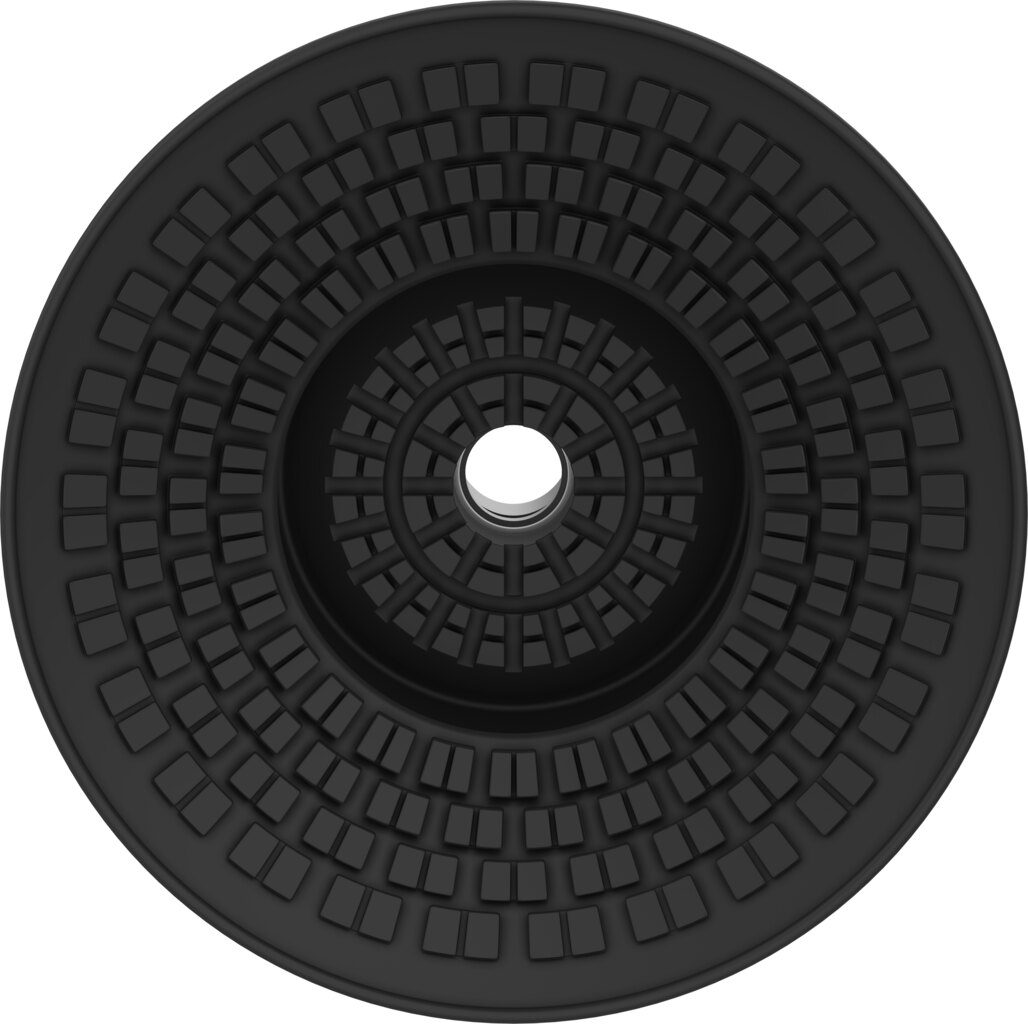

Round bellows vacuum suction cup Ø 80 mm NBR with rectangular adapter OGVM-80-A-N-RA - Festo 8213236
With 246 N of holding force at -0.6 bar, the Festo OGVM-80-A-N-RA vacuum suction cup (Ø 80 mm) holds parts reliably during handling. Round bellows design made of NBR. Bellows with 1.5 convolutions and 22 mm height compensation for uneven or inclined surfaces. NBR suction cup, Shore hardness 60 +/-5.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 246 N of holding force at -0.6 bar, the Festo OGVM-80-A-N-RA vacuum suction cup (Ø 80 mm) holds parts reliably during handling.
Key benefits
- 246 N holding force at -0.6 bar nominal operating pressure
- Bellows with 1.5 convolutions and 22 mm height compensation for uneven or inclined surfaces
- NBR suction cup, Shore hardness 60 +/-5
- Lateral force of 225 N at nominal operating pressure, relevant for fast sideways moves
- Rectangular adapter RA for positive-locking mounting in the holder
Typical applications
Typical uses are parts with height offsets or slight curvature, such as cartons, bags or plastic mouldings.
Technical data
| Type | OGVM-80-A-N-RA |
|---|---|
| Festo part number | 8213236 |
| Height compensator for suction cup | 22 mm |
| Minimum workpiece radius | 75 mm |
| Nominal size | 8 mm |
| Suction cup diameter | 80 mm |
| Suction cup volume | 64 cm³ |
| Position of connection | On top |
| Mounting position | Any |
| Suction cup shape | Round, bellows with 1.5 convolutions |
| Operating pressure | -0.95 to 0 bar |
| Nominal operating pressure | -0.6 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1/A2-L |
| Ambient temperature | -20 to 80 °C |
| Holding force at nominal operating pressure | 246 N |
| Lateral force at nominal operating pressure | 225 N |
| Product weight | 82 g |
| Type of mounting | Via vacuum port |
| Vacuum connection | Rectangular adapter RA |
| Colour | Black |
| Shore hardness | 60 +/-5 |
| Material screwed plug | Wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material suction cup | NBR |
| Weight | 0.085 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OGVM-80-A-N-RA |
| EAN | 4052568790608 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | NBR |
| Nominal size DN [mm] | 8 |
| Diameter [mm] | 80 |
| Medium | Air |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
