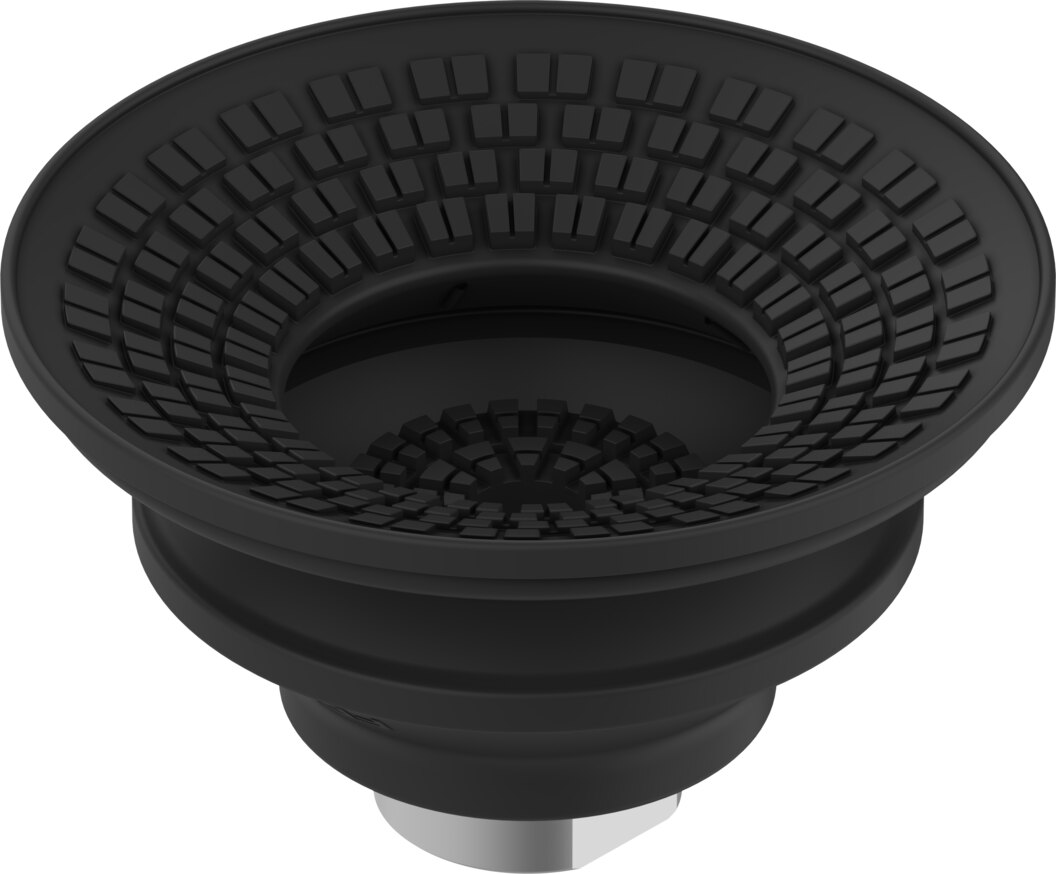

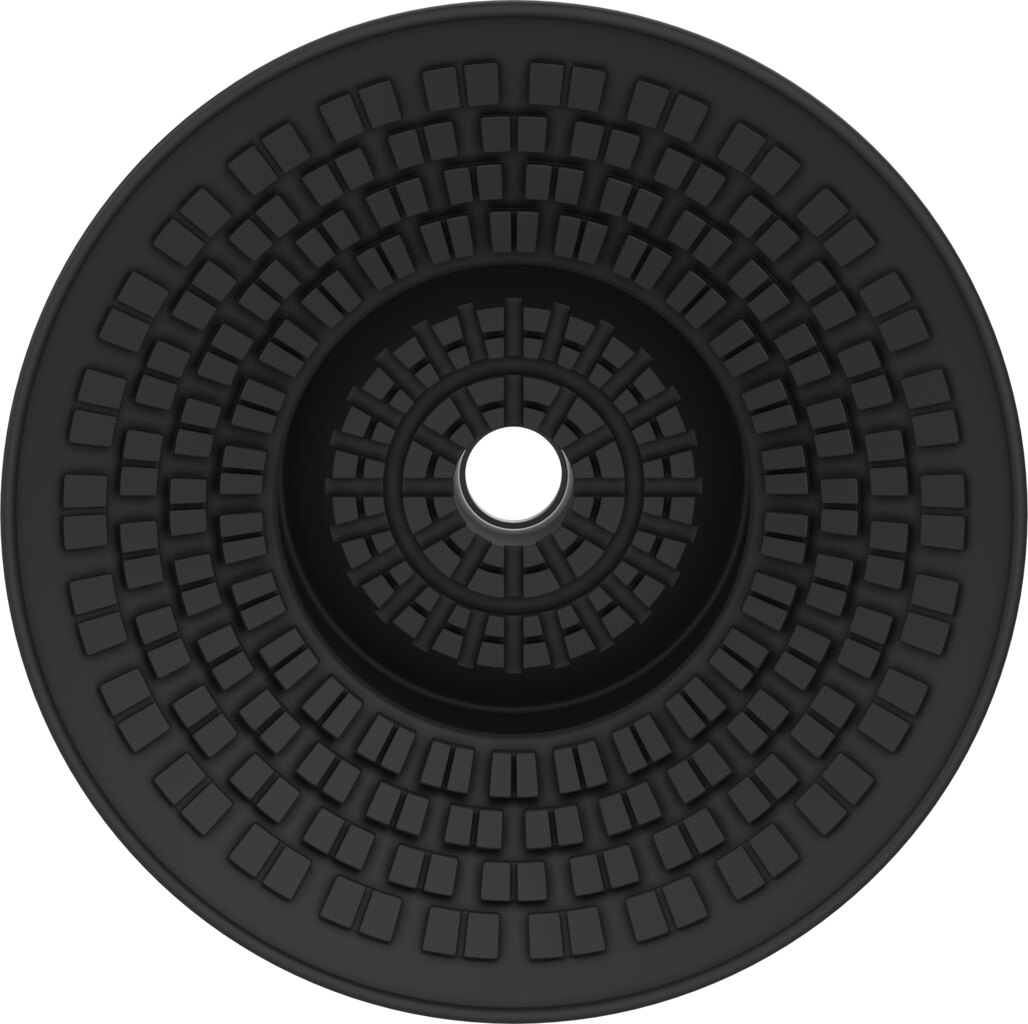

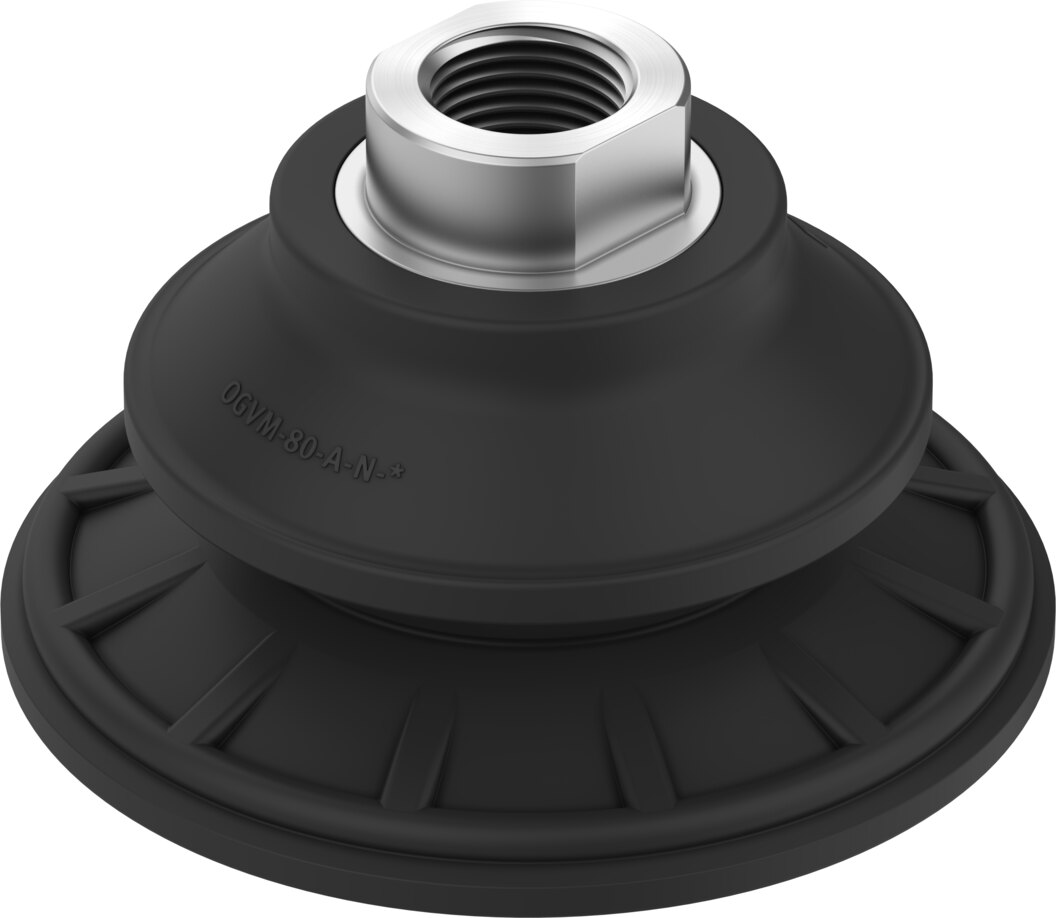

Round bellows vacuum suction cup Ø 80 mm NBR G3/8 OGVM-80-A-N-G38F - Festo 8211028

Festo ✓ Original product Brand new

The Festo OGVM-80-A-N-G38F vacuum suction cup grips workpieces securely with 246 N of holding force at -0.6 bar nominal operating pressure. Round bellows design made of NBR. The 1.5-convolution bellows compensates 22 mm in height and touches down gently.

Net
€42.50
excl. VAT
Item FES-8211028
Manufacturer no. OGVM-80-A-N-G38F
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo OGVM-80-A-N-G38F vacuum suction cup grips workpieces securely with 246 N of holding force at -0.6 bar nominal operating pressure.

Why choose it

  • Holding force of 246 N at a nominal operating pressure of -0.6 bar
  • The 1.5-convolution bellows compensates 22 mm in height and touches down gently
  • Suction cup material NBR with Shore hardness 60 +/-5
  • Lateral force of 225 N at nominal operating pressure, relevant for fast sideways moves
  • Vacuum connection female thread G3/8 on top, mounted directly via the port

Applications

The bellows works on curved, inclined or varying-height workpieces and suits packaging and moulded parts.

Technical data

TypeOGVM-80-A-N-G38F
Festo part number8211028
Height compensator for suction cup22 mm
Minimum workpiece radius75 mm
Nominal size8 mm
Suction cup diameter80 mm
Suction cup volume64 cm³
Position of connectionOn top
Mounting positionAny
Suction cup shapeRound, bellows with 1.5 convolutions
Operating pressure-0.95 to 0 bar
Nominal operating pressure-0.6 bar
Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-A1/A2-L
Ambient temperature-20 to 80 °C
Holding force at nominal operating pressure246 N
Lateral force at nominal operating pressure225 N
Product weight69 g
Type of mountingVia vacuum port
Vacuum connectionFemale thread G3/8
ColourBlack
Shore hardness60 +/-5
Material screwed plugWrought aluminium alloy
Note on materialsRoHS compliant
Material suction cupNBR
Weight0.075 kg
ManufacturerFesto
Hersteller-NrOGVM-80-A-N-G38F
EAN4052568790424
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNBR
ThreadG 3/8 IG
Nominal size DN [mm]8
Diameter [mm]80
MediumAir
Thread typeInternal thread
Pneumatic connectionG3/8 IG
Temperaturbereich-20-80 °C
Temperature (max.)80
