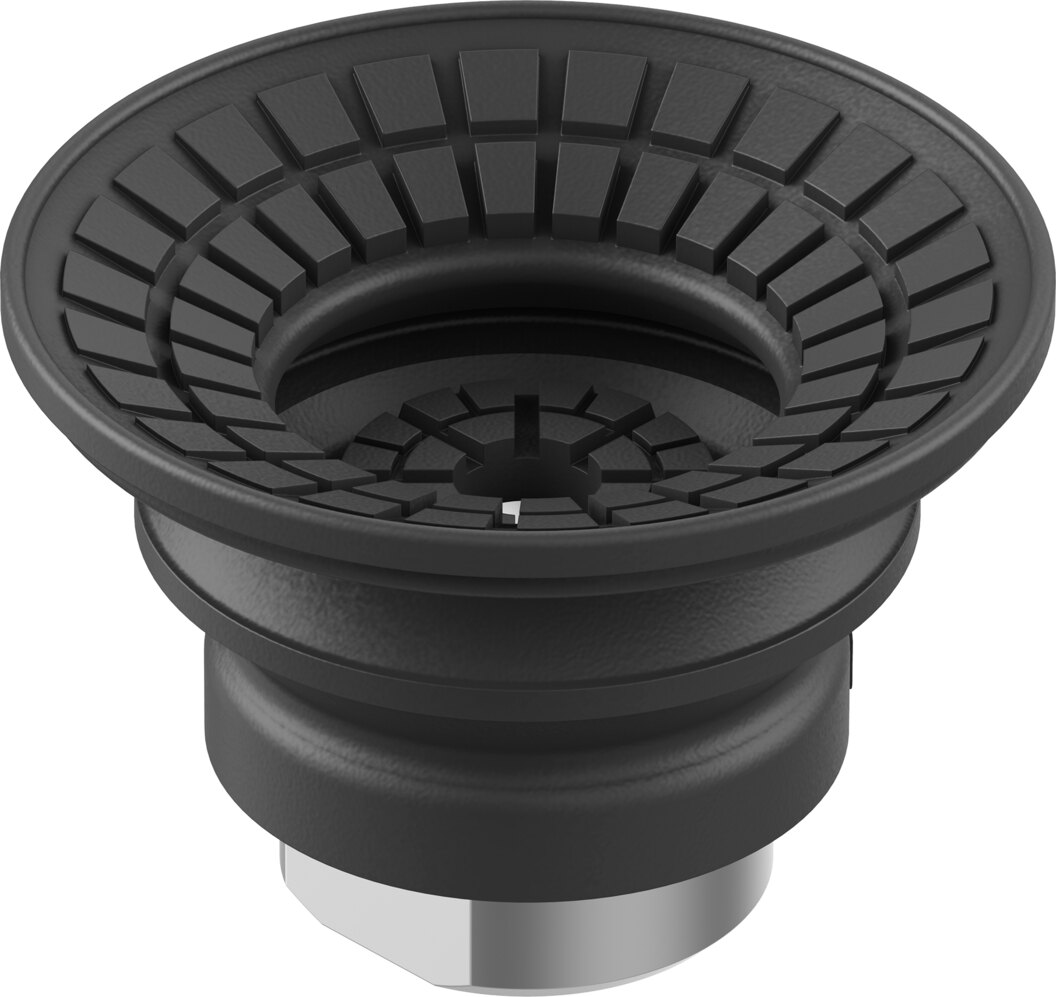

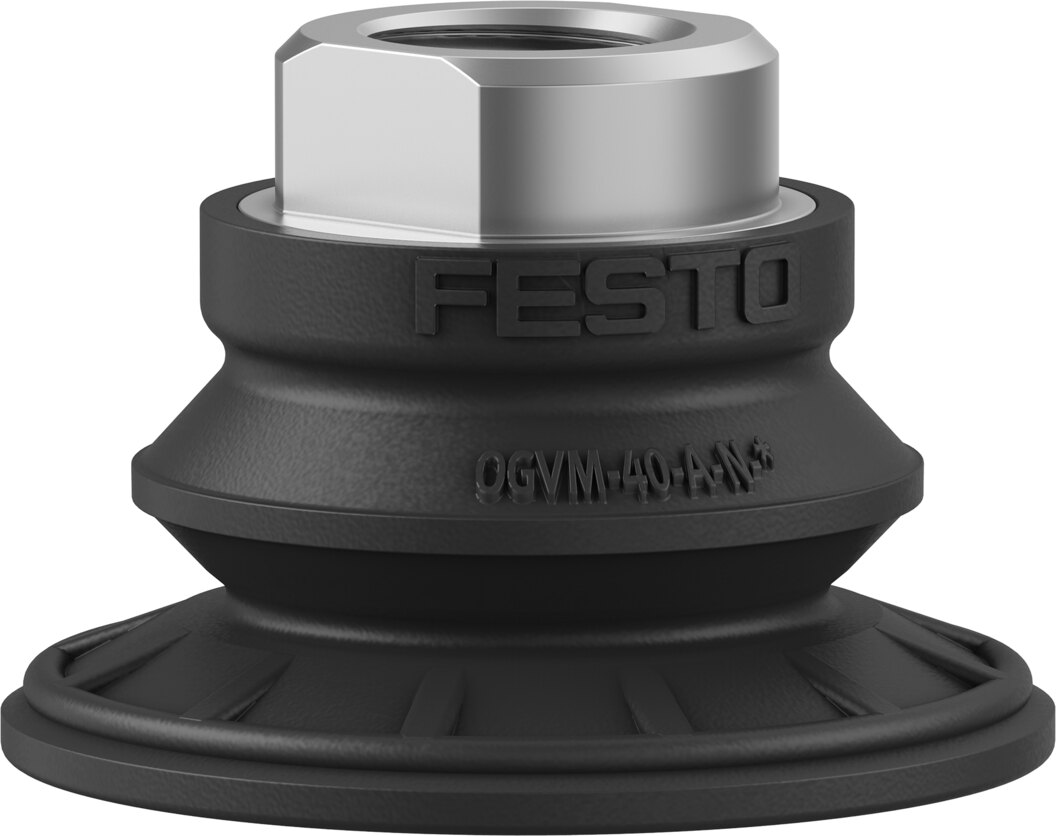

Round bellows vacuum suction cup Ø 40 mm NBR G1/4 OGVM-40-A-N-G14F - Festo 8073836

Festo ✓ Original product Brand new

With 60 N of holding force at -0.6 bar, the Festo OGVM-40-A-N-G14F vacuum suction cup (Ø 40 mm) holds parts reliably during handling. Round bellows design made of NBR. The 1.5-convolution bellows compensates 10 mm in height and touches down gently.

Net
€34.97
excl. VAT
Item FES-8073836
Manufacturer no. OGVM-40-A-N-G14F
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 60 N of holding force at -0.6 bar, the Festo OGVM-40-A-N-G14F vacuum suction cup (Ø 40 mm) holds parts reliably during handling.

Benefits

  • 60 N holding force at -0.6 bar nominal operating pressure
  • The 1.5-convolution bellows compensates 10 mm in height and touches down gently
  • Suction cup material NBR with Shore hardness 60 +/-5
  • Lateral force of 62 N at nominal operating pressure, relevant for fast sideways moves
  • Mounts directly via the female thread G1/4 vacuum connection

Applications

The bellows works on curved, inclined or varying-height workpieces and suits packaging and moulded parts.

Technical data

TypeOGVM-40-A-N-G14F
Festo part number8073836
Height compensator for suction cup10 mm
Minimum workpiece radius30 mm
Nominal size4 mm
Suction cup diameter40 mm
Suction cup volume7.8 cm³
Position of connectionOn top
Mounting positionAny
Suction cup shapeRound, bellows with 1.5 convolutions
Operating pressure-0.95 to 0 bar
Nominal operating pressure-0.6 bar
Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-A1-L
Ambient temperature-20 to 80 °C
Holding force at nominal operating pressure60 N
Lateral force at nominal operating pressure62 N
Product weight17 g
Type of mountingVia vacuum port
Vacuum connectionFemale thread G1/4
ColourBlack
Shore hardness60 +/-5
Material screwed plugWrought aluminium alloy
Note on materialsRoHS compliant
Material suction cupNBR
Weight0.018 kg
ManufacturerFesto
Hersteller-NrOGVM-40-A-N-G14F
EAN4052568300791
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNBR
ThreadG 1/4 IG
Nominal size DN [mm]4
Diameter [mm]40
MediumAir
Thread typeInternal thread
Pneumatic connectionG1/4 IG
Temperaturbereich-20-80 °C
Temperature (max.)80
