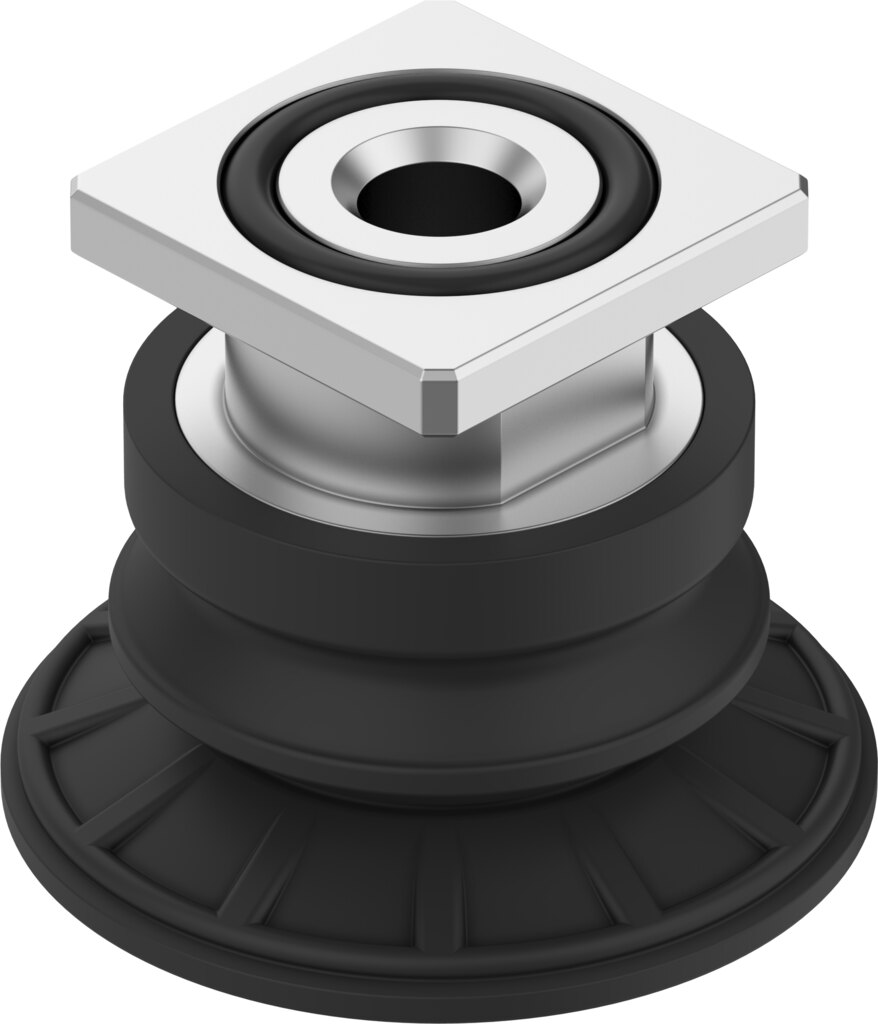

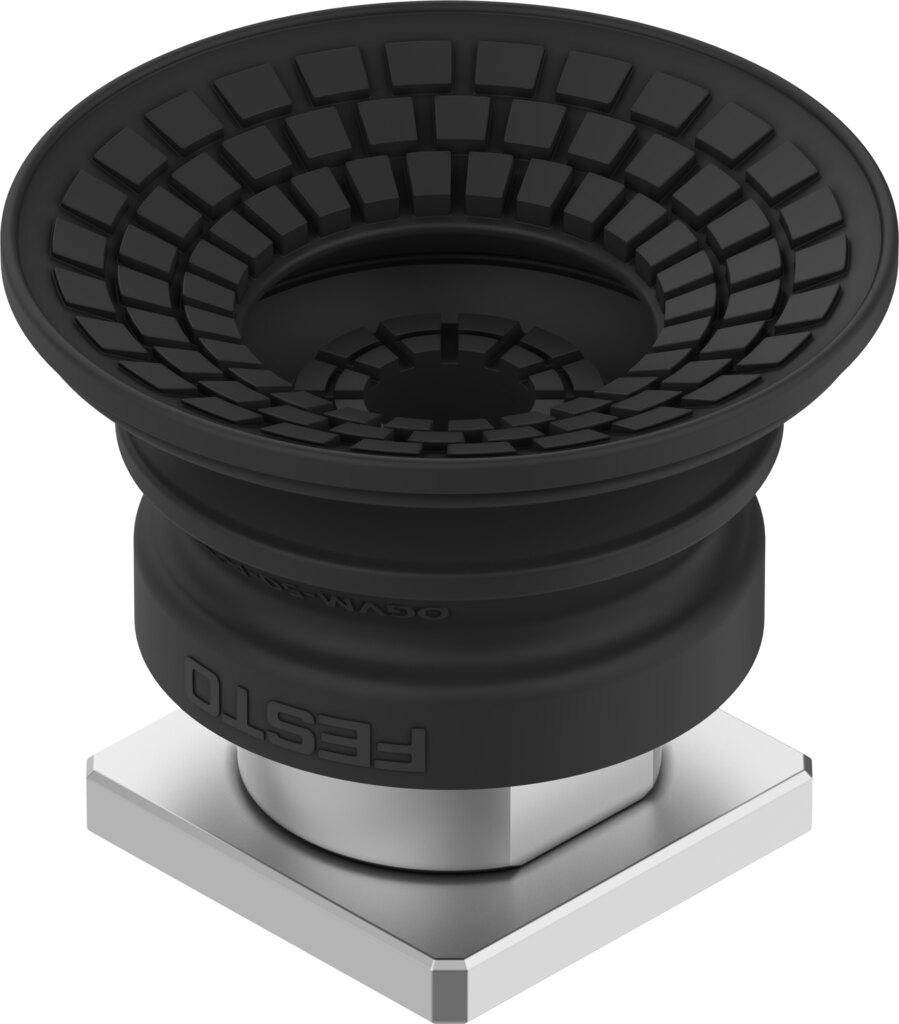

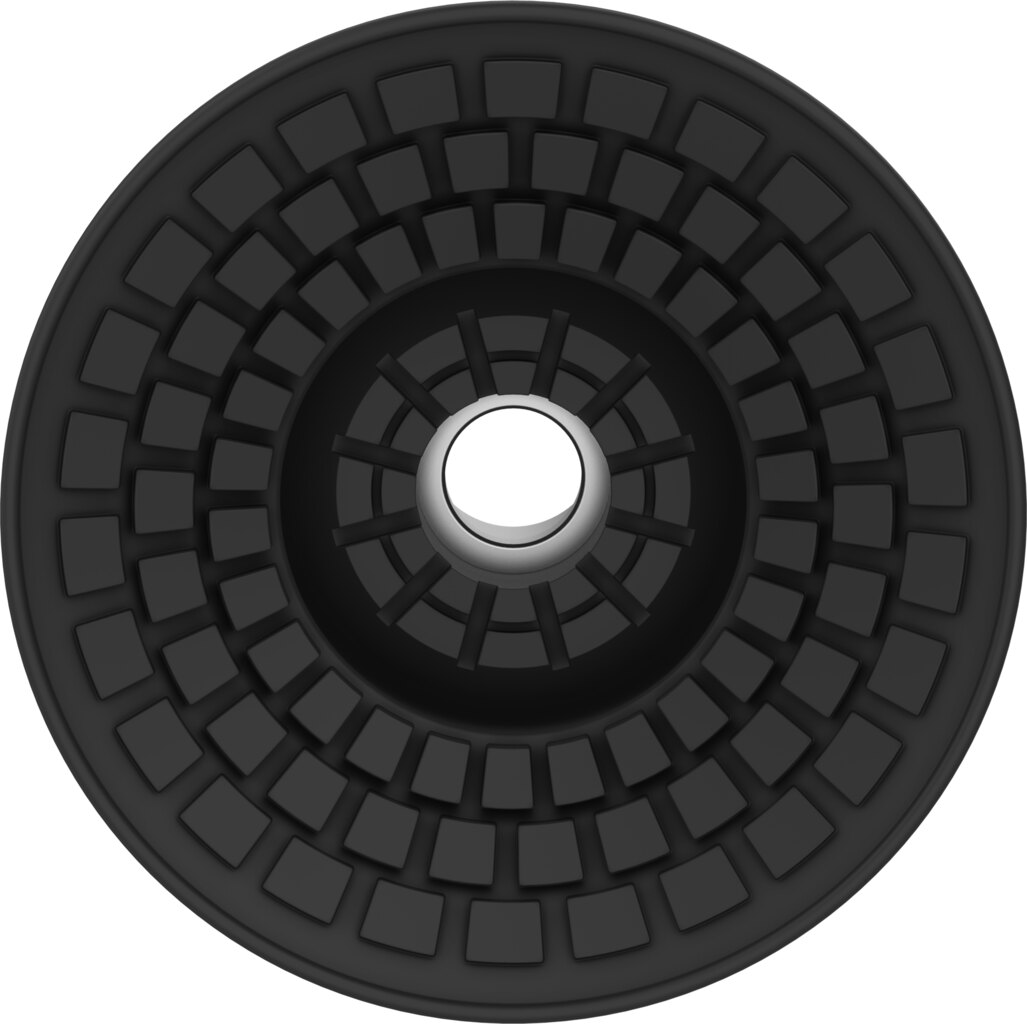

Round bellows vacuum suction cup Ø 50 mm NBR with rectangular adapter OGVM-50-A-N-RA - Festo 8213234

Festo ✓ Original product Brand new

With 90 N of holding force at -0.6 bar, the Festo OGVM-50-A-N-RA vacuum suction cup (Ø 50 mm) holds parts reliably during handling. Round bellows design made of NBR. Bellows with 1.5 convolutions and 11.5 mm height compensation for uneven or inclined surfaces.

Net
€53.13
excl. VAT
Item FES-8213234
Manufacturer no. OGVM-50-A-N-RA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 90 N of holding force at -0.6 bar, the Festo OGVM-50-A-N-RA vacuum suction cup (Ø 50 mm) holds parts reliably during handling.

Benefits

  • 90 N holding force at -0.6 bar nominal operating pressure
  • Bellows with 1.5 convolutions and 11.5 mm height compensation for uneven or inclined surfaces
  • Suction cup material NBR with Shore hardness 60 +/-5
  • Lateral force of 72 N at nominal operating pressure, relevant for fast sideways moves
  • Rectangular adapter RA for positive-locking mounting in the holder

Applications

The bellows works on curved, inclined or varying-height workpieces and suits packaging and moulded parts.

Technical data

TypeOGVM-50-A-N-RA
Festo part number8213234
Height compensator for suction cup11.5 mm
Minimum workpiece radius35 mm
Nominal size7 mm
Suction cup diameter50 mm
Suction cup volume15 cm³
Position of connectionOn top
Mounting positionAny
Suction cup shapeRound, bellows with 1.5 convolutions
Operating pressure-0.95 to 0 bar
Nominal operating pressure-0.6 bar
Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-A1/A2-L
Ambient temperature-20 to 80 °C
Holding force at nominal operating pressure90 N
Lateral force at nominal operating pressure72 N
Product weight48 g
Type of mountingVia vacuum port
Vacuum connectionRectangular adapter RA
ColourBlack
Shore hardness60 +/-5
Material screwed plugWrought aluminium alloy
Note on materialsRoHS compliant
Material suction cupNBR
Weight0.043 kg
ManufacturerFesto
Hersteller-NrOGVM-50-A-N-RA
EAN4052568790585
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNBR
Nominal size DN [mm]7
Diameter [mm]50
MediumAir
Temperaturbereich-20-80 °C
Temperature (max.)80
