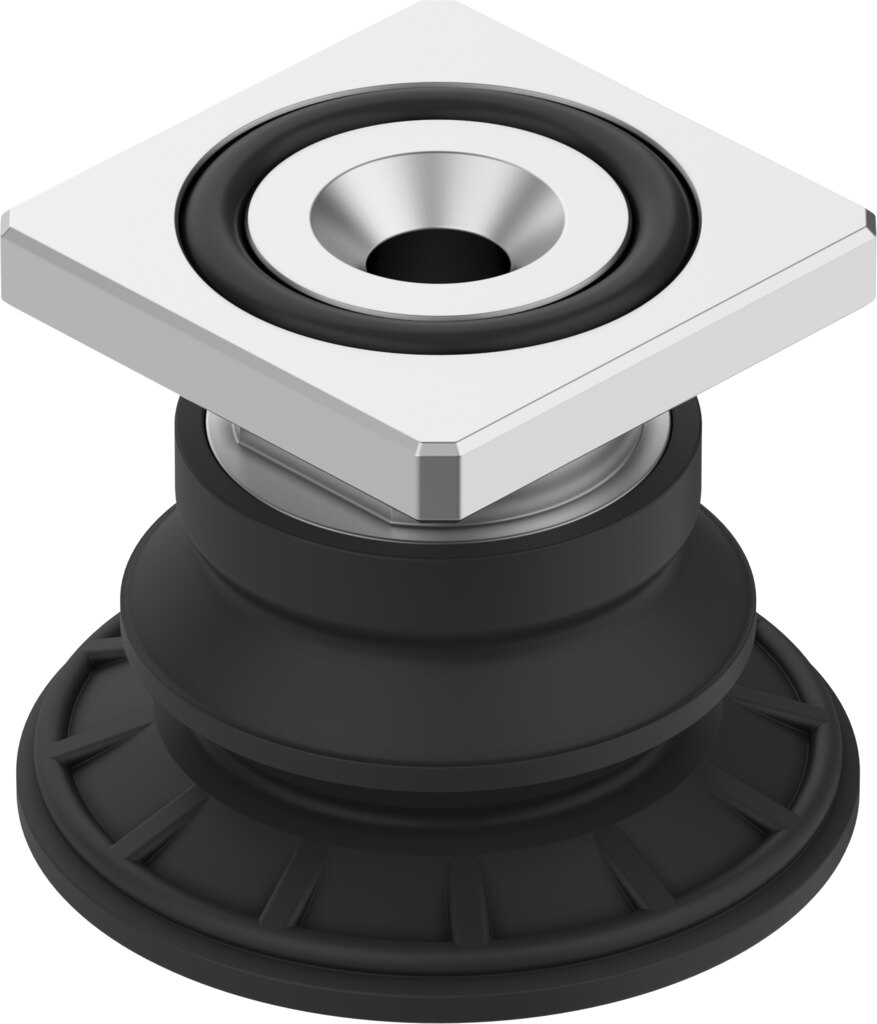

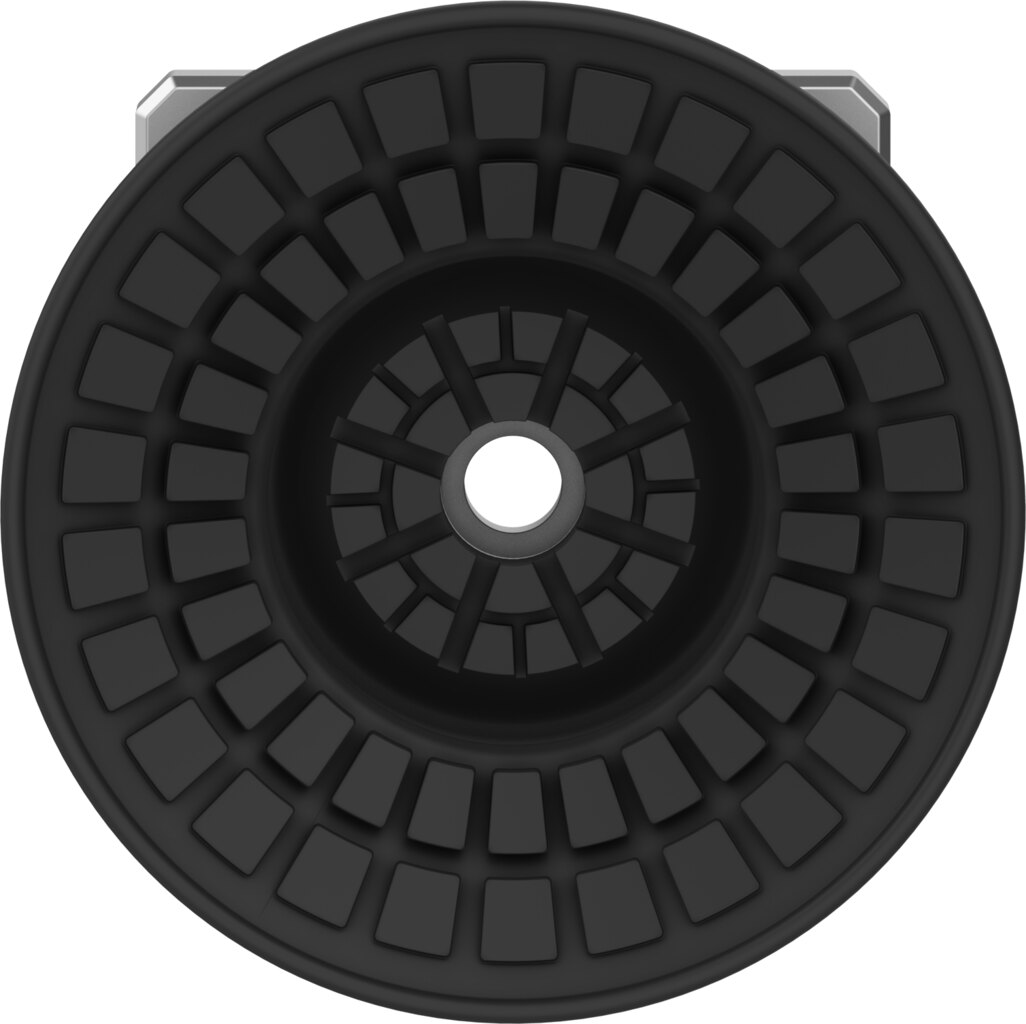

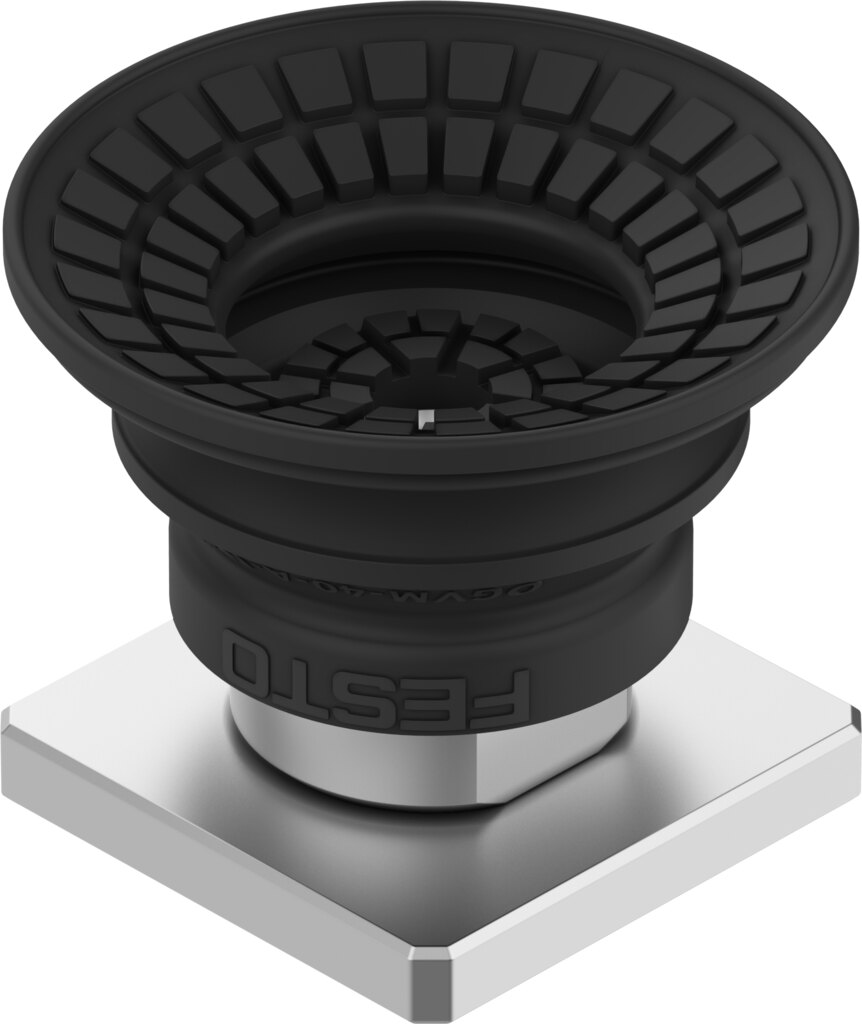

Round bellows vacuum suction cup Ø 40 mm NBR with rectangular adapter OGVM-40-A-N-RA - Festo 8213233

Festo ✓ Original product Brand new

The Festo OGVM-40-A-N-RA vacuum suction cup grips workpieces securely with 60 N of holding force at -0.6 bar nominal operating pressure. Round bellows design made of NBR. The 1.5-convolution bellows compensates 10 mm in height and touches down gently.

Net
€50.65
excl. VAT
Item FES-8213233
Manufacturer no. OGVM-40-A-N-RA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo OGVM-40-A-N-RA vacuum suction cup grips workpieces securely with 60 N of holding force at -0.6 bar nominal operating pressure.

Why choose it

  • Holding force of 60 N at a nominal operating pressure of -0.6 bar
  • The 1.5-convolution bellows compensates 10 mm in height and touches down gently
  • Suction cup material NBR with Shore hardness 60 +/-5
  • Takes up 62 N of lateral force at nominal operating pressure
  • Rectangular adapter RA for positive-locking mounting in the holder

Areas of use

The bellows works on curved, inclined or varying-height workpieces and suits packaging and moulded parts.

Technical data

TypeOGVM-40-A-N-RA
Festo part number8213233
Height compensator for suction cup10 mm
Minimum workpiece radius30 mm
Nominal size4 mm
Suction cup diameter40 mm
Suction cup volume7.8 cm³
Position of connectionOn top
Mounting positionAny
Suction cup shapeRound, bellows with 1.5 convolutions
Operating pressure-0.95 to 0 bar
Nominal operating pressure-0.6 bar
Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-A1/A2-L
Ambient temperature-20 to 80 °C
Holding force at nominal operating pressure60 N
Lateral force at nominal operating pressure62 N
Product weight29 g
Type of mountingVia vacuum port
Vacuum connectionRectangular adapter RA
ColourBlack
Shore hardness60 +/-5
Material screwed plugWrought aluminium alloy
Note on materialsRoHS compliant
Material suction cupNBR
Weight0.031 kg
ManufacturerFesto
Hersteller-NrOGVM-40-A-N-RA
EAN4052568790578
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNBR
Nominal size DN [mm]4
Diameter [mm]40
MediumAir
Temperaturbereich-20-80 °C
Temperature (max.)80
