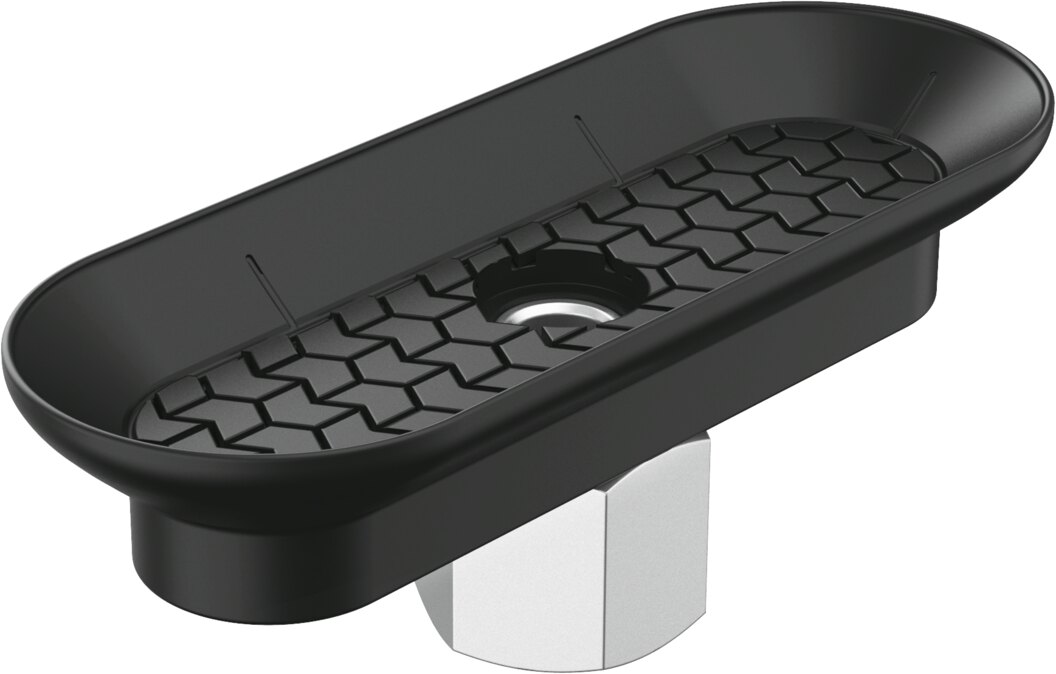

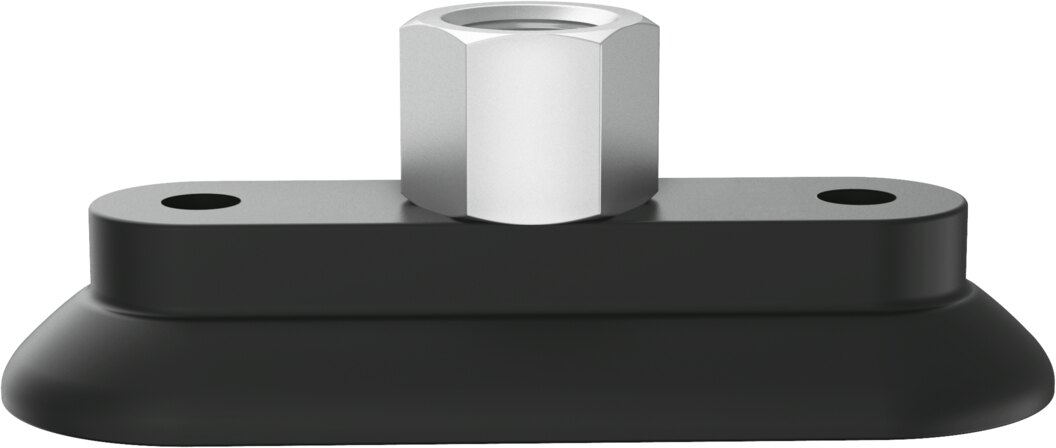

Oval bell-shaped vacuum suction cup 30x80 mm NBR G1/4 OGVM-30X80-GV-N-G14F - Festo 8073863

Festo ✓ Original product Brand new

With 120 N of holding force at -0.6 bar, the Festo OGVM-30X80-GV-N-G14F vacuum suction cup (30x80 mm) holds parts reliably during handling. Oval bell-shaped design made of NBR. Bell shape for curved workpieces from a workpiece radius of 20 mm. Suction cup material NBR with Shore hardness 60 +/-5.

Net
€56.04
excl. VAT
Item FES-8073863
Manufacturer no. OGVM-30X80-GV-N-G14F
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 120 N of holding force at -0.6 bar, the Festo OGVM-30X80-GV-N-G14F vacuum suction cup (30x80 mm) holds parts reliably during handling.

Key benefits

  • 120 N holding force at -0.6 bar nominal operating pressure
  • Bell shape for curved workpieces from a workpiece radius of 20 mm
  • Suction cup material NBR with Shore hardness 60 +/-5
  • Takes up 201 N of lateral force at nominal operating pressure
  • Vacuum connection female thread G1/4 on top, mounted directly via the port

Typical applications

The bell shape is used on curved parts where a flat cup would not seal properly.

Technical data

TypeOGVM-30X80-GV-N-G14F
Festo part number8073863
Height compensator for suction cup6 mm
Minimum workpiece radius20 mm
Nominal size6 mm
Suction cup size30x80 mm
Suction cup volume10 cm³
Position of connectionOn top
Mounting positionAny
Suction cup shapeOval, bell-shaped
Operating pressure-0.95 to 0 bar
Nominal operating pressure-0.6 bar
Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-A1-L
Ambient temperature-20 to 80 °C
Holding force at nominal operating pressure120 N
Vertical lateral force at nominal operating pressure201 N
Product weight26 g
Type of mountingVia vacuum port
Vacuum connectionFemale thread G1/4
ColourBlack
Shore hardness60 +/-5
Material screwed plugWrought aluminium alloy
Note on materialsRoHS compliant
Material suction cupNBR
Weight0.028 kg
ManufacturerFesto
Hersteller-NrOGVM-30X80-GV-N-G14F
EAN4052568301002
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNBR
ThreadG 1/4 IG
Nominal size DN [mm]6
MediumAir
Thread typeInternal thread
Pneumatic connectionG1/4 IG
Temperaturbereich-20-80 °C
Temperature (max.)80
