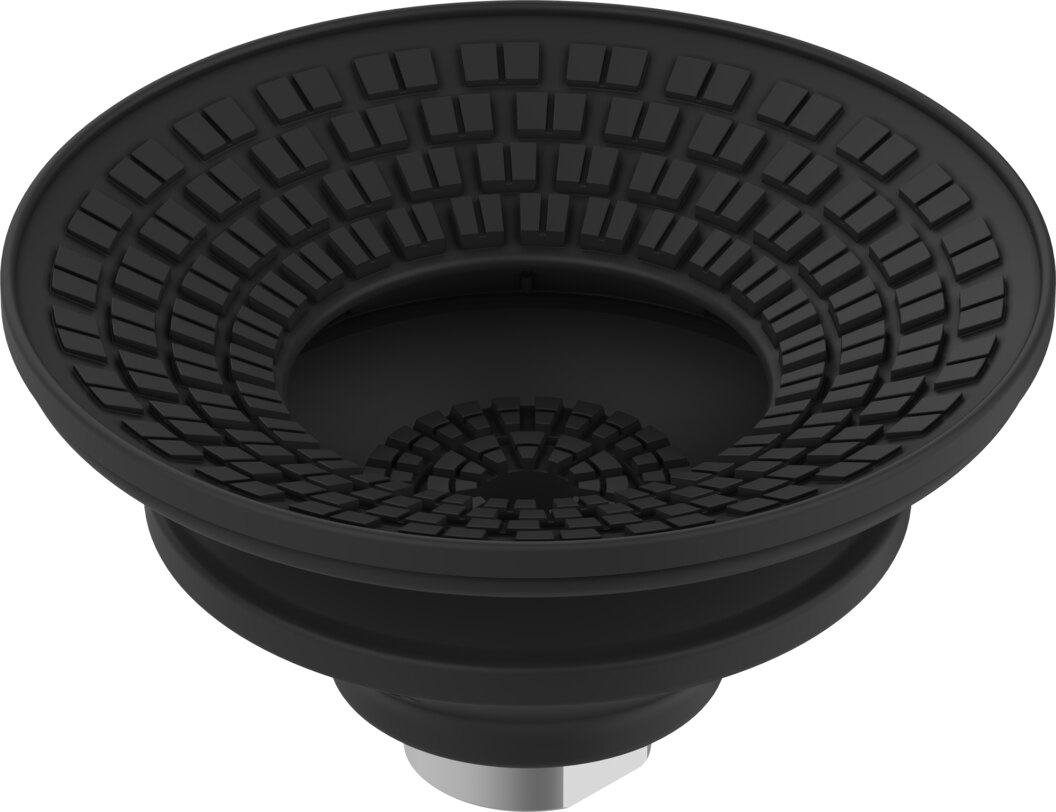

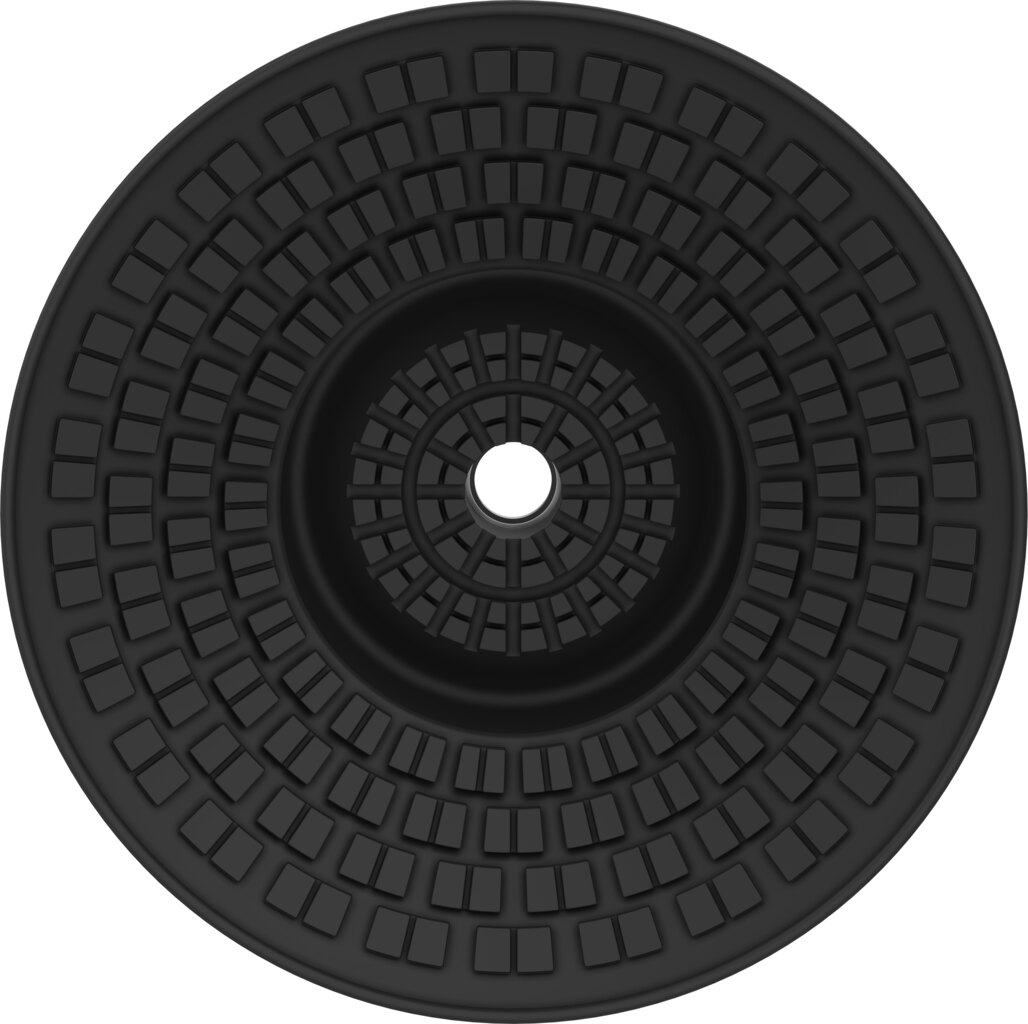

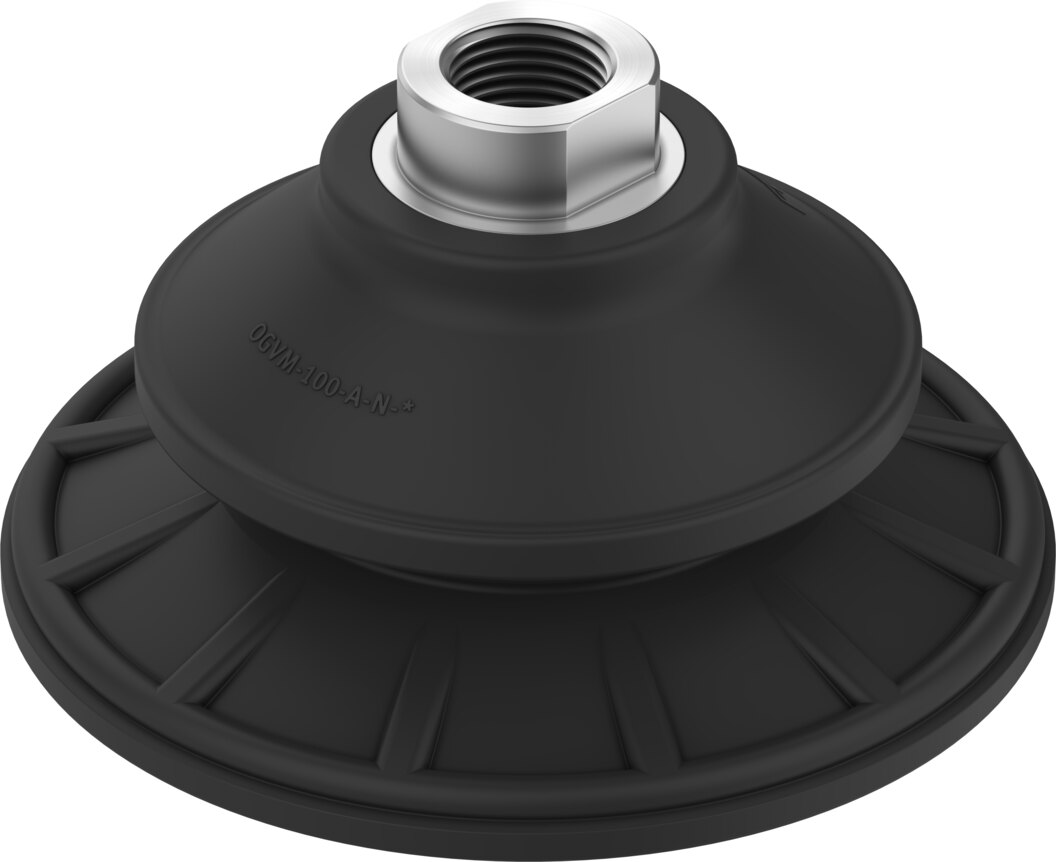

Round bellows vacuum suction cup Ø 100 mm NBR G3/8 OGVM-100-A-N-G38F - Festo 8211029

Festo ✓ Original product Brand new

With 379 N of holding force at -0.6 bar, the Festo OGVM-100-A-N-G38F vacuum suction cup (Ø 100 mm) holds parts reliably during handling. Round bellows design made of NBR. The 1.5-convolution bellows compensates 26 mm in height and touches down gently.

Net
€45.13
excl. VAT
Item FES-8211029
Manufacturer no. OGVM-100-A-N-G38F
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 379 N of holding force at -0.6 bar, the Festo OGVM-100-A-N-G38F vacuum suction cup (Ø 100 mm) holds parts reliably during handling.

Why choose it

  • 379 N holding force at -0.6 bar nominal operating pressure
  • The 1.5-convolution bellows compensates 26 mm in height and touches down gently
  • Suction cup material NBR with Shore hardness 60 +/-5
  • Lateral force of 346 N at nominal operating pressure, relevant for fast sideways moves
  • Vacuum connection female thread G3/8 on top, mounted directly via the port

Areas of use

Typical uses are parts with height offsets or slight curvature, such as cartons, bags or plastic mouldings.

Technical data

TypeOGVM-100-A-N-G38F
Festo part number8211029
Height compensator for suction cup26 mm
Minimum workpiece radius90 mm
Nominal size8 mm
Suction cup diameter100 mm
Suction cup volume115 cm³
Position of connectionOn top
Mounting positionAny
Suction cup shapeRound, bellows with 1.5 convolutions
Operating pressure-0.95 to 0 bar
Nominal operating pressure-0.6 bar
Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-A1/A2-L
Ambient temperature-20 to 80 °C
Holding force at nominal operating pressure379 N
Lateral force at nominal operating pressure346 N
Product weight104 g
Type of mountingVia vacuum port
Vacuum connectionFemale thread G3/8
ColourBlack
Shore hardness60 +/-5
Material screwed plugWrought aluminium alloy
Note on materialsRoHS compliant
Material suction cupNBR
Weight0.11 kg
ManufacturerFesto
Hersteller-NrOGVM-100-A-N-G38F
EAN4052568827793
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNBR
ThreadG 3/8 IG
Nominal size DN [mm]8
Diameter [mm]100
MediumAir
Thread typeInternal thread
Pneumatic connectionG3/8 IG
Temperaturbereich-20-80 °C
Temperature (max.)80
