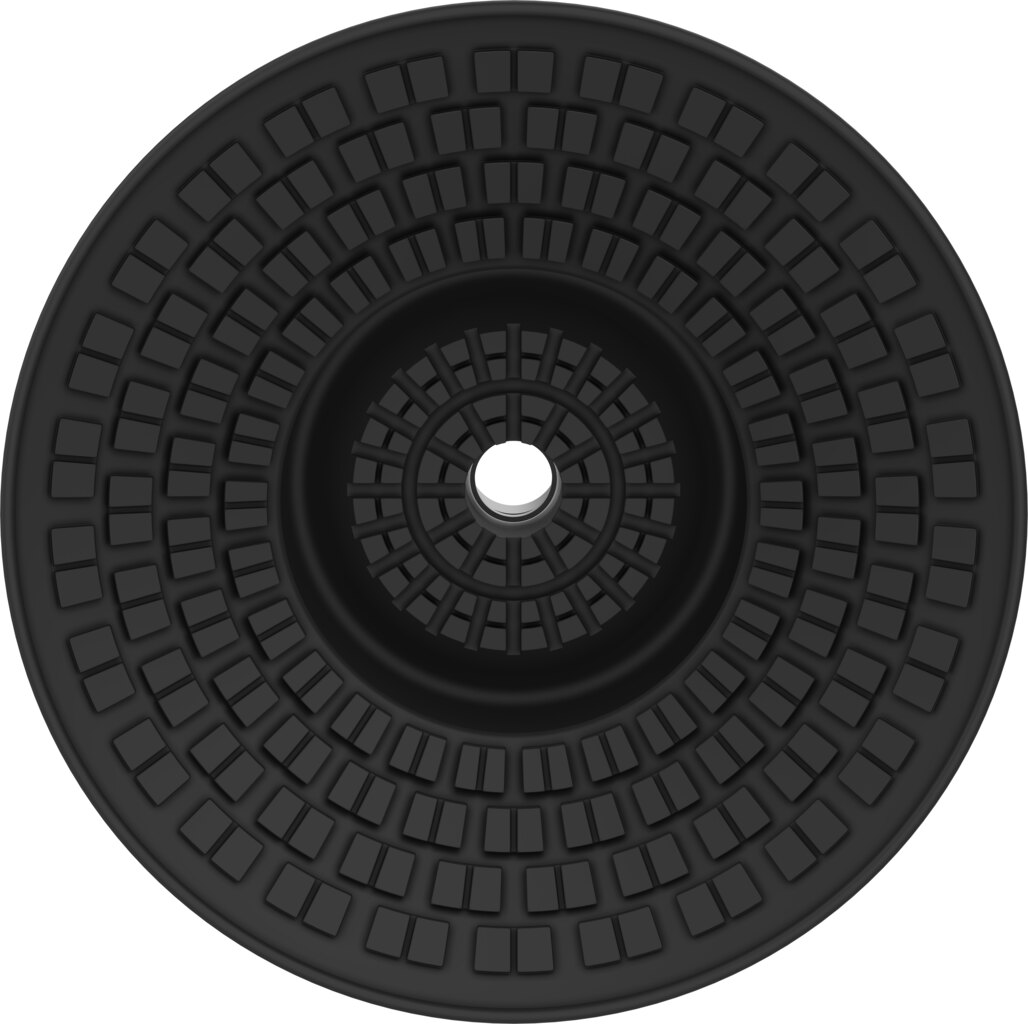

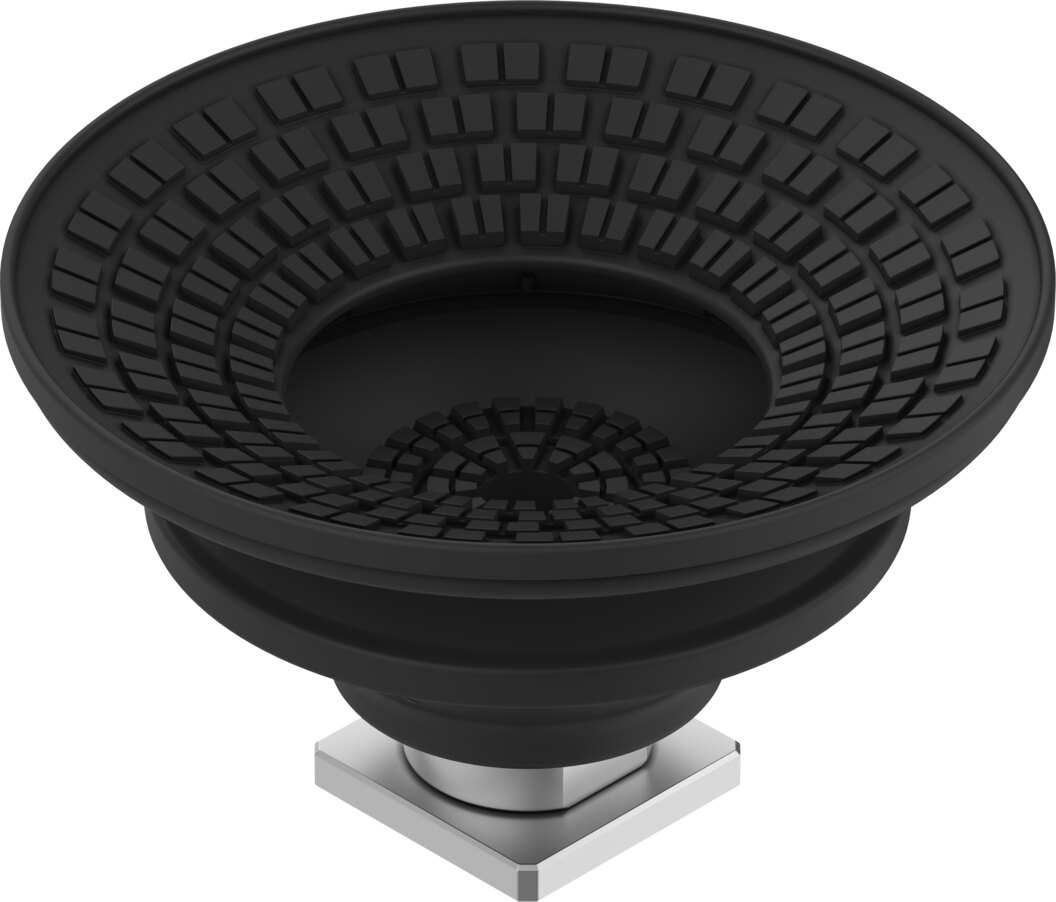

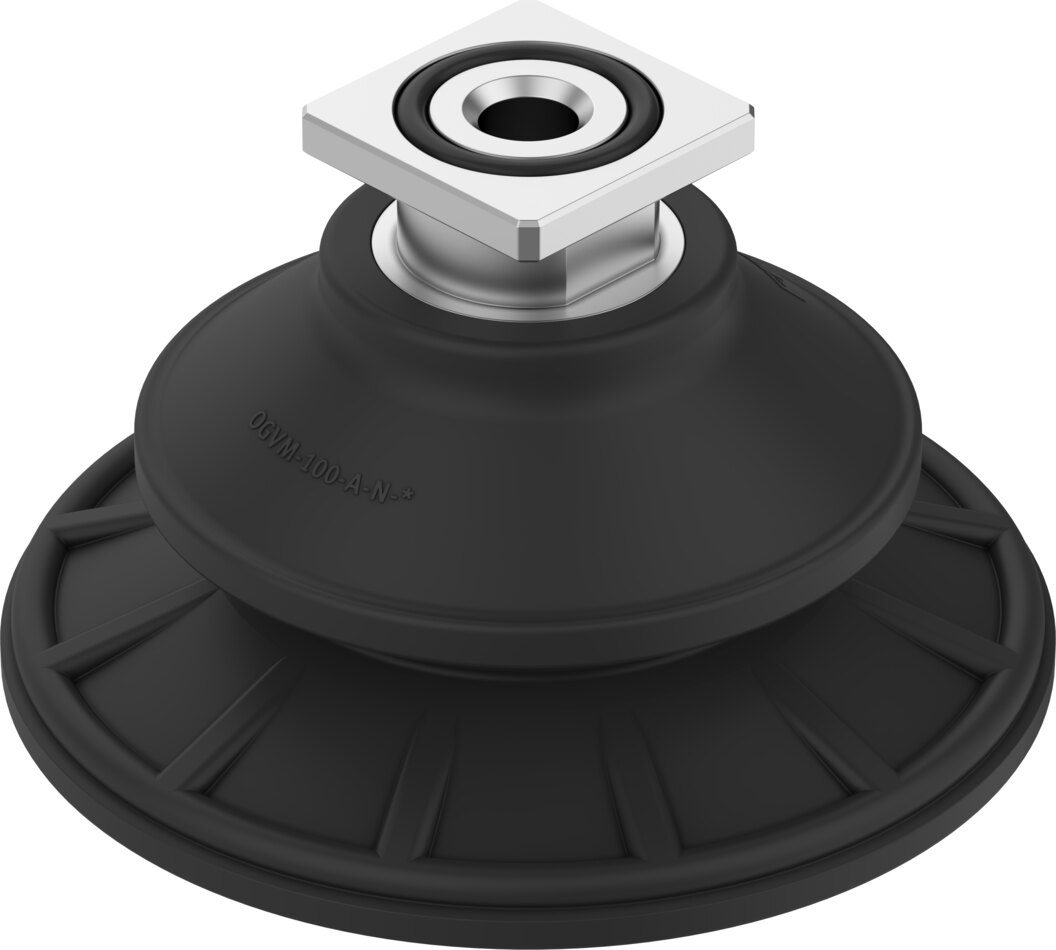

Round bellows vacuum suction cup Ø 100 mm NBR with rectangular adapter OGVM-100-A-N-RA - Festo 8213237

Festo ✓ Original product Brand new

The Festo OGVM-100-A-N-RA vacuum suction cup grips workpieces securely with 379 N of holding force at -0.6 bar nominal operating pressure. Round bellows design made of NBR. The 1.5-convolution bellows compensates 26 mm in height and touches down gently. NBR suction cup, Shore hardness 60 +/-5.

Net
€60.72
excl. VAT
Item FES-8213237
Manufacturer no. OGVM-100-A-N-RA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo OGVM-100-A-N-RA vacuum suction cup grips workpieces securely with 379 N of holding force at -0.6 bar nominal operating pressure.

Benefits

  • 379 N holding force at -0.6 bar nominal operating pressure
  • The 1.5-convolution bellows compensates 26 mm in height and touches down gently
  • NBR suction cup, Shore hardness 60 +/-5
  • Takes up 346 N of lateral force at nominal operating pressure
  • Rectangular adapter RA for positive-locking mounting in the holder

Areas of use

Typical uses are parts with height offsets or slight curvature, such as cartons, bags or plastic mouldings.

Technical data

TypeOGVM-100-A-N-RA
Festo part number8213237
Height compensator for suction cup26 mm
Minimum workpiece radius90 mm
Nominal size8 mm
Suction cup diameter100 mm
Suction cup volume115 cm³
Position of connectionOn top
Mounting positionAny
Suction cup shapeRound, bellows with 1.5 convolutions
Operating pressure-0.95 to 0 bar
Nominal operating pressure-0.6 bar
Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-A1/A2-L
Ambient temperature-20 to 80 °C
Holding force at nominal operating pressure379 N
Lateral force at nominal operating pressure346 N
Product weight116 g
Type of mountingVia vacuum port
Vacuum connectionRectangular adapter RA
ColourBlack
Shore hardness60 +/-5
Material screwed plugWrought aluminium alloy
Note on materialsRoHS compliant
Material suction cupNBR
Weight0.12 kg
ManufacturerFesto
Hersteller-NrOGVM-100-A-N-RA
EAN4052568790615
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNBR
Nominal size DN [mm]8
Diameter [mm]100
MediumAir
Temperaturbereich-20-80 °C
Temperature (max.)80
