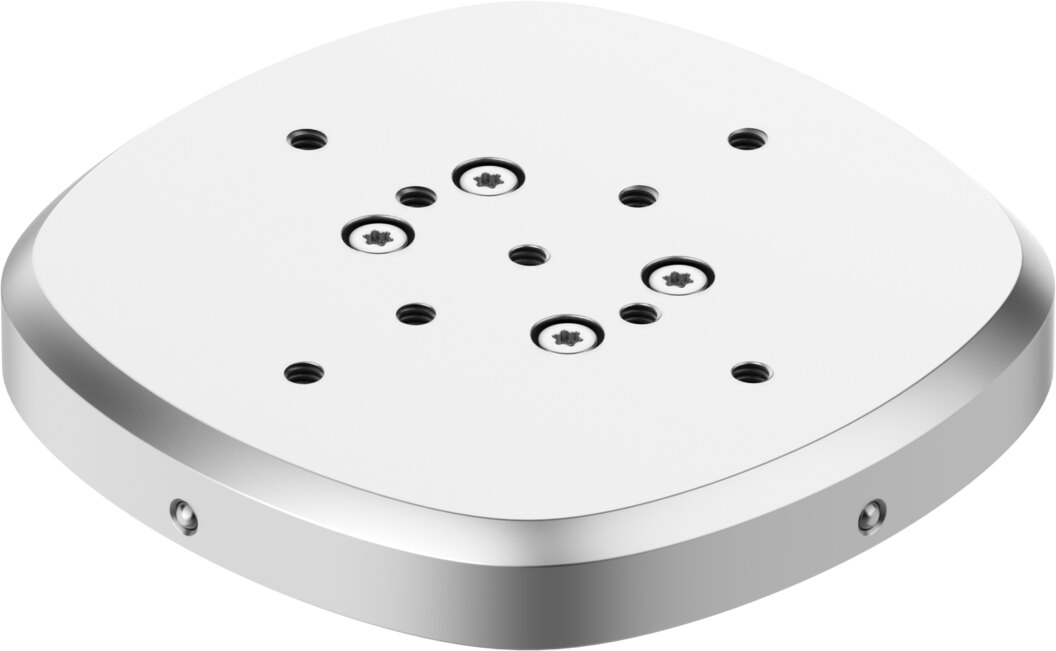

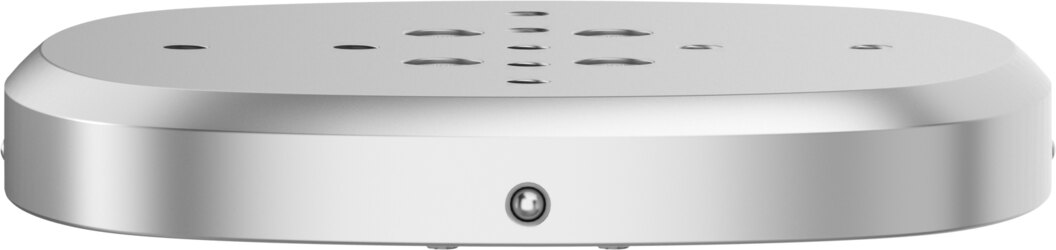

Adapter plate for suction cups 9x M4 OAMC-PA-M4-9 - Festo 8205197

Festo ✓ Original product Brand new

The Festo OAMC-PA-M4-9 adapter plate carries 9 suction cups with female thread M4 on a common plate. Material anodised wrought aluminium alloy. Tightening torque up to 1 Nm. This creates an area gripper from several suction cups for larger or flexible workpieces.

Net
€96.60
excl. VAT
Item FES-8205197
Manufacturer no. OAMC-PA-M4-9
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo OAMC-PA-M4-9 adapter plate carries 9 suction cups with female thread M4 on a common plate.

Why choose it

  • 9 suction cup mounts with female thread M4
  • Made of anodised wrought aluminium alloy
  • Tightening torque up to 1 Nm
  • LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Corrosion resistance class CRC 2 - Moderate corrosion stress

Applications

This creates an area gripper from several suction cups for larger or flexible workpieces. Type of mounting: direct mounting via thread.

Technical data

TypeOAMC-PA-M4-9
Festo part number8205197
Material mounting bracketAnodised aluminium
Mounting positionAny
DesignSub-base
Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Maximum tightening torque1 Nm
Product weight215 g
Type of mountingDirect mounting via thread
Suction cup mountingFemale thread M4
Suction cup mounting, quantity9
Note on materialsRoHS compliant
Material sealsNBR
Material plateAnodised wrought aluminium alloy
Weight0.23 kg
ManufacturerFesto
Hersteller-NrOAMC-PA-M4-9
EAN4052568773786
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Seal materialNBR
MediumCompressed air
