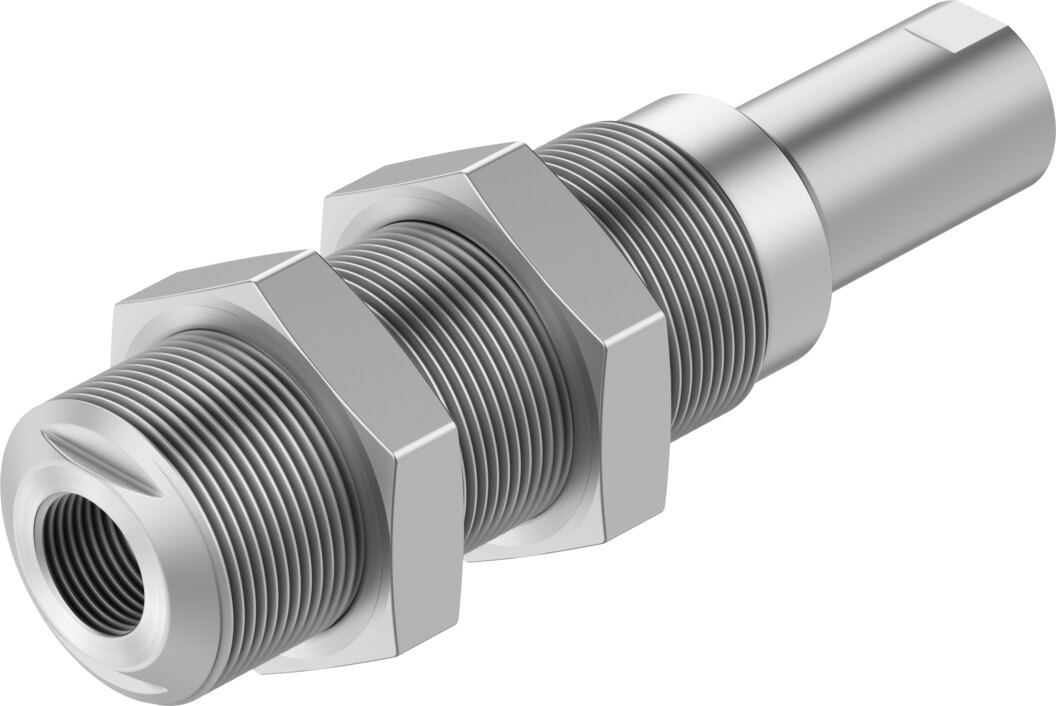

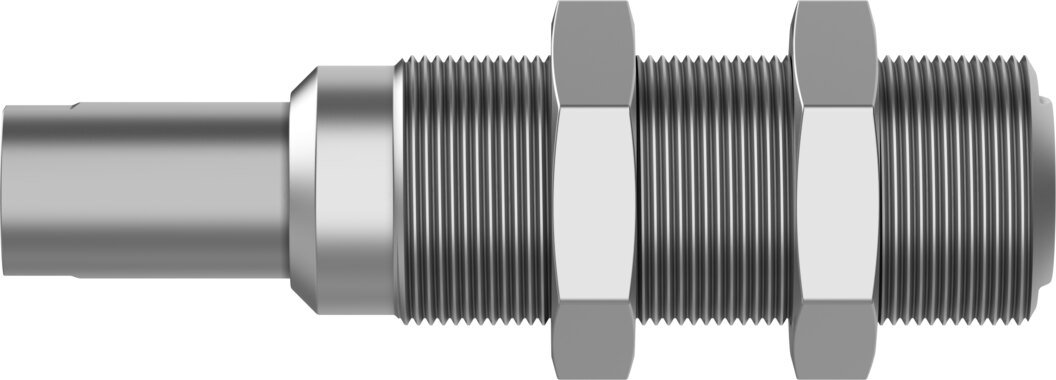

Length compensator VAL-1/4-20-F1A - Festo 8214724
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Height compensator for suction-cup holder | 20 mm |
|---|---|
| Mounting position | Any |
| Design | Vacuum port on top |
| Operating pressure | -0.95 ... 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature | -10 ... 60 °C |
| Product weight | 118 g |
| Type of mounting | With male thread M26x1.5 |
| Suction cup mounting | Female thread G1/4 |
| Vacuum connection | Female thread G1/4 |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material housing | Aluminium |
| Material retaining bracket | Aluminium, POM, High-alloy stainless steel |
| Weight | 0.13 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VAL-1/4-20-F1A |
| EAN | 4052568653620 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
