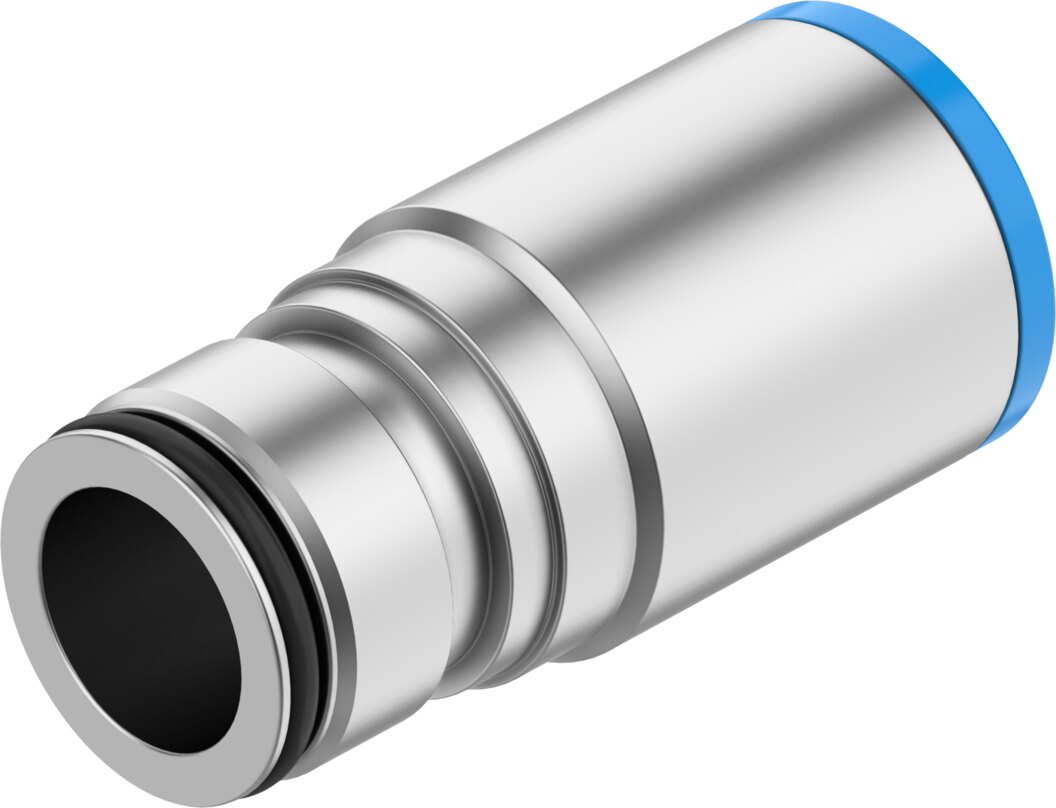

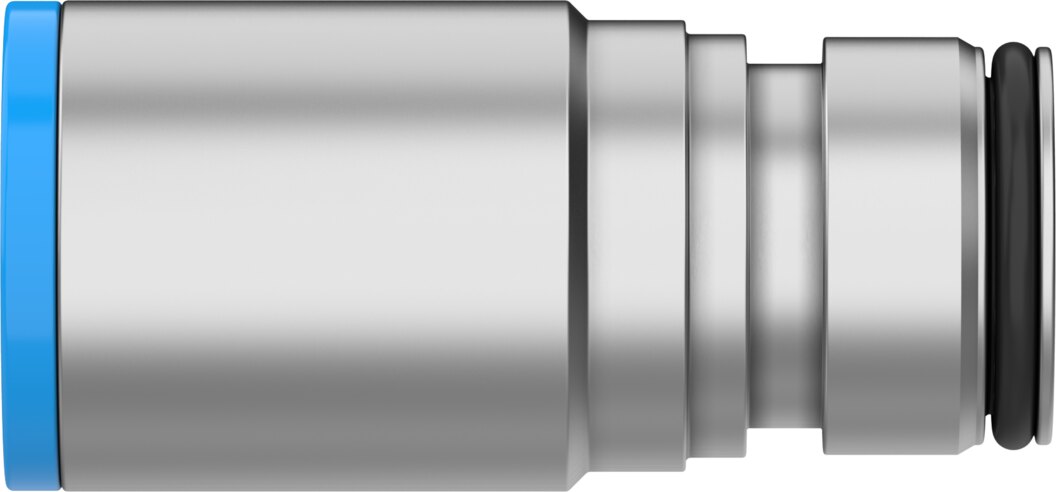

Cartridge 15 mm for tubing OD 1/2" NPQX-D-PC15-T12-P2 - Festo 8225234
The cartridge NPQX-D-PC15-T12-P2 turns a 15 mm cartridge seat into a push-in port for tubing with an OD of 1/2". Operating limits: -0.95 to 10 bar and -5 to 60 °C. The tube is pushed in and released again via the release ring.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The cartridge NPQX-D-PC15-T12-P2 turns a 15 mm cartridge seat into a push-in port for tubing with an OD of 1/2". Operating limits: -0.95 to 10 bar and -5 to 60 °C.
Benefits
- From vacuum up to 10 bar operating pressure -0.95 to 10 bar across the full temperature range
- Tubing seal made of HNBR
- LABS (PWIS) conformity to VDMA24364-C1-L
- Nominal width 10 mm
- Ambient temperature -5 to 60 °C
- Push-pull principle push the tube in, press the blue release ring to remove it
Applications
NPQX-D-PC15-T12-P2 is intended for valves, valve terminals and devices with a cartridge seat. The NPQX-D-PC15-T12-P2 works with compressed air to ISO 8573-1:2010 [7:4:4], inert gases, lubricated operation possible..
Technical data
| Feature | Value |
|---|---|
| Type | NPQX-D-PC15-T12-P2 |
| Festo part number | 8225234 |
| Size | Standard |
| Nominal width | 10 mm |
| Tubing insertion depth | 25.4 mm |
| Seal type on screw-in stud | O-ring |
| Mounting position | Any |
| Design | Straight |
| Construction | Push-pull principle |
| Operating pressure | -0.95 to 10 bar |
| Operating pressure, full temperature range | -0.95 to 10 bar |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4], inert gases |
| Note on operating and pilot medium | Lubricated operation possible (required for further operation) |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Ambient temperature | -5 to 60 °C |
| Product weight | 20.8 g |
| Mounting type | With retaining clip |
| Pneumatic connection 1 | Cartridge 15 mm |
| Pneumatic connection 2 | For tubing OD 1/2" |
| Release ring colour | Blue |
| Material note | RoHS compliant |
| Housing material | High-alloy steel |
| Release ring material | Reinforced PA |
| O-ring material | HNBR |
| Tubing seal material | HNBR |
| Tubing clamp segment material | High-alloy stainless steel |
| Weight | 0.023 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NPQX-D-PC15-T12-P2 |
| EAN | 4052568789923 |
| Zolltarifnummer | 73072980 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Bauform | gerade Form |
| Nominal size DN [mm] | 10 |
| Size BG | Standard |
| Seal material | HNBR |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | -5-60 °C |
| Temperature (max.) | 60 |
