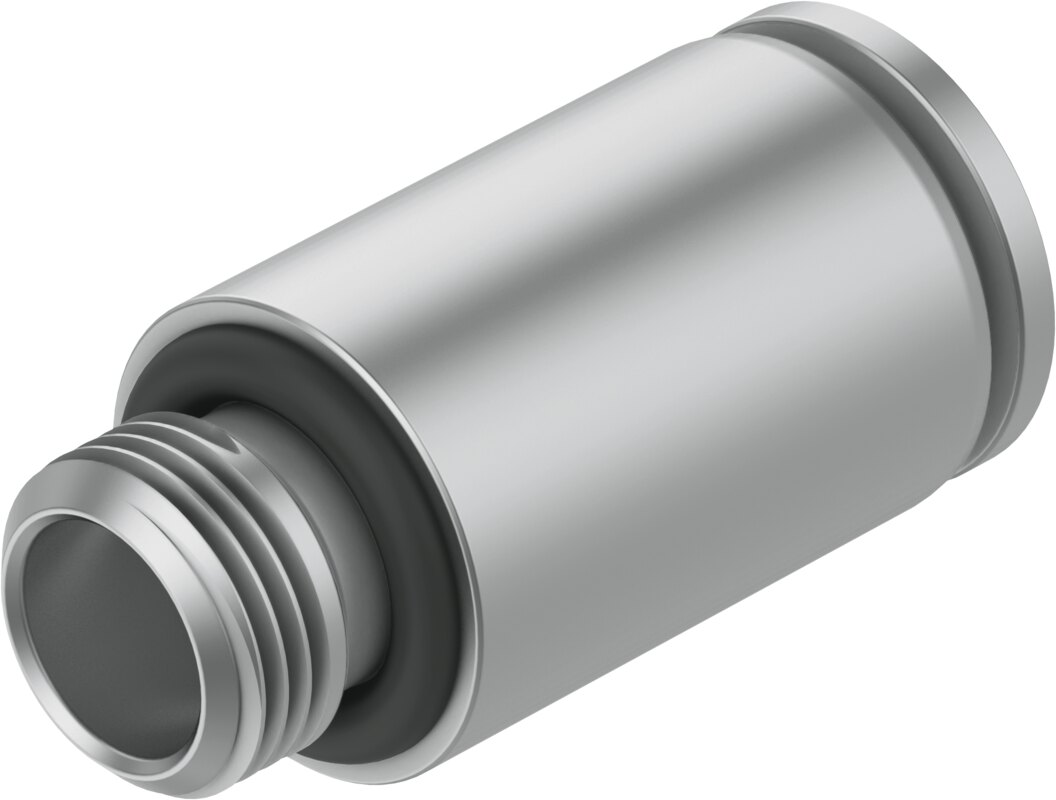

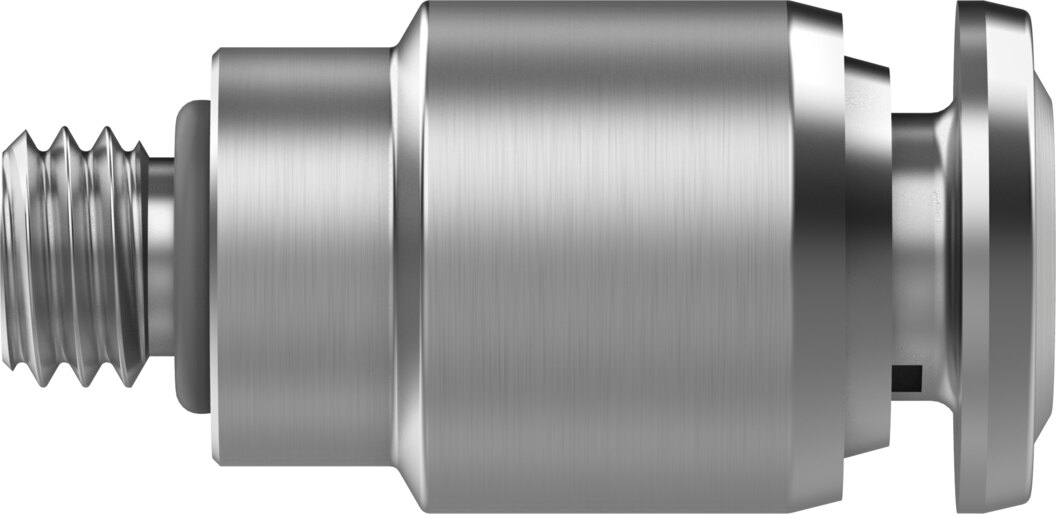

Straight push-in fitting M5 to tubing OD 6 mm, stainless steel NPQR-DK-M5-Q6 - Festo 8085659

Festo ✓ Original product Brand new

With the NPQR-DK-M5-Q6 push-in fitting, tubing with an OD of 6 mm is connected to a M5 thread without tools. The NPQR-DK-M5-Q6 is rated for -0.95 to 16 bar operating pressure and -20 to 150 °C ambient temperature. Cleanroom suitable to class 4 of ISO 14644-1 and LABS (PWIS) compliant.

Net
€15.01
excl. VAT
Item FES-8085659
Manufacturer no. NPQR-DK-M5-Q6
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With the NPQR-DK-M5-Q6 push-in fitting, tubing with an OD of 6 mm is connected to a M5 thread without tools. The NPQR-DK-M5-Q6 is rated for -0.95 to 16 bar operating pressure and -20 to 150 °C ambient temperature.

Benefits

  • From vacuum up to 16 bar operating pressure -0.95 to 16 bar across the full temperature range
  • Sealing ring on the screw-in stud made of FPM
  • LABS (PWIS) conformity to VDMA24364-B2-L
  • Cleanroom suitable class 4 to ISO 14644-1
  • Battery production reduced Cu/Zn/Ni content to F1a
  • Food sector NSF/ANSI 169, see declaration of conformity

Applications

Typical locations for the NPQR-DK-M5-Q6 are valves, cylinders and service units with a M5 port. The NPQR-DK-M5-Q6 works with compressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free), lubricated operation possible.

Technical data

FeatureValue
TypeNPQR-DK-M5-Q6
Festo part number8085659
SizeStandard
Nominal width2.6 mm
Tubing insertion depth13.5 mm
Seal type on screw-in studSealing ring
Mounting positionAny
DesignStraight
ConstructionPush-pull principle
Operating pressure, full temperature range-0.95 to 16 bar
Note on operating pressureWater: max. 7 bar at 0 to 80 °C
Certificate issuing bodyNSF C0556009
Operating mediumcompressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC4 - very high corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni content (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 4 to ISO 14644-1
Food suitabilitySee declaration of conformity, NSF/ANSI 169
Ambient temperature-20 to 150 °C
Nominal tightening torque1 Nm
Tolerance of nominal tightening torque± 20 %
Product weight5.7 g
Mounting typeInternal hex A/F 2.5
Pneumatic connection 1Male thread M5
Pneumatic connection 2For tubing OD 6 mm
Release ring colourSilver
Material noteRoHS compliant
Housing materialHigh-alloy stainless steel
Thread seal materialFPM
Retaining ring materialHigh-alloy stainless steel
Release ring materialHigh-alloy stainless steel
Tubing seal materialFPM
Tubing clamp segment materialHigh-alloy stainless steel
Support ring materialPPSU
Weight0.008 kg
ManufacturerFesto
Hersteller-NrNPQR-DK-M5-Q6
EAN4052568451011
Zolltarifnummer73072910
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel
Bauformgerade Form
ThreadM5
For hose OD [mm]6
Nominal size DN [mm]2,6
Size BGStandard
Seal materialFPM
MediumCompressed air
Thread typeExternal thread
Schlüsselweite [mm]2,5
Betriebsdruck max [bar]16
Temperaturbereich-20-150 °C
Temperature (max.)150
