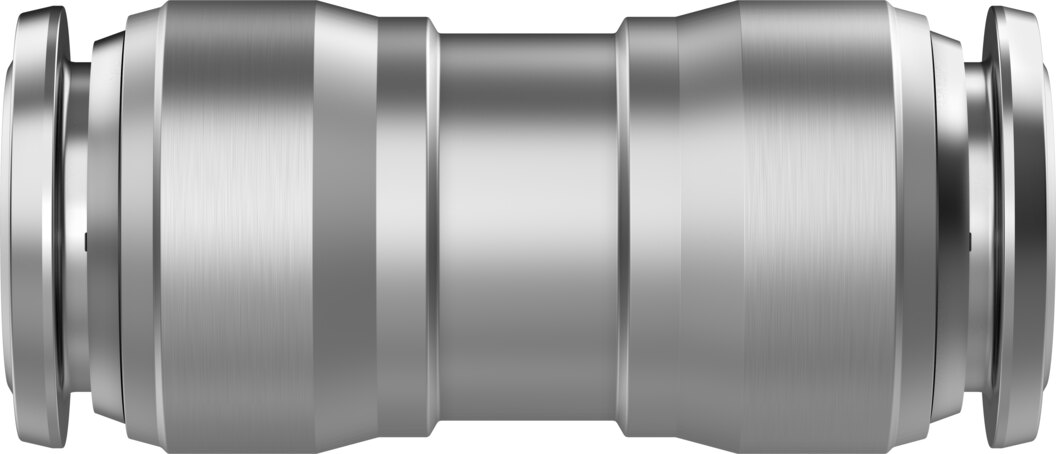

Straight push-in connector for tubing OD 12 mm, stainless steel NPQR-D-Q12-E - Festo 8085701

Festo ✓ Original product Brand new

The straight push-in connector NPQR-D-Q12-E joins two tubes with an OD of 12 mm without tools. The NPQR-D-Q12-E is specified for -0.95 to 16 bar operating pressure and -20 to 150 °C ambient temperature. Cleanroom suitable to class 4 of ISO 14644-1 and LABS (PWIS) compliant.

Net
€53.96
excl. VAT
Item FES-8085701
Manufacturer no. NPQR-D-Q12-E
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The straight push-in connector NPQR-D-Q12-E joins two tubes with an OD of 12 mm without tools. The NPQR-D-Q12-E is specified for -0.95 to 16 bar operating pressure and -20 to 150 °C ambient temperature.

Benefits

  • From vacuum up to 16 bar operating pressure -0.95 to 16 bar across the full temperature range
  • Battery production reduced Cu/Zn/Ni content to F1a
  • Food sector NSF/ANSI 169, see declaration of conformity
  • Nominal width 11 mm
  • Also for water max. 7 bar at 0 to 80 °C
  • Ambient temperature -20 to 150 °C

Applications

NPQR-D-Q12-E is used to extend and repair tubing lines with an OD of 12 mm. Approved medium for the NPQR-D-Q12-E: compressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free), lubricated operation possible.

Technical data

FeatureValue
TypeNPQR-D-Q12-E
Festo part number8085701
SizeStandard
Nominal width11 mm
Tubing insertion depth22.4 mm
Mounting positionAny
DesignStraight
ConstructionPush-pull principle
Operating pressure, full temperature range-0.95 to 16 bar
Note on operating pressureWater: max. 7 bar at 0 to 80 °C
Certificate issuing bodyNSF C0556009
Operating mediumcompressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC4 - very high corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni content (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 4 to ISO 14644-1
Food suitabilitySee declaration of conformity, NSF/ANSI 169
Ambient temperature-20 to 150 °C
Product weight49.1 g
Pneumatic connection 1For tubing OD 12 mm
Pneumatic connection 2For tubing OD 12 mm
Release ring colourSilver
Material noteRoHS compliant
Housing materialHigh-alloy stainless steel
Retaining ring materialHigh-alloy stainless steel
Release ring materialHigh-alloy stainless steel
Tubing seal materialFPM
Tubing clamp segment materialHigh-alloy stainless steel
Support ring materialPPSU
Weight0.048 kg
ManufacturerFesto
Hersteller-NrNPQR-D-Q12-E
EAN4052568454920
Zolltarifnummer73072980
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel
Bauformgerade Form
For hose OD [mm]12
Nominal size DN [mm]11
Size BGStandard
Seal materialFPM
MediumCompressed air
Betriebsdruck max [bar]16
Temperaturbereich-20-150 °C
Temperature (max.)150
