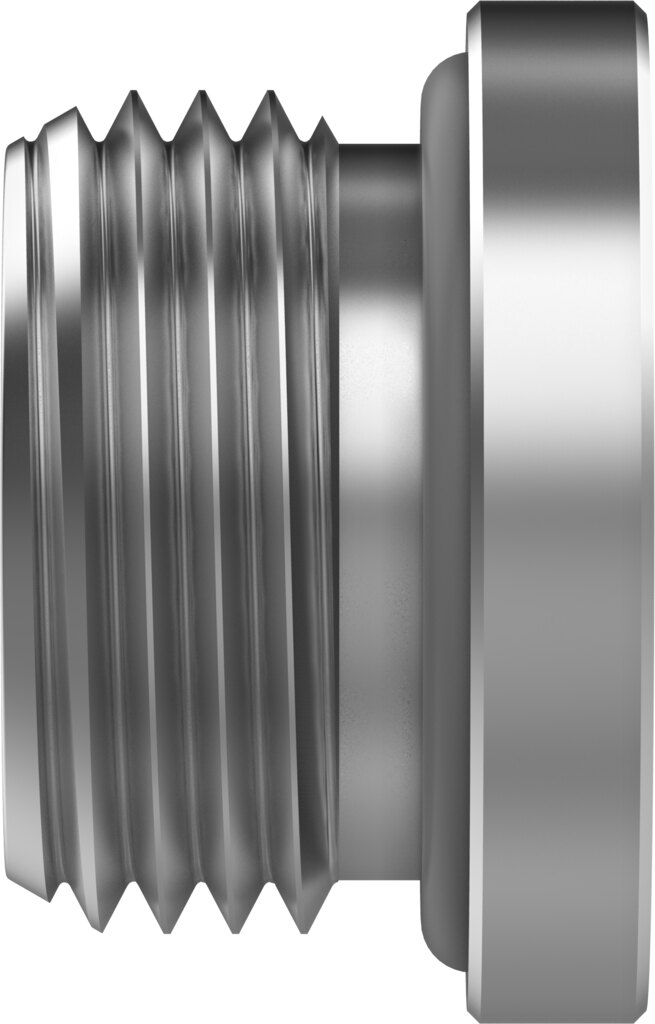

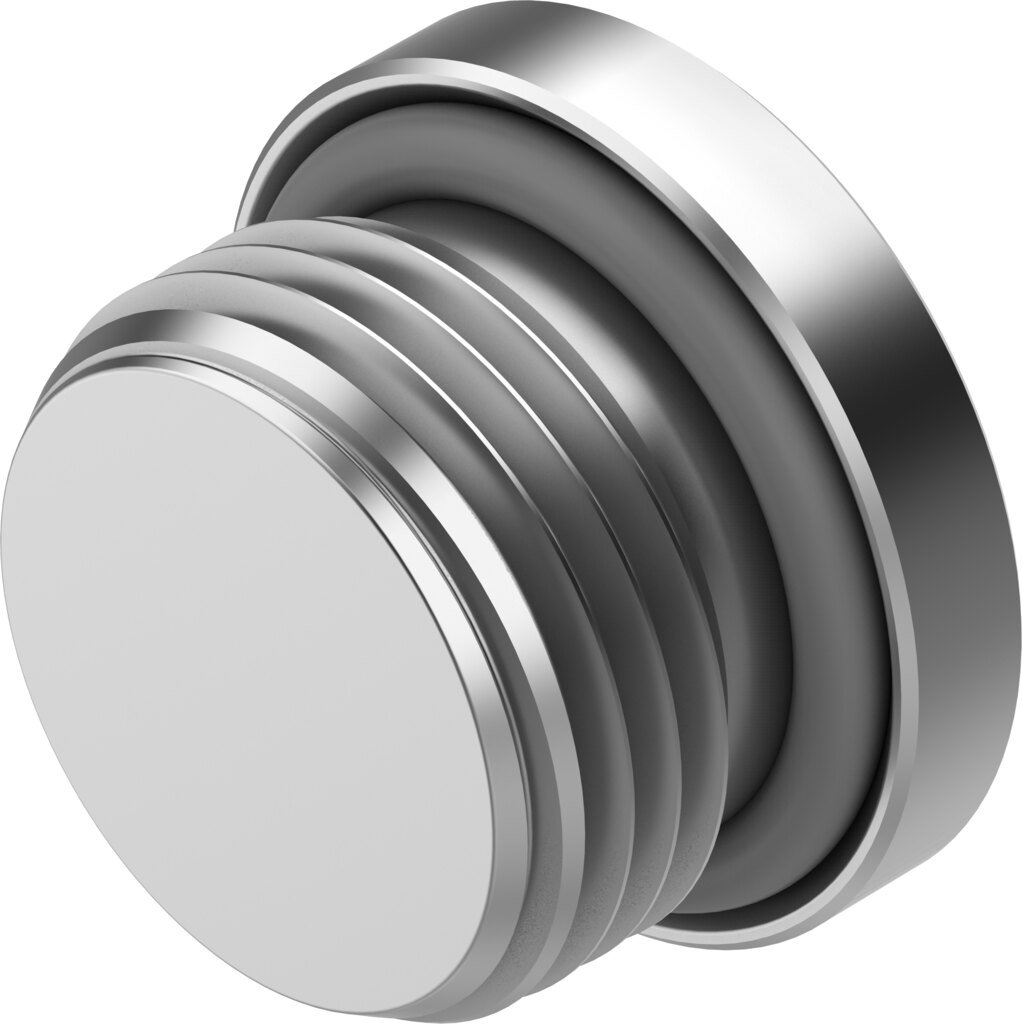

Plug screw with male thread G3/8, stainless steel NPQR-BK-G38 - Festo 8085675
The plug screw NPQR-BK-G38 tightly seals an unused G3/8 threaded port. The NPQR-BK-G38 is specified for -0.95 to 16 bar operating pressure and -20 to 150 °C ambient temperature. The housing is made of high-alloy stainless steel, corrosion resistance class CRC 4.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The plug screw NPQR-BK-G38 tightly seals an unused G3/8 threaded port. The NPQR-BK-G38 is specified for -0.95 to 16 bar operating pressure and -20 to 150 °C ambient temperature.
Benefits
- From vacuum up to 16 bar operating pressure -0.95 to 16 bar across the full temperature range
- Also for water max. 7 bar at 0 to 80 °C
- Ambient temperature -20 to 150 °C
- Housing made of high-alloy stainless steelcorrosion resistance class CRC 4
- Sealing ring on the screw-in stud made of FPM
- LABS (PWIS) conformity to VDMA24364-B2-L
Applications
NPQR-BK-G38 closes spare G3/8 ports on valves, manifolds and actuators. The NPQR-BK-G38 works with compressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free), lubricated operation possible.
Technical data
| Feature | Value |
|---|---|
| Type | NPQR-BK-G38 |
| Festo part number | 8085675 |
| Size | Standard |
| Seal type on screw-in stud | Sealing ring |
| Mounting position | Any |
| Design | Plug screw |
| Operating pressure, full temperature range | -0.95 to 16 bar |
| Note on operating pressure | Water: max. 7 bar at 0 to 80 °C |
| Certificate issuing body | NSF C0556009 |
| Operating medium | compressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free) |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 4 - very high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for Li-ion battery production | Suitable for battery production with reduced Cu/Zn/Ni content (F1a) |
| Cleanroom suitability, measured to ISO 14644-14 | Statically installed element, no meaningful rating possible to ISO 14644-1 |
| Food suitability | See declaration of conformity, NSF/ANSI 169 |
| Ambient temperature | -20 to 150 °C |
| Nominal tightening torque | 9 Nm |
| Tolerance of nominal tightening torque | ± 20 % |
| Product weight | 17 g |
| Mounting type | Internal hex A/F 8 |
| Pneumatic connection 1 | Male thread G3/8 |
| Material note | RoHS compliant |
| Housing material | High-alloy stainless steel |
| Thread seal material | FPM |
| Weight | 0.019 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NPQR-BK-G38 |
| EAN | 4052568451158 |
| Zolltarifnummer | 73072910 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel |
| Thread | G 3/8 |
| Size BG | Standard |
| Medium | Compressed air |
| Thread type | External thread |
| Schlüsselweite [mm] | 8 |
| Betriebsdruck max [bar] | 16 |
| Temperaturbereich | -20-150 °C |
| Temperature (max.) | 150 |
