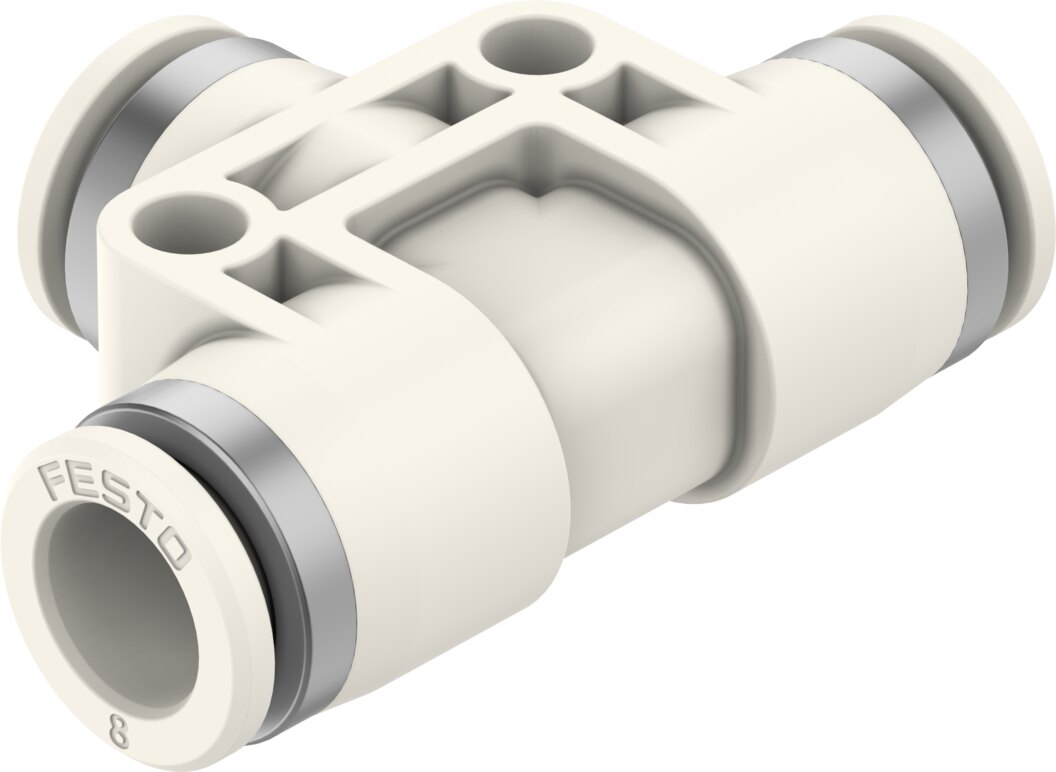

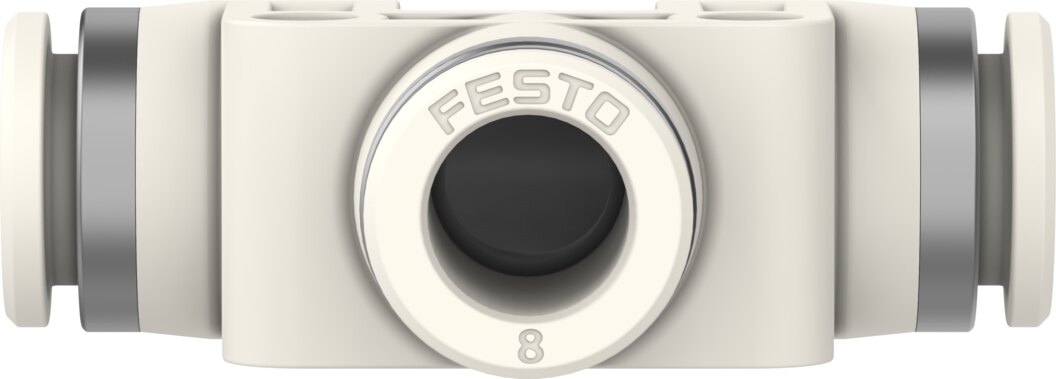

Push-in T-connector for tubing OD 8 mm, PVDF NPQO-T-Q8-E-P10 - Festo 8203328

Festo ✓ Original product Brand new

The push-in T-connector NPQO-T-Q8-E-P10 branches a second outlet off a tubing line with an OD of 8 mm. The NPQO-T-Q8-E-P10 is specified for -0.9 to 3 bar operating pressure and 0 to 60 °C ambient temperature. Suitable for oxygen to ASTM G 93, ISO 15001.

Net
€14.63
excl. VAT
Item FES-8203328
Manufacturer no. NPQO-T-Q8-E-P10
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The push-in T-connector NPQO-T-Q8-E-P10 branches a second outlet off a tubing line with an OD of 8 mm. The NPQO-T-Q8-E-P10 is specified for -0.9 to 3 bar operating pressure and 0 to 60 °C ambient temperature.

Benefits

  • From vacuum up to 3 bar operating pressure -0.9 to 3 bar across the full temperature range
  • Biocompatible to ISO 18562
  • Nominal width 7 mm
  • Up to 16 bar depending on temperature
  • Ambient temperature 0 to 60 °Cmedium temperature 0 to 120 °C
  • Push-pull principle push the tube in, press the white release ring to remove it

Applications

NPQO-T-Q8-E-P10 is used where one line supplies several consumers. The NPQO-T-Q8-E-P10 works with compressed air to ISO 8573-1:2010 [7:4:4], inert gases, carbon dioxide, air, oxygen, nitrogen..

Technical data

FeatureValue
TypeNPQO-T-Q8-E-P10
Festo part number8203328
Nominal width7 mm
Tubing insertion depth17.6 mm
Mounting positionAny
DesignT-shape
ConstructionPush-pull principle
VariantsWith mounting holes
Operating pressure, full temperature range-0.9 to 3 bar
Temperature-dependent operating pressure-0.9 to 16 bar
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4], inert gases, carbon dioxide, air, oxygen, nitrogen
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Food suitabilitySee extended material information
Medium temperature0 to 120 °C
Ambient temperature0 to 60 °C
Biocompatibility to standardISO 18562
Oxygen suitability to standardASTM G 93, ISO 15001
Max. hydrocarbon contamination level550 mg/m²
Product weight15.98 g
Pneumatic connection 1For tubing OD 8 mm
Pneumatic connection 2For tubing OD 8 mm
Release ring colourWhite
Material noteRoHS compliant
Housing materialPVDF
Release ring materialPVDF
O-ring materialFPM
Tubing seal materialFPM
Tubing clamp segment materialHigh-alloy stainless steel
Support ring materialPVDF
Weight0.017 kg
ManufacturerFesto
Hersteller-NrNPQO-T-Q8-E-P10
EAN4052568659608
Zolltarifnummer39174000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPVDF
BauformT-Form
For hose OD [mm]8
Nominal size DN [mm]7
Seal materialFPM
MediumCompressed air
Medientemperatur [°C]0 bis 120
Betriebsdruck max [bar]3
Temperaturbereich0-60 °C
Temperature (max.)60
