Push-in T-fitting G3/8 to tubing OD 10 mm, stainless steel NPQR-T-G38-Q10 - Festo 8085695

Festo ✓ Original product Brand new

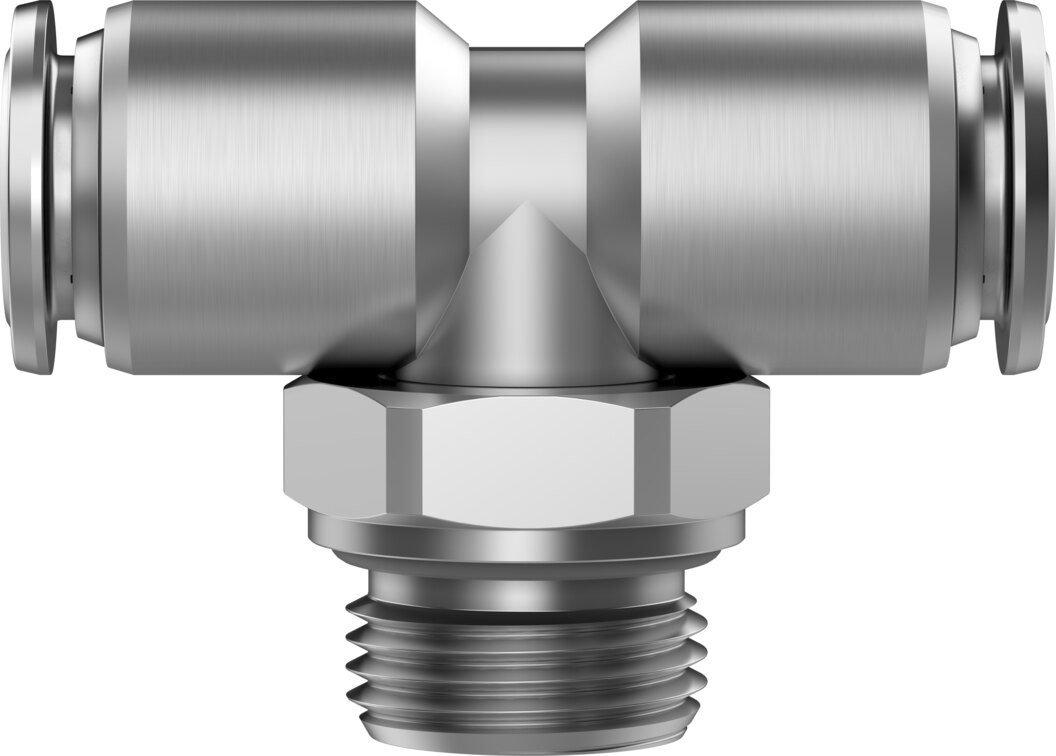

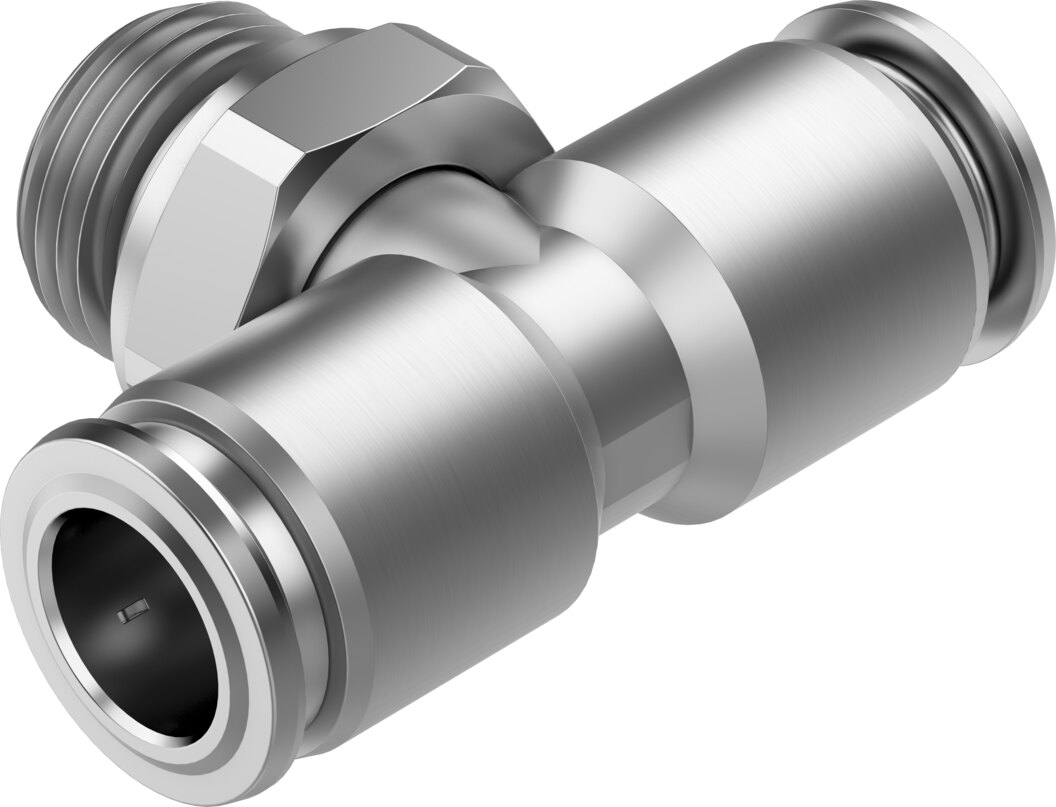

With the push-in T-fitting NPQR-T-G38-Q10, two tubing lines with an OD of 10 mm branch off from one G3/8 port. The NPQR-T-G38-Q10 is rated for -0.95 to 16 bar operating pressure and -20 to 150 °C ambient temperature. Cleanroom suitable to class 4 of ISO 14644-1 and LABS (PWIS) compliant.

Net
€68.66
excl. VAT
Item FES-8085695
Manufacturer no. NPQR-T-G38-Q10
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With the push-in T-fitting NPQR-T-G38-Q10, two tubing lines with an OD of 10 mm branch off from one G3/8 port. The NPQR-T-G38-Q10 is rated for -0.95 to 16 bar operating pressure and -20 to 150 °C ambient temperature.

Benefits

  • From vacuum up to 16 bar operating pressure -0.95 to 16 bar across the full temperature range
  • Food sector NSF/ANSI 169, see declaration of conformity
  • Nominal width 8 mm
  • Nominal tightening torque 9 Nm (± 20 %)
  • Also for water max. 7 bar at 0 to 80 °C
  • Ambient temperature -20 to 150 °C

Applications

Typical locations for the NPQR-T-G38-Q10 are valves, cylinders and service units with a G3/8 port. Approved medium for the NPQR-T-G38-Q10: compressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free), lubricated operation possible.

Technical data

FeatureValue
TypeNPQR-T-G38-Q10
Festo part number8085695
SizeStandard
Nominal width8 mm
Tubing insertion depth15.1 mm
Seal type on screw-in studSealing ring
Mounting positionAny
DesignT-shape
ConstructionPush-pull principle
Operating pressure, full temperature range-0.95 to 16 bar
Note on operating pressureWater: max. 7 bar at 0 to 80 °C
Certificate issuing bodyNSF C0556009
Operating mediumcompressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC4 - very high corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni content (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 4 to ISO 14644-1
Food suitabilitySee declaration of conformity, NSF/ANSI 169
Ambient temperature-20 to 150 °C
Nominal tightening torque9 Nm
Tolerance of nominal tightening torque± 20 %
Product weight52.5 g
Mounting typeExternal hex A/F 20
Pneumatic connection 1Male thread G3/8
Pneumatic connection 2For tubing OD 10 mm
Release ring colourSilver
Material noteRoHS compliant
Housing materialHigh-alloy stainless steel
Thread seal materialFPM
Retaining ring materialHigh-alloy stainless steel
Release ring materialHigh-alloy stainless steel
Tubing seal materialFPM
Tubing clamp segment materialHigh-alloy stainless steel
Support ring materialPPSU
Weight0.06 kg
ManufacturerFesto
Hersteller-NrNPQR-T-G38-Q10
EAN4052568454876
Zolltarifnummer73072910
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel
BauformT-Form
ThreadG 3/8
For hose OD [mm]10
Nominal size DN [mm]8
Size BGStandard
Seal materialFPM
MediumCompressed air
Thread typeExternal thread
Schlüsselweite [mm]20
Betriebsdruck max [bar]16
Temperaturbereich-20-150 °C
Temperature (max.)150
