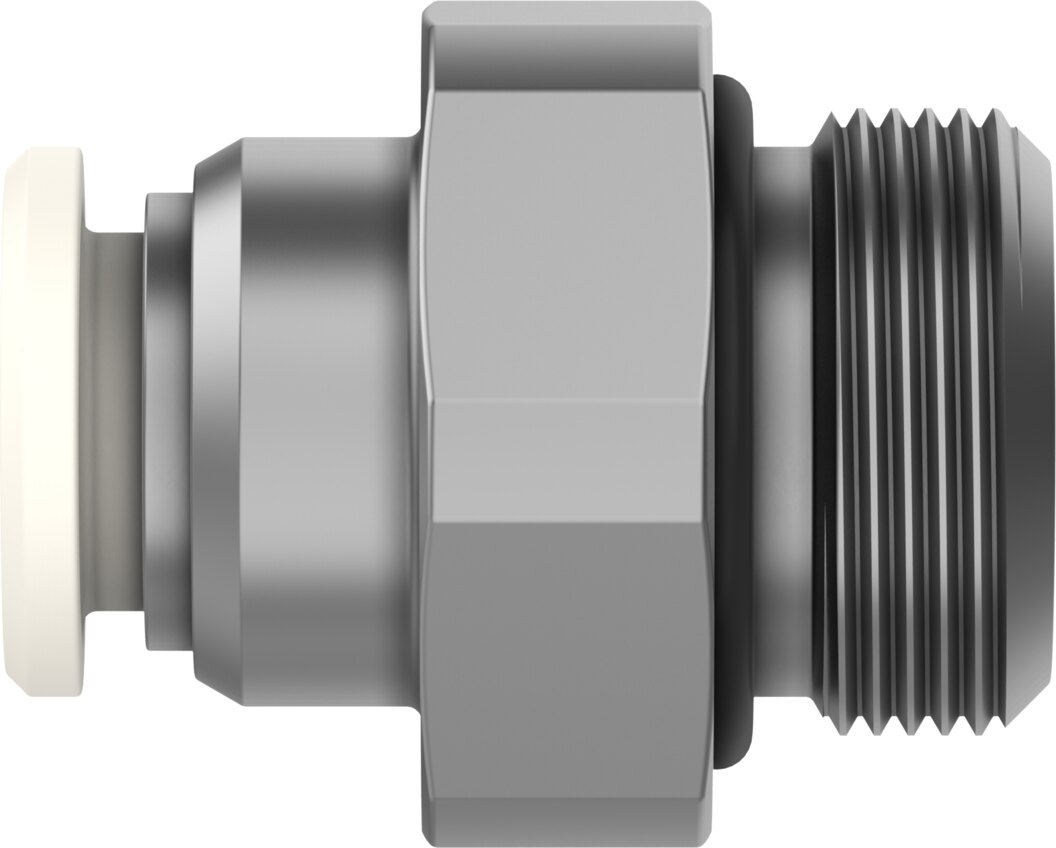

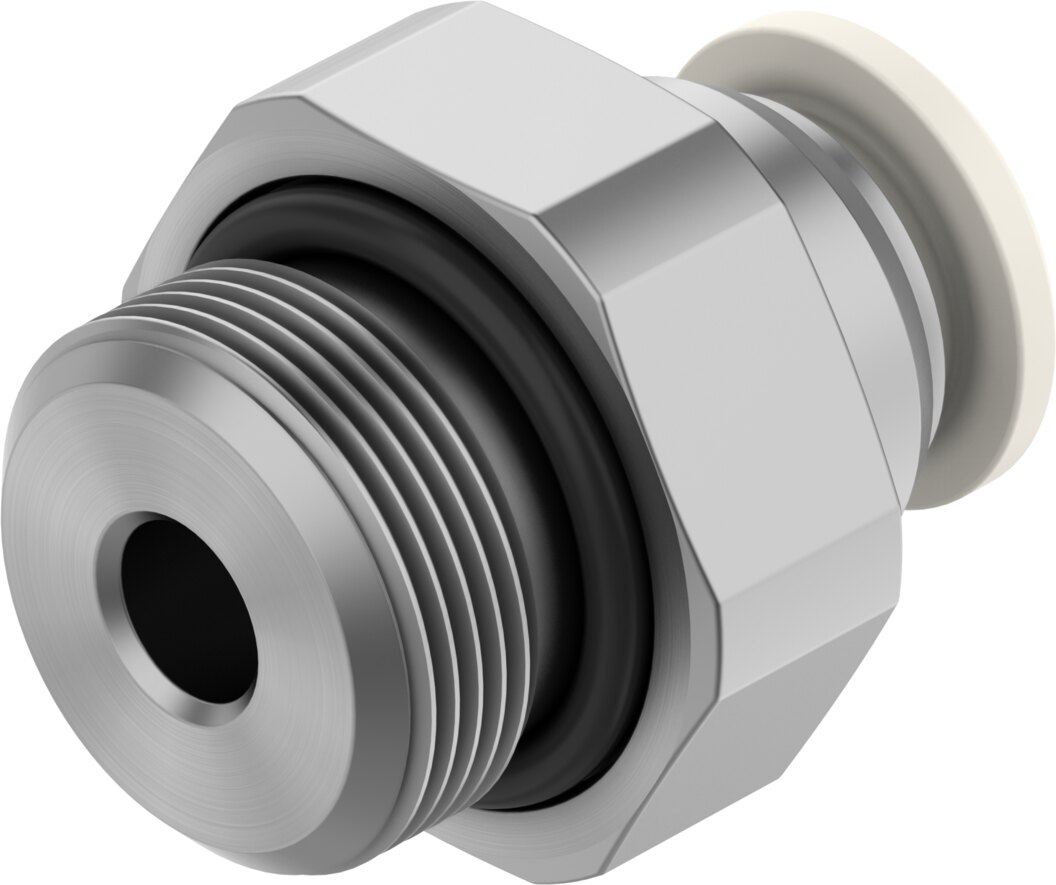

Push-in fitting NPQO-D-G14-Q6-P10 - Festo 8203297
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Nominal size | 4.2 mm |
|---|---|
| Tubing insertion depth | 15.6 mm |
| Type of seal on screwed plug | O-ring |
| Mounting position | Any |
| Design | Straight design |
| Size of pack | 10 |
| Operating pressure complete temperature range | -0.9 ... 20 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas, Carbon dioxide, Air, Oxygen, Nitrogen |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitable for use with food | See supplementary material information |
| Media temperature | 0 ... 120 °C |
| Ambient temperature | 0 ... 120 °C |
| Biocompatibility according to standard | ISO 18562 |
| Oxygen suitability according to standard | ASTM G 93, ISO 15001 |
| Maximum impurity level for hydrocarbons | 550 mg/m² |
| Max. tightening torque | 9 Nm |
| Nominal torque | 8 Nm |
| Tolerance for nominal tightening torque | ±10% |
| Product weight | 17.08 g |
| Pneumatic connection, port 1 | Male thread G1/4 |
| Pneumatic connection, port 2 | For tubing outside diameter of 6 mm |
| Colour of release ring | White |
| Material screwed plug | High-alloy stainless steel |
| Note on materials | RoHS compliant |
| Material housing | High-alloy stainless steel |
| Material thread seal | Fluoro rubber |
| Material release ring | PVDF |
| Material o-ring | Fluoro rubber |
| Material tubing seal | Fluoro rubber |
| Material tubing clamp component | High-alloy stainless steel |
| Thrust ring material | PVDF |
| Weight | 0.018 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NPQO-D-G14-Q6-P10 |
| EAN | 4052568659196 |
| Zolltarifnummer | 73072910 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
