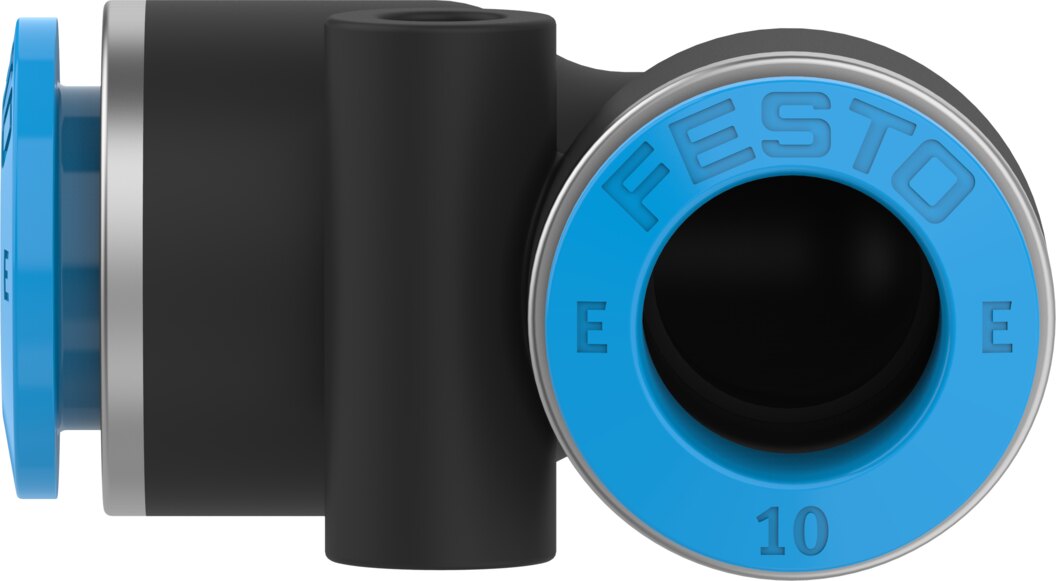

Push-in L-connector for tubing OD 10 mm, PBT NPQE-L-Q10-E-F1A-P10 - Festo 8158799
The push-in L-connector NPQE-L-Q10-E-F1A-P10 joins two tubes with an OD of 10 mm and changes the direction of the line. The NPQE-L-Q10-E-F1A-P10 is rated for -0.95 to 8 bar operating pressure and -5 to 60 °C ambient temperature. Cleanroom suitable to class 4 of ISO 14644-1 and LABS (PWIS) compliant.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The push-in L-connector NPQE-L-Q10-E-F1A-P10 joins two tubes with an OD of 10 mm and changes the direction of the line. The NPQE-L-Q10-E-F1A-P10 is rated for -0.95 to 8 bar operating pressure and -5 to 60 °C ambient temperature.
Benefits
- From vacuum up to 8 bar operating pressure -0.95 to 8 bar across the full temperature range
- Ambient temperature -5 to 60 °C
- Push-pull principle push the tube in, press the blue release ring to remove it
- Housing made of PBTcorrosion resistance class CRC 1
- Tubing seal made of NBR
- LABS (PWIS) conformity to VDMA24364 zone III
Applications
NPQE-L-Q10-E-F1A-P10 is meant for routing tubing round corners and in tight spaces. The NPQE-L-Q10-E-F1A-P10 works with compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible..
Technical data
| Feature | Value |
|---|---|
| Type | NPQE-L-Q10-E-F1A-P10 |
| Festo part number | 8158799 |
| Size | Standard |
| Nominal width | 9.3 mm |
| Mounting position | Any |
| Design | L-shape |
| Construction | Push-pull principle |
| Operating pressure, full temperature range | -0.95 to 8 bar |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for Li-ion battery production | Suitable for battery production with reduced Cu/Zn/Ni content (F1a) |
| Cleanroom suitability, measured to ISO 14644-14 | Class 4 to ISO 14644-1 |
| Ambient temperature | -5 to 60 °C |
| Product weight | 10.26 g |
| Pneumatic connection 1 | For tubing OD 10 mm |
| Pneumatic connection 2 | For tubing OD 10 mm |
| Release ring colour | Blue |
| Material note | RoHS compliant |
| Housing material | PBT |
| Release ring material | POM |
| Tubing seal material | NBR |
| Tubing clamp segment material | High-alloy stainless steel |
| Weight | 0.011 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NPQE-L-Q10-E-F1A-P10 |
| EAN | 4052568599263 |
| Zolltarifnummer | 39174000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PBT |
| Bauform | L-Form |
| For hose OD [mm] | 10 |
| Nominal size DN [mm] | 9,3 |
| Size BG | Standard |
| Seal material | NBR |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 8 |
| Temperaturbereich | -5-60 °C |
| Temperature (max.) | 60 |
