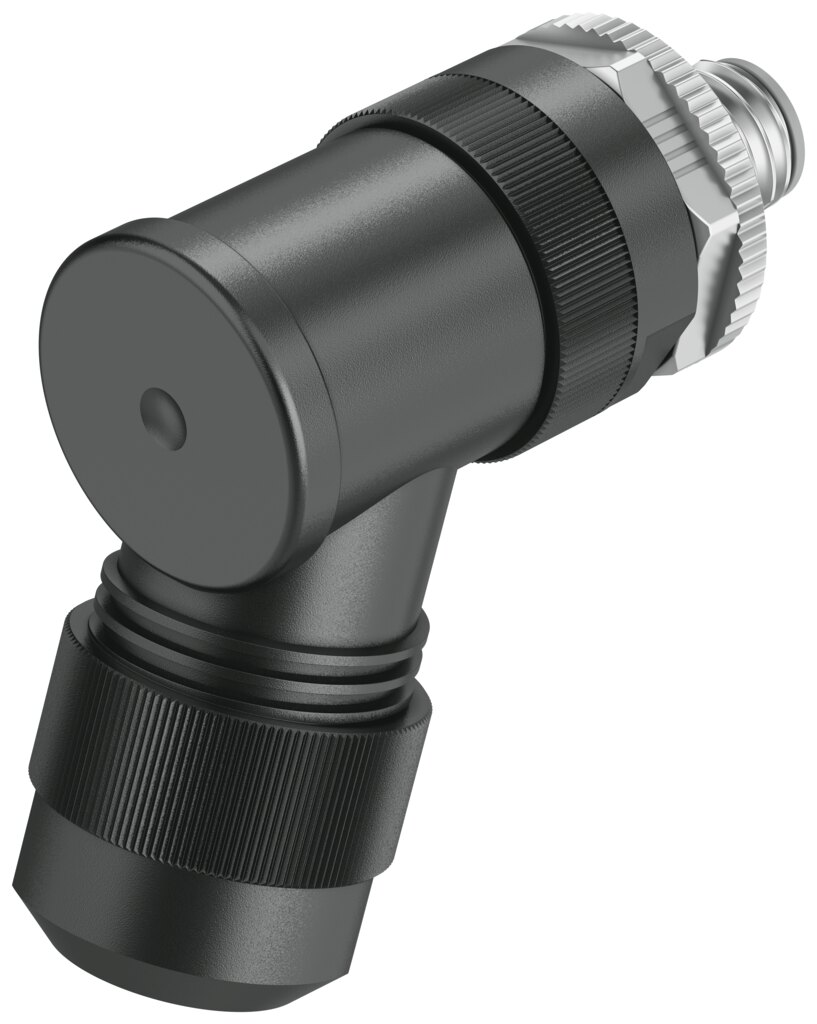

Power supply plug, 5-pin M12x1 plug to screw terminal NECL-S-L12W5-C2-Q10 - Festo 8166792
The power supply plug NECL-S-L12W5-C2-Q10 has two connection sides: M12x1 L-coded plug (5-pin) and screw terminal. Current rating 16 A at 40 °C. Voltage 63 V DC, range 0 to 63 V. Degree of protection IP65, IP67, ambient temperature -40 to 105 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The power supply plug NECL-S-L12W5-C2-Q10 has two connection sides: M12x1 L-coded plug (5-pin) and screw terminal.
Benefits

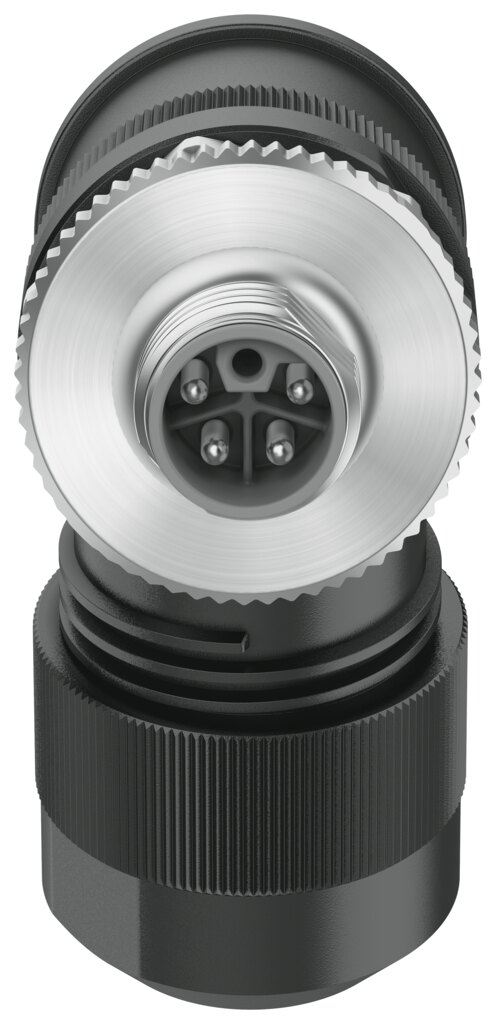

- Connection 1: M12x1 L-coded plug (5-pin)
- Connection 2: screw terminal
- Electrical: 16 A at 40 °C, 63 V DC nominal voltage
- Environment: IP65, IP67, -40 to 105 °C
Applications
Suitable for ambient temperatures of -40 to 105 °C. Approval: c UL us - Recognised (Oil).
Technical data
| Based on standard | EN 61076-2-111 |
|---|---|
| Approval | c UL us - Recognised (Oil) |
| Certificate issuing authority | UL E474609 |
| Type of mounting | Threaded |
| Cable outlet | Angled |
| Note on cable outlet | Can be rotated 72° |
| Product weight | 45.69 g |
| Electrical connection 1, function | Power supply |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connector system | M12x1 L-coded to EN 61076-2-111 |
| Electrical connection 1, number of connections/cores | 5 |
| Electrical connection 2, connector system | Screw terminal |
| Operational voltage range DC | 0 to 63 V |
| Nominal operating voltage DC | 63 V |
| Current rating at 40 °C | 16 A |
| Immunity to surge | 1.5 kV |
| Permissible cable diameter | 8 - 13 mm for electrical connection 1 |
| Nominal cross section conductor | 2.5 mm², AWG14 |
| Note on connection cross-section | Maximum 1.5 mm²/AWG16 when using wire ferrule |
| Degree of protection | IP65, IP67 |
| Ambient temperature | -40 to 105 °C |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS compliant |
| Pollution degree | 3 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Material housing | PA |
| Material screw-type lock | Nickel-plated die-cast zinc |
| Material electrical contact | Gold-plated copper alloy |
| Manufacturer | Festo |
| Hersteller-Nr | NECL-S-L12W5-C2-Q10 |
| EAN | 4052568605599 |
| Zolltarifnummer | 85366990 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PA |
| Norm | DIN EN 61076-2-111 |
