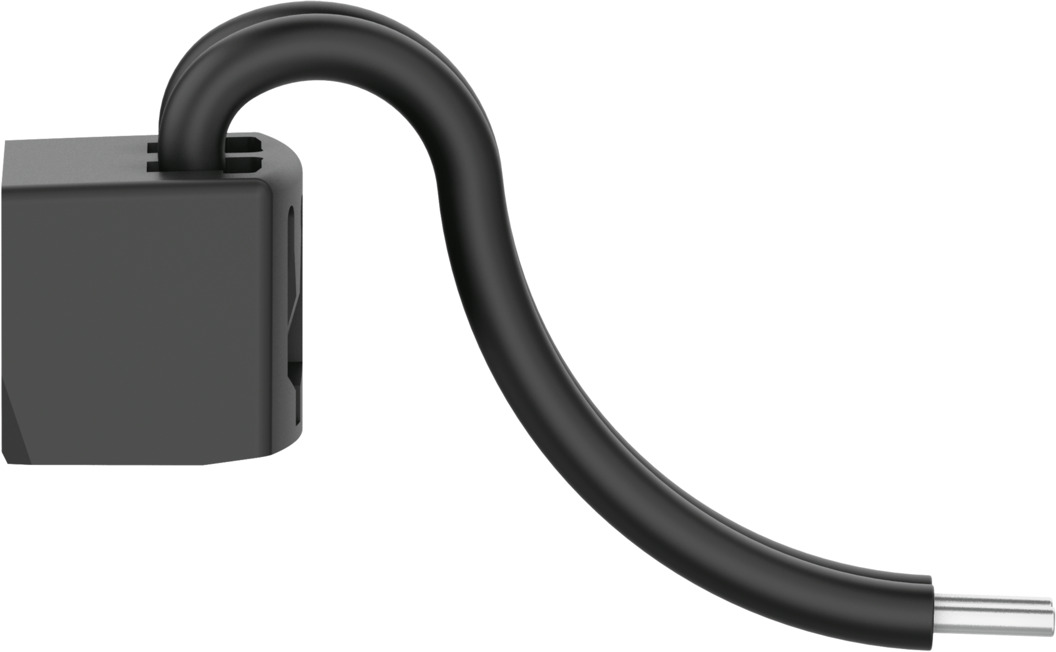

Connecting cable socket Plug 2-pin open end 0.1 m NEBV-Q7G2-PD-0.1-N-LE2 - Festo 8115892
The Festo connecting cable NEBV-Q7G2-PD-0.1-N-LE2 links field devices such as sensors or valves to the control side. Relevant for selection: side 1 with socket Plug pattern Q7, 2-pin, straight, side 2 with open cable end and cable length 0.1 m. Plus: degree of protection IP40.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo connecting cable NEBV-Q7G2-PD-0.1-N-LE2 links field devices such as sensors or valves to the control side. Relevant for selection: side 1 with socket Plug pattern Q7, 2-pin, straight, side 2 with open cable end and cable length 0.1 m.
Benefits
- Ready to install: 0.1 m long, assembled at one end, the open end goes straight to terminals
- Routing: bending radius 16.5 mm with moving cable
- Sealed: degree of protection IP40
- Temperature range: usable from 0 to 50 °C
- Electrical: operating voltage 0 to 30 V DC, current rating 0.3 A at 40 °C
- Corrosion protection: corrosion resistance class CRC 0 (no corrosion stress)
Applications
Intended for wiring sensors and actuators in the machine. The permitted temperature range is 0 to 50 °C.
Technical data
| Feature | Value |
|---|---|
| Type | NEBV-Q7G2-PD-0.1-N-LE2 |
| Festo part number | 8115892 |
| Cable designation | Without inscription label holder |
| Frequency of connection | 20 |
| Product weight | 0.5 g |
| Electrical connection 1, function | Field device side |
| Electrical connection 1, design | Square |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connector system | Plug pattern Q7 |
| Electrical connection 1, number of connections/cores | 2 |
| Electrical connection 1, used connections/cores | 2 |
| Electrical connection 1, type of mounting | plugged in |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Twin wire |
| Electrical connection 2, connector system | Open end |
| Electrical connection 2, number of connections/cores | 2 |
| Electrical connection 2, used connections/cores | 2 |
| Operational voltage range DC | 0 to 30 V |
| Current rating at 40° C | 0.3 A |
| Immunity to surge | 1.2 kV |
| Reverse polarity protection | No |
| Protective conductor connection | Not provided |
| Shielding | No |
| Note on operation | Only operate with external power reduction |
| Cable length | 0.1 m |
| Cable characteristic | Basic |
| Test conditions cable | Test conditions on request |
| Bending radius, fixed cable | 11 mm |
| Bending radius, moving cable | 16.5 mm |
| Cable diameter | 1.1 mm |
| Cable structure | 2 x 0.08 mm² |
| Nominal cross section conductor | 0.08 mm², AWG28 |
| Wire ends | Tin-plated |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 50 °C |
| Storage temperature | -20 to 70 °C |
| CE mark (see declaration of conformity) | In accordance with EU RoHS Directive |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS compliant |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| Material housing | Reinforced PA |
| Housing colour | Black |
| Material electrical contact | Gold-plated copper alloy |
| Material insulating sheath | PVC |
| Weight | 0.001 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NEBV-Q7G2-PD-0.1-N-LE2 |
| EAN | 4052568459604 |
| Zolltarifnummer | 85444290 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Colour | Black |
| Length [mm] | 100 |
| Series | NEBV |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
