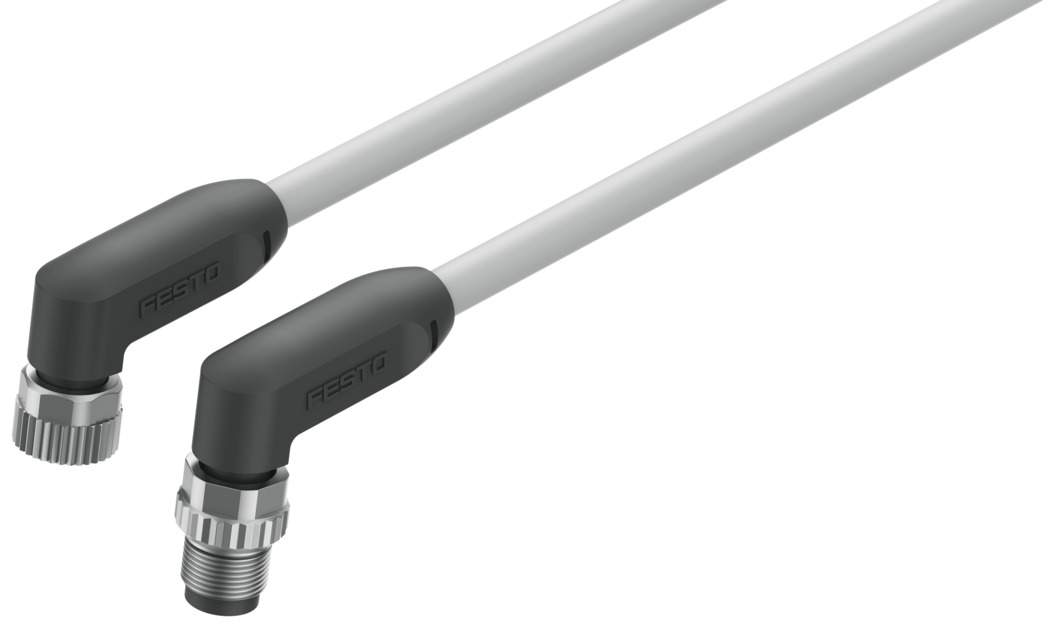

Connecting cable NEBL-M8W4-E-0.3-N-M8W4 - Festo 8146577
Net
excl. VAT
€27.28
Item
FES-8146577
Manufacturer no.
NEBL-M8W4-E-0.3-N-M8W4
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Conforms to standard | EN 61076-2-104 |
|---|---|
| Approval | c UL us - Listed (Oil) |
| Certificate issuing authority | UL E253748 |
| Cable designation | Without inscription label holder |
| Frequency of connection | 100 |
| Product weight | 23 g |
| Electrical connection 1, function | Field device side |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 |
| Electrical connection 1, number of connections/cores | 4 |
| Electrical connection 1, used connections/cores | 4 |
| Electrical connection 1, type of mounting | Screw-type lock with hexagon A/F 9 mm and longitudinal knurl, Rotatable |
| Electrical connection 1, compatible type of mounting | Compatible with rotatable/non-rotatable screw-type lock |
| Electrical connection 1, connection pattern | 00991872 |
| Electrical connection 1, terminal allocation | Pin 1 = BN, Pin 2 = WH, Pin 3 = BU, Pin 4 = BK |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Round |
| Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Angled |
| Electrical connection 2, connector system | M8x1, A-coded to EN 61076-2-104 |
| Electrical connection 2, number of connections/cores | 4 |
| Electrical connection 2, used connections/cores | 4 |
| electrical connection 2, type of mounting | Screw-type lock with hexagon A/F 9 mm and longitudinal knurl, Rotatable |
| Electrical connection 2, compatible type of mounting | Compatible with rotatable/non-rotatable screw-type lock |
| Electrical connection 2, connection pattern | 00991171 |
| Electrical connection 2, terminal allocation | Pin 1 = BN, Pin 2 = WH, Pin 3 = BU, Pin 4 = BK |
| Operational voltage range DC | 0 ... 30 V |
| Nominal operating voltage DC | 24 V |
| Operational voltage range AC | 0 ... 30 V |
| Nominal operating voltage AC | 24 V |
| Current rating at 40° C | 4.3 A |
| Note on permissible current load at 40°C | Observe derating |
| Immunity to surge | 0.8 kV |
| Protective conductor connection | Not provided |
| Shielding | No |
| Cable length | 0.3 m |
| Cable characteristic | Suitable for energy chains |
| Test conditions cable | Test conditions on request |
| Bending radius, fixed cable | 15 mm |
| Bending radius, moving cable | 50 mm |
| Cable diameter | 4.8 mm |
| Cable diameter tolerance | ±0.15 mm |
| Cable structure | 4 x 0.5 mm² |
| Nominal cross section conductor | 0.5 mm² |
| Degree of protection | IP68 |
| Note on degree of protection | In mounted state |
| Special characteristics | Oil-resistant |
| Ambient temperature | -40 ... 90 °C |
| Note on ambient temperature | -40 - 75°C for UL applications |
| Ambient temperature with moving cable | -20 ... 90 °C |
| Note on the ambient temperature with flexible cable installation | -20 - 75°C for UL applications |
| Storage temperature | -40 ... 90 °C |
| CE mark (see declaration of conformity) | In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Note on materials | RoHS compliant, Free of halogen |
| Pollution degree | 3 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Material cable sheath | TPE-U(PUR) |
| Cable sheath colour | Black |
| Material housing | TPE-U(PUR) |
| Housing colour | Black |
| Material screw-type lock | Brass, nickel-plated |
| Material seals | Fluoro rubber |
| Material electrical contact | Gold-plated copper alloy |
| Material insulating sheath | PP |
| Weight | 0.027 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NEBL-M8W4-E-0.3-N-M8W4 |
| EAN | 4052568572433 |
| Zolltarifnummer | 85444290 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
