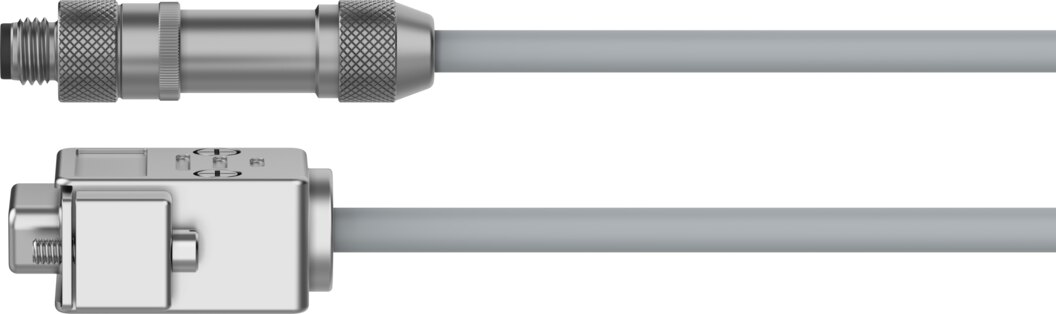

Connecting cable NEBC-M8G4-ES-1.5-N-SB-S1G9-RS2-S7 - Festo 8099218
Net
excl. VAT
€110.01
Item
FES-8099218
Manufacturer no.
NEBC-M8G4-ES-1.5-N-SB-S1G9-RS2-S7
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Protocol | RS232 |
|---|---|
| Cable designation | With accessories |
| Mounting position | Any |
| Electrical connection 1, function | Field device side |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 |
| Electrical connection 1, number of connections/cores | 4 |
| Electrical connection 1, used connections/cores | 3 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection 1, connection pattern | 00995708 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Square |
| Electrical connection 2, connection type | Socket |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connector system | Sub-D |
| Electrical connection 2, number of connections/cores | 9 |
| Electrical connection 2, used connections/cores | 8 |
| electrical connection 2, type of mounting | 2x screw 4-40 UNC |
| Electrical connection 2, connection pattern | 00995638 |
| Operational voltage range DC | 0 ... 24 V |
| Nominal operating voltage DC | 24 V |
| Current rating at 40° C | 4 A |
| Immunity to surge | 1.5 kV |
| Shielding | Yes |
| Cable length | 1.5 m |
| Cable characteristic | Suitable for energy chains |
| Test conditions cable | Test conditions on request |
| Bending radius, fixed cable | 24 mm |
| Bending radius, moving cable | 47 mm |
| Cable diameter | 4.6 mm |
| Cable diameter tolerance | ± 0.1 mm |
| Cable structure | 3 x 0.34 mm² |
| Nominal cross section conductor | 0.34 mm² |
| Degree of protection | IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | 0 ... 50 °C |
| Ambient temperature with moving cable | 0 ... 50 °C |
| CE mark (see declaration of conformity) | In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Note on materials | RoHS compliant |
| Pollution degree | 2 |
| Material cable sheath | TPE-U(PUR) |
| Cable sheath colour | Black |
| Weight | 0.09 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NEBC-M8G4-ES-1.5-N-SB-S1G9-RS2-S7 |
| EAN | 4052568458614 |
| Zolltarifnummer | 85444290 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
