Service unit combination MSB6-3/8:I2:I4 - Festo 8233037
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 6 |
|---|---|
| Series | MS |
| Mounting position | Vertical +/-5° |
| Condensate drain | Fully automatic |
| Design | Fibre filter |
| Max. condensate volume | 38 ml |
| Bowl guard | Plastic bowl guard |
| Operating pressure | 2 ... 12 bar |
| Max. standard flow rate | 900 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [6:-:4], Inert gas |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10 ... 60 °C |
| Air purity class at output | Compressed air to ISO 8573-1:2010:[5:-:3] |
| Media temperature | -10 ... 60 °C |
| Ambient temperature | -10 ... 60 °C |
| Product weight | 1240 g |
| Type of mounting | With accessories |
| Pneumatic connection, port 1 | G3/8 |
| Pneumatic connection, port 2 | G3/8 |
| Material seals | NBR |
| Material filter | Borosilicate fibre |
| Material housing | Die-cast aluminium |
| Material bowl | Makrolon® |
| Weight | 1.4 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MSB6-3/8:I2:I4 |
| EAN | 4052568778996 |
| Zolltarifnummer | 84213925 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
Downloads
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
Customers Who Bought This Item Also Bought
Festo

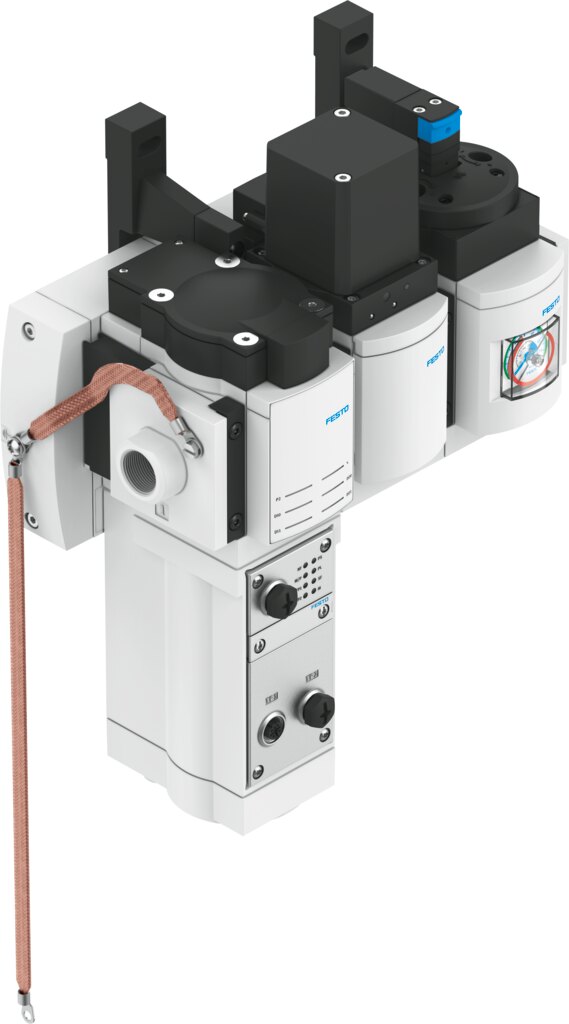

Energy efficiency module MSE6-C2M-5000-FB43-D-M-RG-BAR-M12L5-MQ1-AGD - Festo 8157912
