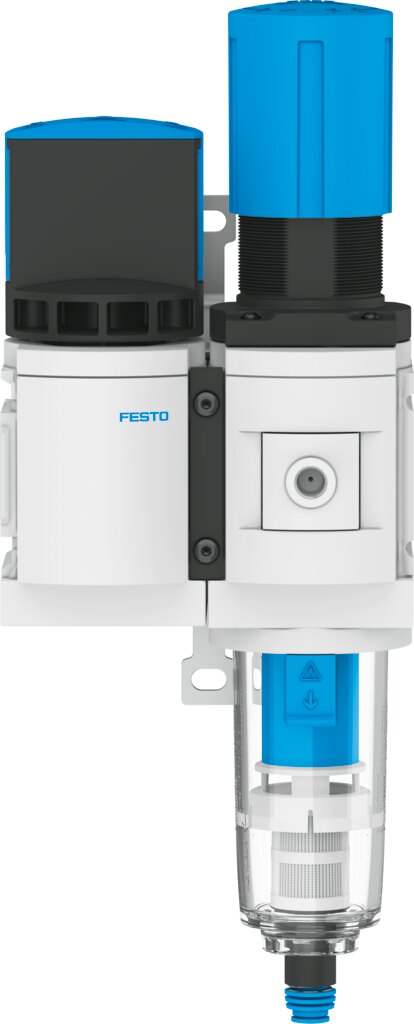

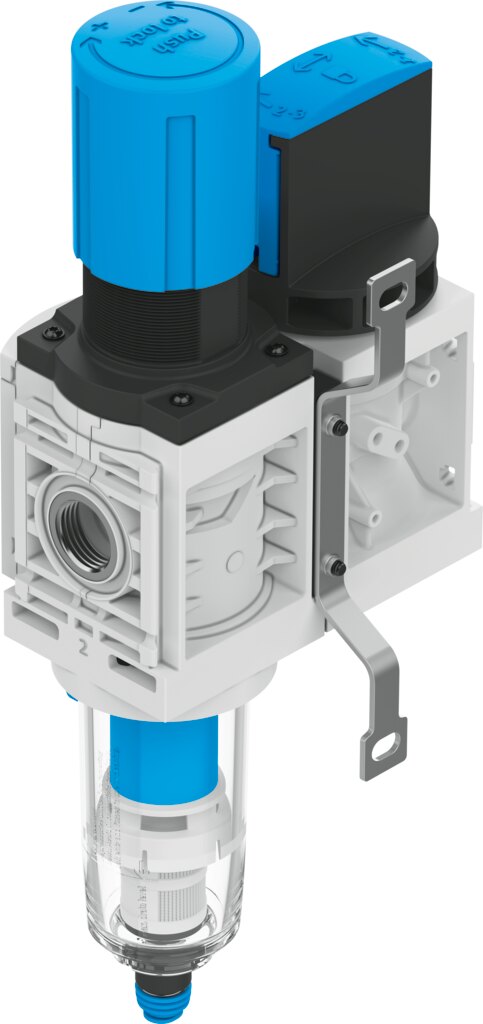

Service unit filter 40 µm, 5300 l/min MS6-EM1FR-1/2-D6-E-P-VC-A8-WPE-B - Festo 8130914

Festo ✓ Original product Brand new

The MS6-EM1FR-1/2-D6-E-P-VC-A8-WPE-B service unit combines the switch-on function and a filter of 40 µm in one assembly. Standard nominal flow rate is 5300 l/min, 3600 l/min when exhausting. Operating pressure 1 to 10 bar.

Net
€198.56
excl. VAT
Item FES-8130914
Manufacturer no. MS6-EM1FR-1/2-D6-E-P-VC-A8-WPE-B
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo MS6-EM1FR-1/2-D6-E-P-VC-A8-WPE-B combines the basic compressed air preparation functions of the MS6 series, condensate drain fully automatic, manual, non-detenting, pressure indicator prepared for G1/8.

At a glance

  • 5300 l/min standard nominal flow rate to DIN 1343
  • Grade of filtration 40 µm
  • Exhaust at 3600 l/min from 6 to 0 bar
  • Operating pressure 1 to 10 bar
  • Media temperature 5 to 50 °C
  • Corrosion resistance class CRC 1

Applications

The MS6-EM1FR-1/2-D6-E-P-VC-A8-WPE-B is fitted as a complete unit in the supply line of a machine and saves assembling individual modules. Mounting: with mounting bracket, with accessories.

Technical data

TypeMS6-EM1FR-1/2-D6-E-P-VC-A8-WPE-B
Festo part number8130914
Size6
SeriesMS
Mounting positionVertical ±5°
Grade of filtration40 µm
Condensate drainFully automatic, manual, non-detenting
Pressure indicatorPrepared for G1/8
Operating pressure1 to 10 bar
Standard flow rate, exhaust from 6 to 0 bar3600 l/min
Standard nominal flow rate (standardised to DIN 1343)5300 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumCompatibility with ester oil not guaranteed
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-5 to 50 °C
Media temperature5 to 50 °C
Ambient temperature5 to 50 °C
Product weight1250 g
Type of mountingWith mounting bracket, with accessories
Note on materialsRoHS compliant
Material filterPE
Material bowlPC
Weight1.4 kg
ManufacturerFesto
Hersteller-NrMS6-EM1FR-1/2-D6-E-P-VC-A8-WPE-B
EAN4052568609221
Zolltarifnummer84811005
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Size BG6
MediumCompressed air
Flow rate [l/min]5300
Filter grade [µm]40
Betriebsdruck max [bar]10
Temperature (max.)50
