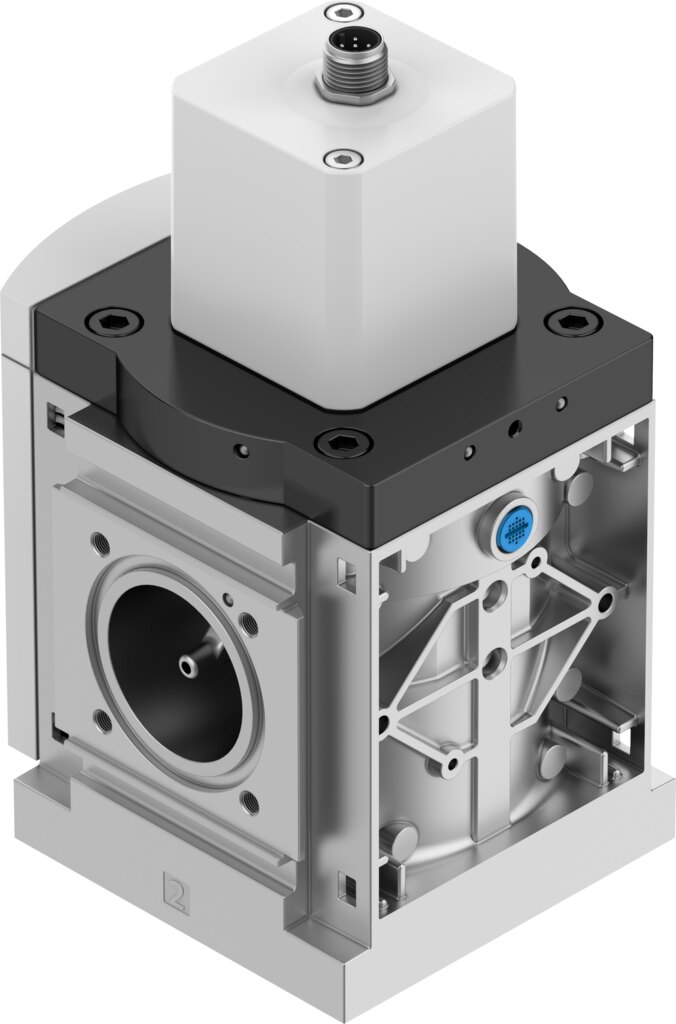

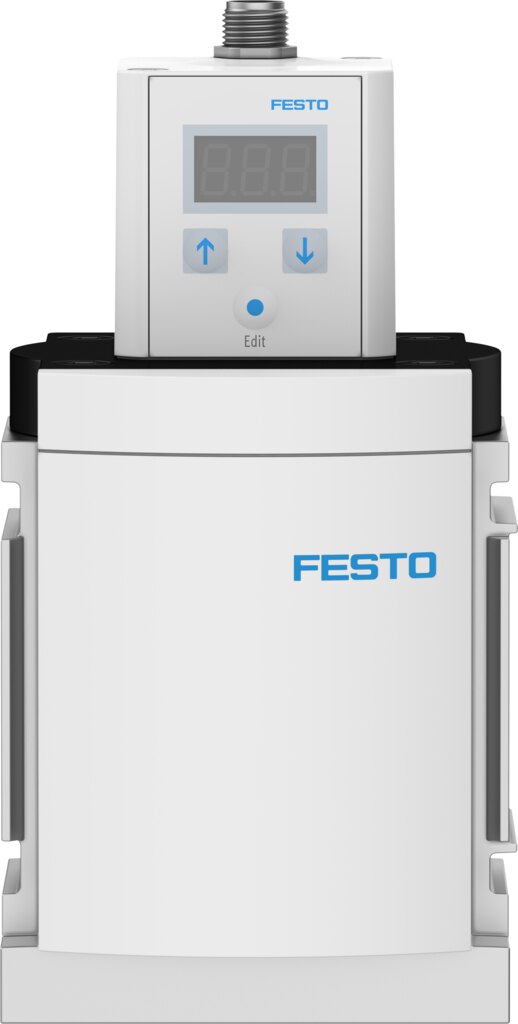

Pressure regulator 0.1 to 10 bar MS9-LR-G-PE10-VS - Festo 8203866
The pressure regulator MS9-LR-G-PE10-VS keeps the output pressure constant even when the supply pressure fluctuates, regulation range 0.1 to 10 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo MS9-LR-G-PE10-VS keeps the output pressure constant even when the supply pressure fluctuates, with a regulation range of 0.1 to 10 bar.
Benefits
- Pressure regulation range 0.1 to 10 bar, hysteresis max. 0.05 bar
- Operating pressure 6 to 11 bar
- Media temperature 10 to 50 °C
- Corrosion resistance class CRC 2
Applications
The MS9-LR-G-PE10-VS lets you set the working pressure of a system centrally and save compressed air. Permissible media temperature 10 to 50 °C. Mounting of the MS9-LR-G-PE10-VS: with accessories.
Technical data
| Type | MS9-LR-G-PE10-VS |
|---|---|
| Festo part number | 8203866 |
| Size | 9 |
| Series | MS |
| Mounting position | Any |
| Design | Piloted precision pressure regulator |
| Controller function | Output pressure constant, with primary pressure compensation, with secondary exhausting |
| Operating pressure | 6 to 11 bar |
| Pressure regulation range | 0.1 to 10 bar |
| Max. pressure hysteresis | 0.05 bar |
| Operational voltage range DC | 21.6 to 26.4 V |
| Max. electrical power consumption | 4.2 W |
| Max. current consumption | 0.16 A |
| Nominal operating voltage DC | 24 V |
| Residual ripple | 10% |
| Signal range analogue input | 0 - 10 V |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gas |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 7 according to ISO 14644-1 |
| Storage temperature | -10 to 60 °C |
| Media temperature | 10 to 50 °C |
| Ambient temperature | 0 to 60 °C |
| Product weight | 1400 g |
| Type of mounting | With accessories |
| Material covering | Reinforced PA |
| Note on materials | RoHS compliant |
| Material sub-base | Die-cast aluminium |
| Material mounting bracket | Die-cast aluminium |
| Material housing | Die-cast aluminium |
| Material module connector | Die-cast aluminium |
| Material membrane | NBR |
| Material valve stem | Wrought aluminium alloy, NBR, POM |
| Weight | 2.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS9-LR-G-PE10-VS |
| EAN | 4052568649340 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Control range max. [bar] | 10 |
| Housing material | Die-cast aluminium |
| Medium | Compressed air, neutral gases |
| Operating voltage | 24 V DC |
| Betriebsdruck max [bar] | 11 |
| Temperature (max.) | 50 |
