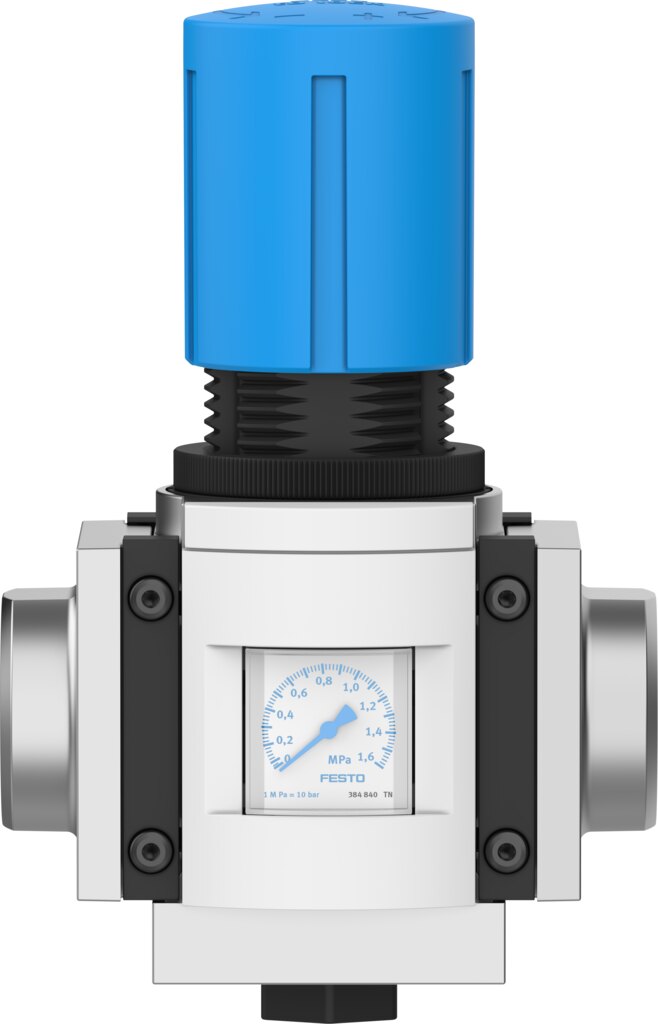

Pressure regulator G1, 0.5 to 12 bar MS6-LR-AGF-D7-MPA - Festo 8233001

Festo ✓ Original product Brand new

The pressure regulator MS6-LR-AGF-D7-MPA keeps the output pressure constant even when the supply pressure fluctuates, regulation range 0.5 to 12 bar. It offers 5500 l/min standard nominal flow rate and G1 ports. Pressure indicator: with pressure gauge.

Net
€100.70
excl. VAT
Item FES-8233001
Manufacturer no. MS6-LR-AGF-D7-MPA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo MS6-LR-AGF-D7-MPA keeps the output pressure constant even when the supply pressure fluctuates, with a regulation range of 0.5 to 12 bar. Standard nominal flow rate is 5500 l/min, operating pressure 0.8 to 20 bar.

At a glance

  • 5500 l/min standard nominal flow rate to DIN 1343
  • Pressure regulation range 0.5 to 12 bar, hysteresis max. 0.25 bar
  • Operating pressure 0.8 to 20 bar
  • Media temperature -10 to 60 °C
  • Corrosion resistance class CRC 2

Applications

The MS6-LR-AGF-D7-MPA lets you set the working pressure of a system centrally and save compressed air. Permissible media temperature -10 to 60 °C. Mounting of the MS6-LR-AGF-D7-MPA: with accessories.

Technical data

TypeMS6-LR-AGF-D7-MPA
Festo part number8233001
Size6
SeriesMS
Actuator lockRotary knob with detent
Mounting positionAny
DesignPressure regulator with pressure gauge

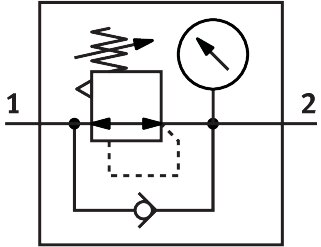

Controller functionOutput pressure constant, with secondary exhausting, with return flow function
Pressure indicatorWith pressure gauge
Operating pressure0.8 to 20 bar
Pressure regulation range0.5 to 12 bar
Max. pressure hysteresis0.25 bar
Standard nominal flow rate (standardised to DIN 1343)5500 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], inert gas
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-10 to 60 °C
Suitable for use with foodSee supplementary material information
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Product weight1030 g
Type of mountingWith accessories
Pneumatic connection, port 1G1
Pneumatic connection, port 2G1
Note on materialsRoHS compliant
Material sub-baseDie-cast aluminium
Material control panelPA, POM
Material sealsNBR
Material housingDie-cast aluminium
Material membraneNBR
Weight1.2 kg
ManufacturerFesto
Hersteller-NrMS6-LR-AGF-D7-MPA
EAN4052568782603
Zolltarifnummer84811099
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1
Size BG6
Control range max. [bar]12
Seal materialNBR
Housing materialDie-cast aluminium
MediumCompressed air, neutral gases
Flow rate [l/min]5500
Betriebsdruck max [bar]20
Pneumatic connectionG1
Temperaturbereich-10-60 °C
Temperature (max.)60
