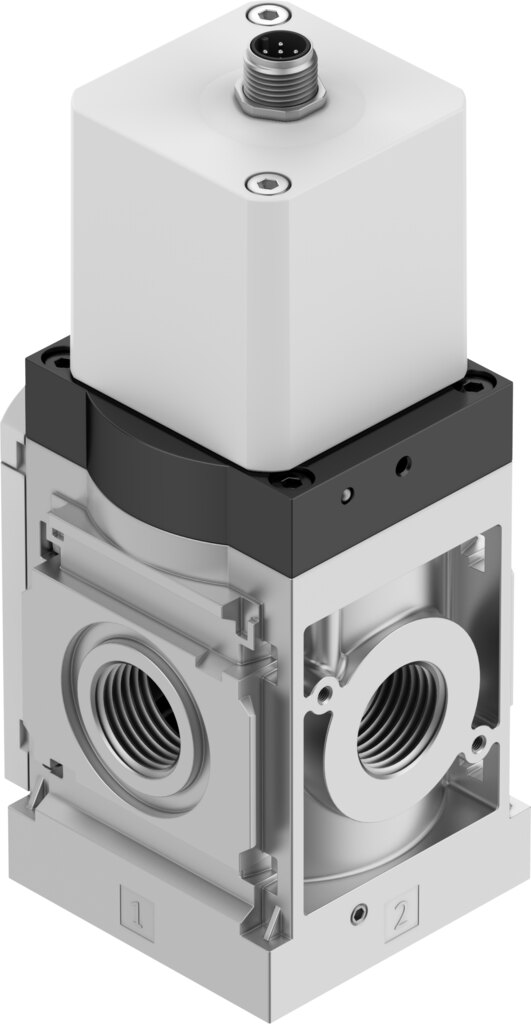

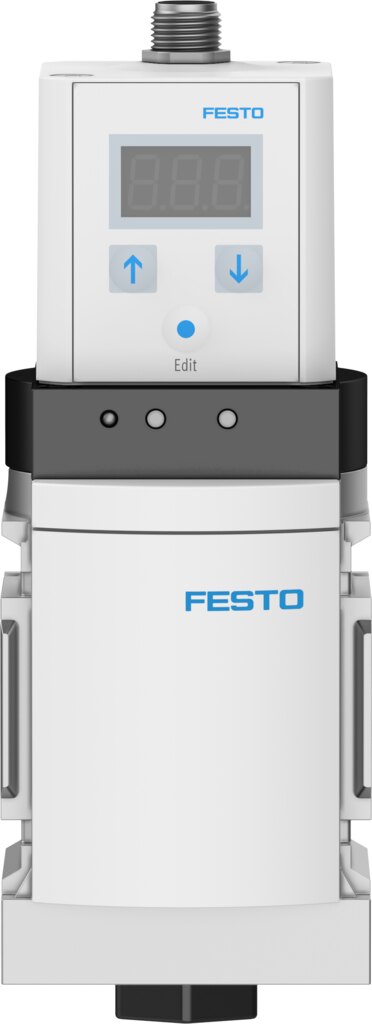

Precision pressure regulator G1/2, 0.1 to 10 bar MS6-LRPB-1/2-PE10-VS - Festo 8203863
The precision pressure regulator MS6-LRPB-1/2-PE10-VS sets the output pressure electrically via a 0 - 10 V setpoint, regulation range 0.1 to 10 bar. It offers hysteresis of max. 0.05 bar, 9000 l/min standard nominal flow rate and G1/2 ports.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo MS6-LRPB-1/2-PE10-VS sets the output pressure electrically via a 0 - 10 V setpoint, with a regulation range of 0.1 to 10 bar. Standard nominal flow rate is 9000 l/min, operating pressure 3.5 to 11 bar.
At a glance
- 9000 l/min standard nominal flow rate to DIN 1343
- Pressure regulation range 0.1 to 10 bar, hysteresis max. 0.05 bar
- Operating pressure 3.5 to 11 bar
- Media temperature 10 to 50 °C
- Corrosion resistance class CRC 2
Applications
The MS6-LRPB-1/2-PE10-VS suits test rigs, dosing and measuring tasks where the output pressure has to be exact. Permissible media temperature 10 to 50 °C. Mounting of the MS6-LRPB-1/2-PE10-VS: with accessories.
Technical data
| Type | MS6-LRPB-1/2-PE10-VS |
|---|---|
| Festo part number | 8203863 |
| Size | 6 |
| Series | MS |
| Mounting position | Any |
| Design | Piloted precision pressure regulator |
| Controller function | Output pressure constant, with secondary exhausting |
| Operating pressure | 3.5 to 11 bar |
| Pressure regulation range | 0.1 to 10 bar |
| Max. pressure hysteresis | 0.05 bar |
| Standard nominal flow rate (standardised to DIN 1343) | 9000 l/min |
| Operational voltage range DC | 21.6 to 26.4 V |
| Max. electrical power consumption | 4.2 W |
| Max. current consumption | 0.16 A |
| Nominal operating voltage DC | 24 V |
| Residual ripple | 10% |
| Signal range analogue input | 0 - 10 V |
| CE mark (see declaration of conformity) | To EU EMC Directive, in accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gas |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10 to 60 °C |
| Media temperature | 10 to 50 °C |
| Ambient temperature | 0 to 60 °C |
| Product weight | 800 g |
| Type of mounting | With accessories |
| Pneumatic connection, port 1 | G1/2 |
| Pneumatic connection, port 2 | G1/2 |
| Pneumatic connection, port 3 | G1/4 |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material housing | Aluminium |
| Weight | 0.95 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS6-LRPB-1/2-PE10-VS |
| EAN | 4052568649319 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/2 |
| Size BG | 6 |
| Control range max. [bar] | 10 |
| Seal material | NBR |
| Housing material | Aluminium |
| Medium | Compressed air, neutral gases |
| Flow rate [l/min] | 9000 |
| Operating voltage | 24 V DC |
| Betriebsdruck max [bar] | 11 |
| Pneumatic connection | G1/2 |
| Temperature (max.) | 50 |
