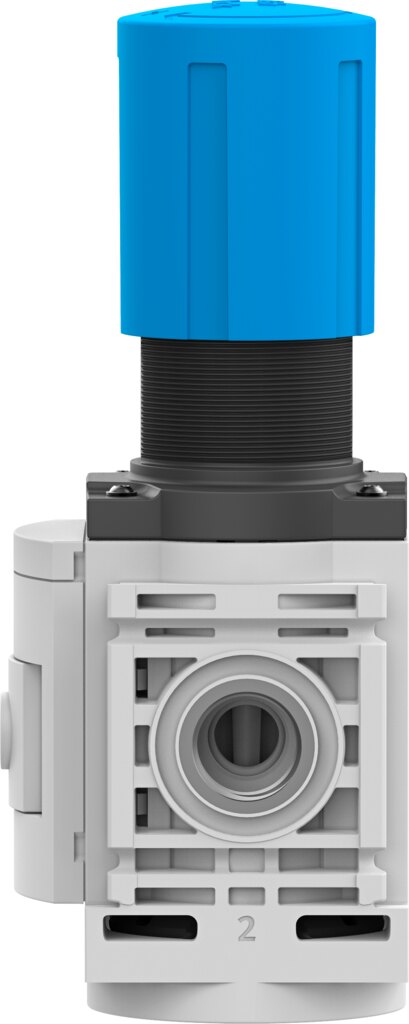

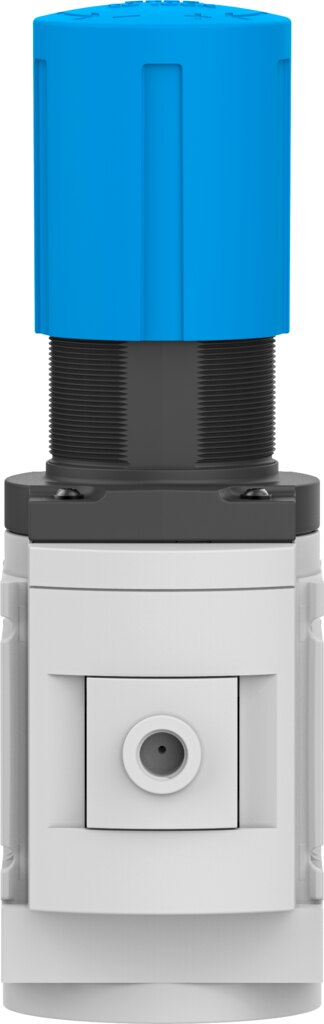

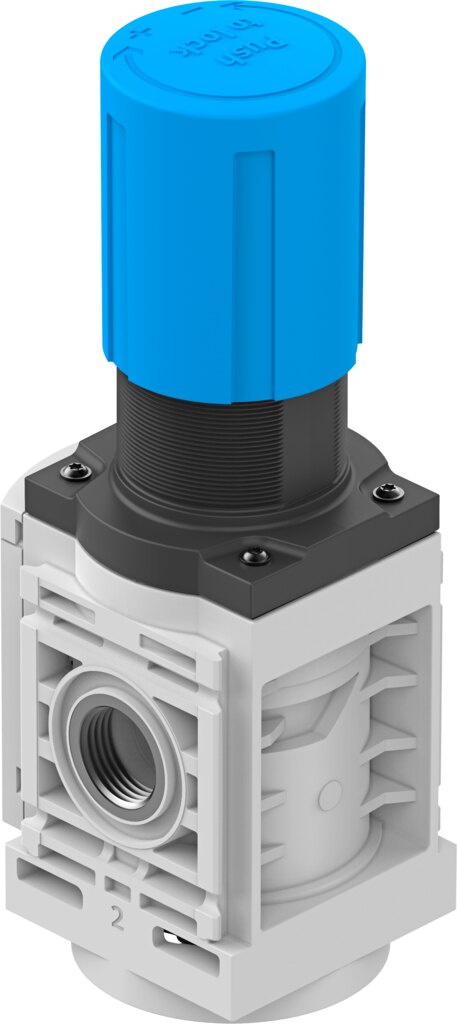

Pressure regulator 0.3 to 7 bar G1/2 MS6-LR-1/2-D6-RG-AS-UL1 - Festo 604935
The pressure regulator MS6-LR-1/2-D6-RG-AS-UL1 sets the pressure for downstream consumers within 0.3 to 7 bar and keeps it stable. Key values: size 6 of the MS series and port G1/2.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo pressure regulator MS6-LR-1/2-D6-RG-AS-UL1 at a glance: pressure regulation range 0.3 to 7 bar and port G1/2. The pressure regulator MS6-LR-1/2-D6-RG-AS-UL1 keeps the output pressure constant within 0.3 to 7 bar, even when the supply pressure fluctuates.
Advantages
- Output pressure adjustable from 0.3 to 7 bar.
- Pressure indication: red/green scale.
- Pneumatic connection G1/2.
Application
The pressure regulator MS6-LR-1/2-D6-RG-AS-UL1 is used in service units or directly upstream of individual consumers that need their own pressure level.
Technical data
| Type | MS6-LR-1/2-D6-RG-AS-UL1 |
|---|---|
| Series | MS |
| Size | 6 |
| Pneumatic connection, port 1 | G1/2 |
| Pneumatic connection, port 2 | G1/2 |
| Pressure regulation range | 0.3 to 7 bar |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) | Red/green scale |
| Weight (price list) | 0.9 kg |
| Weight | 0.9 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS6-LR-1/2-D6-RG-AS-UL1 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/2 |
| Size BG | 6 |
| Control range max. [bar] | 7 |
| Druckregelbereich [bar] | 0,3 bis 7 |
| Pneumatic connection | G1/2 |
