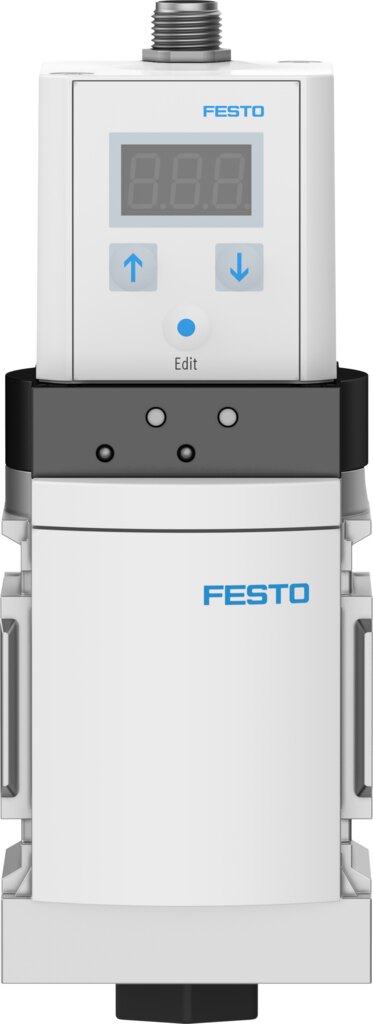

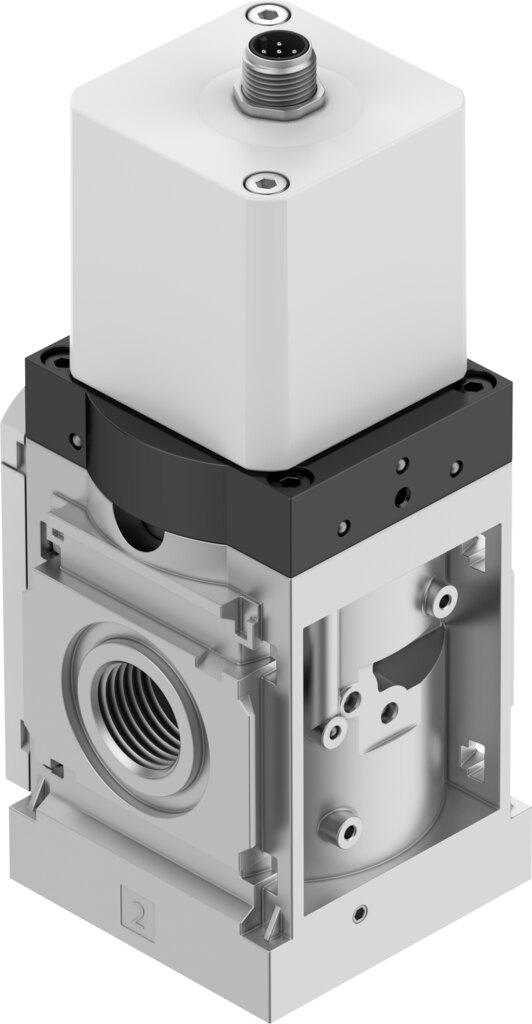

Precision pressure regulator G1/2, 0.1 to 10 bar MS6-LRP-1/2-PE10-VS - Festo 8203861

Festo ✓ Original product Brand new

The precision pressure regulator MS6-LRP-1/2-PE10-VS sets the output pressure electrically via a 0 - 10 V setpoint, regulation range 0.1 to 10 bar. Key data: hysteresis of max. 0.05 bar, 9000 l/min standard nominal flow rate and G1/2 ports.

Net
€611.77
excl. VAT
Item FES-8203861
Manufacturer no. MS6-LRP-1/2-PE10-VS
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo MS6-LRP-1/2-PE10-VS sets the output pressure electrically via a 0 - 10 V setpoint, with a regulation range of 0.1 to 10 bar. Standard nominal flow rate is 9000 l/min, operating pressure 3.5 to 11 bar.

Why it pays off

  • 9000 l/min standard nominal flow rate to DIN 1343
  • Pressure regulation range 0.1 to 10 bar, hysteresis max. 0.05 bar
  • Operating pressure 3.5 to 11 bar
  • Media temperature 10 to 50 °C
  • Corrosion resistance class CRC 2

Applications

Typical fields for the MS6-LRP-1/2-PE10-VS are applications with tight tolerances, such as test and measurement or bonding and dosing processes. Permissible media temperature 10 to 50 °C. Mounting of the MS6-LRP-1/2-PE10-VS: with accessories.

Technical data

TypeMS6-LRP-1/2-PE10-VS
Festo part number8203861
Size6
SeriesMS
Mounting positionAny
DesignPiloted precision pressure regulator
Controller functionOutput pressure constant, with secondary exhausting
Operating pressure3.5 to 11 bar
Pressure regulation range0.1 to 10 bar
Max. pressure hysteresis0.05 bar
Standard nominal flow rate (standardised to DIN 1343)9000 l/min
Operational voltage range DC21.6 to 26.4 V
Max. electrical power consumption4.2 W
Max. current consumption0.16 A
Nominal operating voltage DC24 V
Residual ripple10%
Signal range analogue input0 - 10 V
CE mark (see declaration of conformity)To EU EMC Directive, in accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], inert gas
Note on operating and pilot mediumEster oil below 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2], lubricated operation not possible
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-10 to 60 °C
Media temperature10 to 50 °C
Ambient temperature0 to 60 °C
Product weight800 g
Type of mountingWith accessories
Pneumatic connection, port 1G1/2
Pneumatic connection, port 2G1/2
Pneumatic connection, port 3G1/4
Note on materialsRoHS compliant
Material sealsNBR
Material housingAluminium
Weight0.95 kg
ManufacturerFesto
Hersteller-NrMS6-LRP-1/2-PE10-VS
EAN4052568648992
Zolltarifnummer84811099
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/2
Size BG6
Control range max. [bar]10
Seal materialNBR
Housing materialAluminium
MediumCompressed air, neutral gases
Flow rate [l/min]9000
Operating voltage24 V DC
Betriebsdruck max [bar]11
Pneumatic connectionG1/2
Temperature (max.)50
