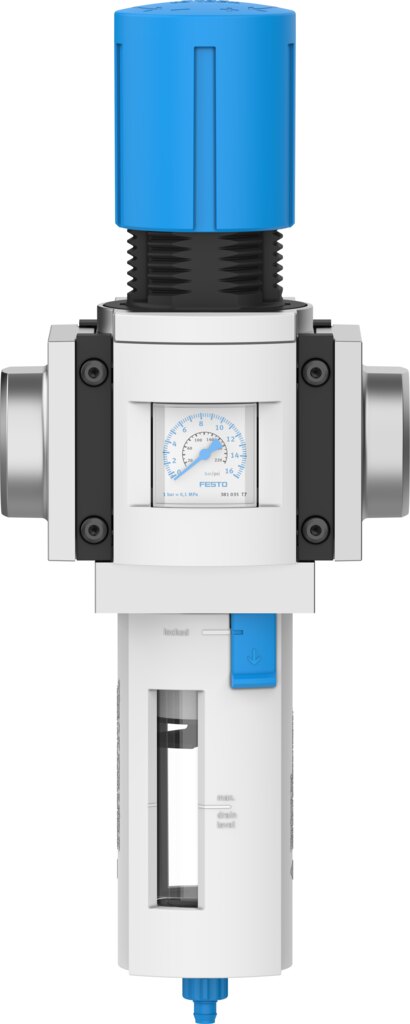

Filter regulator G1, 40 µm, 0.5 to 12 bar MS6-LFR-AGF-D7-E-R-M - Festo 8232922

Festo ✓ Original product Brand new

The filter regulator MS6-LFR-AGF-D7-E-R-M filters the compressed air and regulates it to a constant output pressure, regulation range 0.5 to 12 bar. It offers 40 µm grade of filtration, 4500 l/min standard nominal flow rate and G1 ports. Condensate drain: manual, rotating.

Net
€122.93
excl. VAT
Item FES-8232922
Manufacturer no. MS6-LFR-AGF-D7-E-R-M
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

One unit instead of two: the MS6-LFR-AGF-D7-E-R-M filters to 40 µm and regulates within 0.5 to 12 bar. Standard nominal flow rate is 4500 l/min, operating pressure 0 to 20 bar.

Benefits

  • 4500 l/min standard nominal flow rate to DIN 1343
  • Grade of filtration 40 µm, condensate separation 75 %
  • Pressure regulation range 0.5 to 12 bar, hysteresis max. 0.25 bar
  • Operating pressure 0 to 20 bar
  • Condensate volume up to 38 ml, drain manual, rotating
  • Air purity at output: Compressed air to ISO 8573-1:2010 [7:8:4]

Applications

The MS6-LFR-AGF-D7-E-R-M is used in MS6 service unit combinations or as a standalone unit in the line. Permissible media temperature -10 to 60 °C. Mounting options for the MS6-LFR-AGF-D7-E-R-M: front panel mounting, inline installation, with accessories.

Technical data

TypeMS6-LFR-AGF-D7-E-R-M
Festo part number8232922
Size6
SeriesMS
Actuator lockRotary knob with detent
Mounting positionVertical ±5°
Grade of filtration40 µm
Condensate drainManual, rotating
DesignFilter regulator with pressure gauge
Max. condensate volume38 ml
Controller functionOutput pressure constant, with secondary exhausting
Bowl guardPlastic bowl guard
Degree of condensate separation75 %
Pressure indicatorWith pressure gauge
Operating pressure0 to 20 bar
Pressure regulation range0.5 to 12 bar
Max. pressure hysteresis0.25 bar
Standard nominal flow rate (standardised to DIN 1343)4500 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [-:9:-], inert gas
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-10 to 60 °C
Suitable for use with foodSee supplementary material information
Air purity class at outputCompressed air to ISO 8573-1:2010 [7:8:4]
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Pore size40 µm
Product weight1175 g
Type of mountingEither: Front panel mounting, inline installation, with accessories
Pneumatic connection, port 1G1
Pneumatic connection, port 2G1
Note on materialsRoHS compliant
Material sub-baseDie-cast aluminium
Material control panelPA, POM
Material sealsNBR
Material filterPE
Material housingDie-cast aluminium
Material membraneNBR
Material bowlPC
Material separating platePOM
Weight1.4 kg
ManufacturerFesto
Hersteller-NrMS6-LFR-AGF-D7-E-R-M
EAN4052568782511
Zolltarifnummer84811005
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1
Size BG6
Control range max. [bar]12
Seal materialNBR
Housing materialDie-cast aluminium
MediumCompressed air, neutral gases
Flow rate [l/min]4500
Filter grade [µm]40
Betriebsdruck max [bar]20
Pneumatic connectionG1
Temperaturbereich-10-60 °C
Temperature (max.)60
