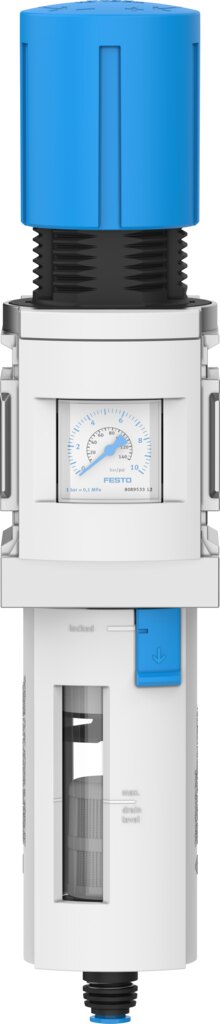

Filter regulator G1/2, 40 µm, 0.5 to 12 bar MS6-LFR-1/2-D7-E-R-V-RG-AS-UL1 - Festo 610338
The filter regulator MS6-LFR-1/2-D7-E-R-V-RG-AS-UL1 cleans the compressed air and keeps the output pressure constant, regulation range 0.5 to 12 bar. It adds 40 µm grade of filtration and G1/2 ports. Pressure indicator: red/green scale.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With the Festo MS6-LFR-1/2-D7-E-R-V-RG-AS-UL1, compressed air is filtered to 40 µm and regulated within 0.5 to 12 bar.
Benefits
- Grade of filtration 40 µm
- Pressure regulation range 0.5 to 12 bar
Applications
The MS6-LFR-1/2-D7-E-R-V-RG-AS-UL1 sits in the supply line upstream of cylinders and valves and protects them from dirt and water.
Technical data
| Type | MS6-LFR-1/2-D7-E-R-V-RG-AS-UL1 |
|---|---|
| Festo part number | 610338 |
| Size | 6 |
| Series | MS |
| Pneumatic connection, port 1 | G1/2 |
| Pressure regulation range | 0.5 to 12 bar |
| Grade of filtration | 40 µm |
| Pressure indicator | Red/green scale |
| Weight (price list) | 1.1 kg |
| Weight | 1.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS6-LFR-1/2-D7-E-R-V-RG-AS-UL1 |
| Zolltarifnummer | 84811005 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/2 |
| Size BG | 6 |
| Control range max. [bar] | 12 |
| Filter grade [µm] | 40 |
| Pneumatic connection | G1/2 |
