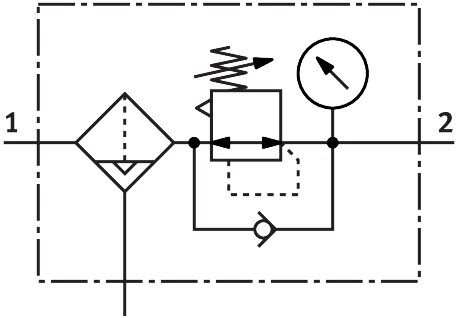

Filter regulator G1/2, 40 µm, 0.3 to 7 bar MS6-LFR-1/2-D6-ERV-RG-AS - Festo 8190245

Festo ✓ Original product Brand new

The filter regulator MS6-LFR-1/2-D6-ERV-RG-AS combines filter and pressure regulator in one housing, regulation range 0.3 to 7 bar. It offers 40 µm grade of filtration, 6200 l/min standard nominal flow rate and G1/2 ports. Condensate drain: fully automatic, manual, non-detenting.

Net
€114.41
excl. VAT
Item FES-8190245
Manufacturer no. MS6-LFR-1/2-D6-ERV-RG-AS
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With the Festo MS6-LFR-1/2-D6-ERV-RG-AS, compressed air is filtered to 40 µm and regulated within 0.3 to 7 bar. Standard nominal flow rate is 6200 l/min, operating pressure 2 to 12 bar.

Benefits

  • 6200 l/min standard nominal flow rate to DIN 1343
  • Grade of filtration 40 µm, condensate separation 75 %
  • Pressure regulation range 0.3 to 7 bar, hysteresis max. 0.25 bar
  • Operating pressure 2 to 12 bar
  • Condensate volume up to 38 ml, drain fully automatic, manual, non-detenting
  • Air purity at output: Compressed air to ISO 8573-1:2010 [7:4:4]

Applications

A typical location for the MS6-LFR-1/2-D6-ERV-RG-AS is the inlet of a machine or valve terminal, where particles and condensate are retained and the pressure is set. Permissible media temperature -10 to 60 °C. Mounting options for the MS6-LFR-1/2-D6-ERV-RG-AS: front panel mounting, inline installation, with accessories.

Technical data

TypeMS6-LFR-1/2-D6-ERV-RG-AS
Festo part number8190245
Size6
SeriesMS
Actuator lockRotary knob with detent, can be closed with accessories
Mounting positionVertical ±5°
Grade of filtration40 µm
Condensate drainFully automatic, manual, non-detenting
DesignFilter regulator with pressure gauge
Max. condensate volume38 ml
Controller functionOutput pressure constant, with secondary exhausting
Bowl guardPlastic bowl guard
Degree of condensate separation75 %
Pressure indicatorRed/green scale
Operating pressure2 to 12 bar
Pressure regulation range0.3 to 7 bar
Max. pressure hysteresis0.25 bar
Standard nominal flow rate (standardised to DIN 1343)6200 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:-], inert gas
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-10 to 60 °C
Suitable for use with foodSee supplementary material information
Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4]
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Pore size40 µm
Product weight875 g
Type of mountingEither: Front panel mounting, inline installation, with accessories
Pneumatic connection, port 1G1/2
Pneumatic connection, port 2G1/2
Note on materialsRoHS compliant
Material control panelPA, POM
Material sealsNBR
Material filterPE
Material housingDie-cast aluminium
Material membraneNBR
Material bowlPC
Material separating platePOM
Weight1 kg
ManufacturerFesto
Hersteller-NrMS6-LFR-1/2-D6-ERV-RG-AS
EAN4052568635572
Zolltarifnummer84811005
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/2
Size BG6
Control range max. [bar]7
Seal materialNBR
Housing materialDie-cast aluminium
MediumCompressed air, neutral gases
Flow rate [l/min]6200
Filter grade [µm]40
Betriebsdruck max [bar]12
Pneumatic connectionG1/2
Temperaturbereich-10-60 °C
Temperature (max.)60
