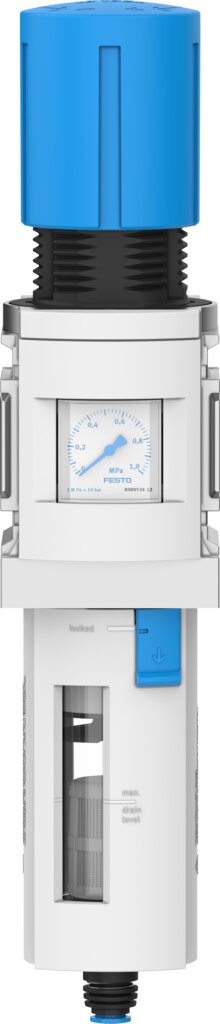

Filter regulator 40 µm 0.3 to 7 bar MS6-LFR-1/2-D6-E-R-V-MPA-AS - Festo 579031
The filter regulator MS6-LFR-1/2-D6-E-R-V-MPA-AS combines filter and pressure regulator with a 40 µm grade of filtration, the output pressure can be set within 0.3 to 7 bar. At a glance: size 6 of the MS series and port G1/2.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The key values of the filter regulator MS6-LFR-1/2-D6-E-R-V-MPA-AS: grade of filtration 40 µm, pressure regulation range 0.3 to 7 bar and port G1/2. The filter regulator MS6-LFR-1/2-D6-E-R-V-MPA-AS combines filter and pressure regulator with a 40 µm grade of filtration, the output pressure can be set within 0.3 to 7 bar.
Advantages
- Grade of filtration 40 µm.
- Output pressure adjustable from 0.3 to 7 bar.
- Pressure indication: with pressure gauge.
- Pneumatic connection G1/2.
Application
The filter regulator MS6-LFR-1/2-D6-E-R-V-MPA-AS combines filter and pressure regulator in one device and saves space in the service unit.
Technical data
| Type | MS6-LFR-1/2-D6-E-R-V-MPA-AS |
|---|---|
| Series | MS |
| Size | 6 |
| Pneumatic connection, port 1 | G1/2 |
| Pneumatic connection, port 2 | G1/2 |
| Pressure regulation range | 0.3 to 7 bar |
| Grade of filtration | 40 µm |
| Material bowl | PC |
| Bowl guard | Plastic bowl guard |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) | With pressure gauge |
| Weight (price list) | 1.1 kg |
| Weight | 1.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS6-LFR-1/2-D6-E-R-V-MPA-AS |
| Zolltarifnummer | 84811005 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/2 |
| Size BG | 6 |
| Control range max. [bar] | 7 |
| Filter grade [µm] | 40 |
| Druckregelbereich [bar] | 0,3 bis 7 |
| Pneumatic connection | G1/2 |
