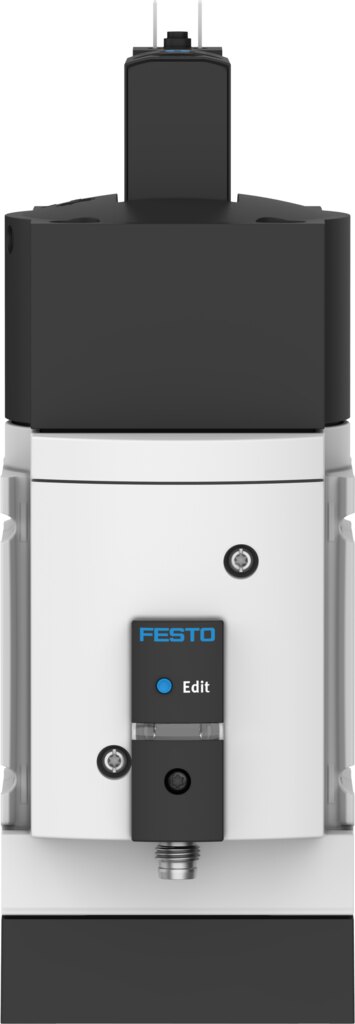

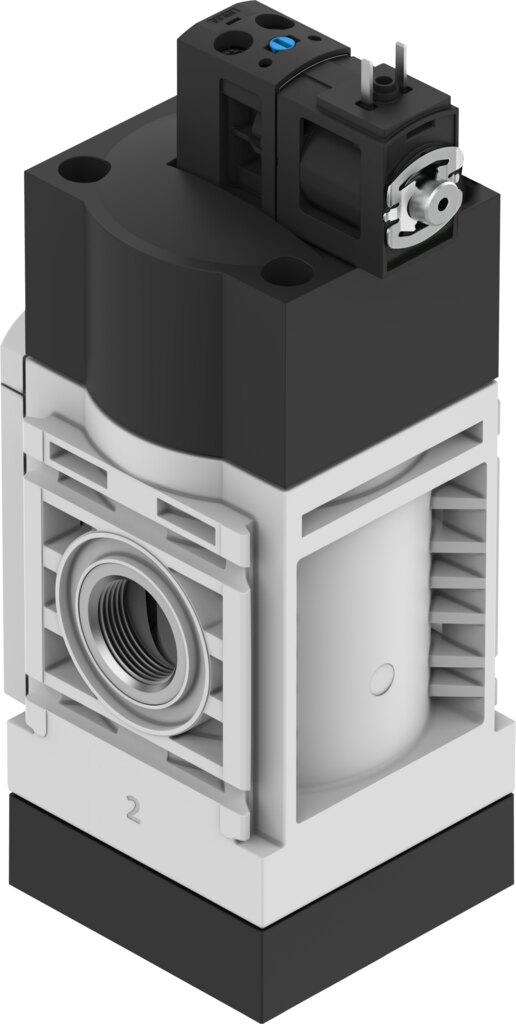

Soft-start/quick exhaust valve G1/2, 24 V DC, 3/2-way MS6-EDE-1/2-V24-AD7-B - Festo 8201358

Festo ✓ Original product Brand new

The soft-start/quick exhaust valve MS6-EDE-1/2-V24-AD7-B builds up the system pressure gradually when switched on. It offers 5000 l/min standard nominal flow rate, 4000 l/min when exhausting and G1/2 ports. Electrically piloted, coil 24 V DC.

Net
€347.22
excl. VAT
Item FES-8201358
Manufacturer no. MS6-EDE-1/2-V24-AD7-B
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo MS6-EDE-1/2-V24-AD7-B builds up the system pressure gradually when switched on: 3/2-way, single solenoid, closed, operating pressure 3 to 7 bar.

At a glance

  • 5000 l/min standard nominal flow rate to DIN 1343
  • Exhaust at 4000 l/min from 6 to 0 bar
  • Switch-on time 31 ms
  • Coil 24 V DC: 2.3 W
  • Operating pressure 3 to 7 bar
  • Degree of protection IP40

Applications

The MS6-EDE-1/2-V24-AD7-B provides a controlled pressure rise when the machine starts up.

Technical data

TypeMS6-EDE-1/2-V24-AD7-B
Festo part number8201358
Size6
Grid dimension62 mm
Exhaust-air functionCannot be throttled
Type of actuationElectrical
Mounting positionAny
Selection of additional functionsWith silencer
SeriesMS
Manual overrideDetenting, Non-detenting
DesignPoppet valve, electrically actuated
Type of resetMechanical spring
Type of pilotingPiloted
Pilot air supplyInternal

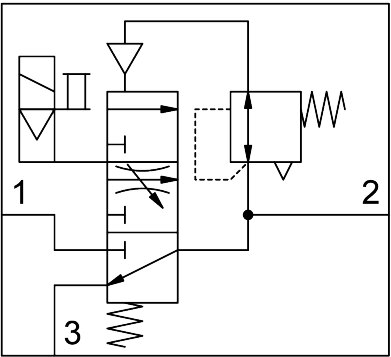

Valve function3/2-way, single solenoid, closed
OverlapUnderlap
Pressure indicatorWith pressure sensor with operational status indicator
Switching position indicatorWith accessories
Operating pressure3 to 7 bar
b value0.46
C value23.9 l/sbar
Standard flow rate, exhaust from 6 to 0 bar4000 l/min
Standard nominal flow rate (standardised to DIN 1343)5000 l/min
Switch-on time31 ms
Characteristic coil data24 V DC: 2.3 W
Permissible voltage fluctuations±10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1
Storage temperature-10 to 60 °C
Media temperature0 to 50 °C
Degree of protectionIP40
Ambient temperature0 to 50 °C
Product weight499 g
Electrical connectionType C, to EN 175301-803
Signal status displayWith accessories
Type of mountingVia wall/surface bracket
Pneumatic connection, port 1G1/2
Pneumatic connection, port 2G1/2
Pneumatic connection, port 3G1/2
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingReinforced PA
Weight0.55 kg
ManufacturerFesto
Hersteller-NrMS6-EDE-1/2-V24-AD7-B
EAN4052568785567
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/2
Size BG6
Seal materialHNBR, NBR
MediumCompressed air
Function3/2 closed monostable
Flow rate [l/min]5000
Actuation typeElectrical
Operating voltage24 V DC
Betriebsdruck max [bar]7
Pneumatic connectionG1/2
Protection ratingIP40
Temperaturbereich0-50 °C
Temperature (max.)50
