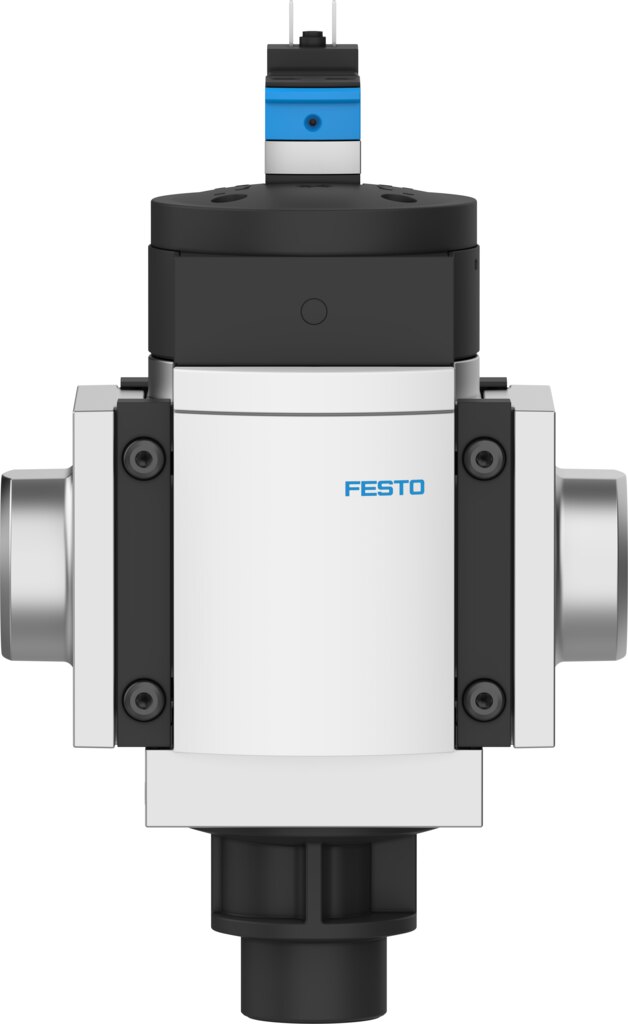

On/off valve G3/4, 24 V DC, 3/2-way MS6-EE-AGE-V24 - Festo 8232873

Festo ✓ Original product Brand new

The on/off valve MS6-EE-AGE-V24 switches the compressed air supply of the system on and exhausts it when switched off. It offers 7000 l/min standard nominal flow rate and G3/4 ports. Electrically piloted, coil 24 V DC.

Net
€166.73
excl. VAT
Item FES-8232873
Manufacturer no. MS6-EE-AGE-V24
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo MS6-EE-AGE-V24 switches the compressed air supply of the system on and exhausts it when switched off: 3/2-way, single solenoid, closed, operating pressure 4 to 18 bar.

At a glance

  • 7000 l/min standard nominal flow rate to DIN 1343
  • Coil 24 V DC: 1.5 W
  • Operating pressure 4 to 18 bar
  • Degree of protection IP65
  • Media temperature -10 to 60 °C

Applications

The MS6-EE-AGE-V24 belongs at the inlet of the service unit combination and depressurises the system for maintenance and downtime.

Technical data

TypeMS6-EE-AGE-V24
Festo part number8232873
SeriesMS
Size6
DesignPiston gate valve
Type of actuationElectrical
Exhaust-air functionCannot be throttled
Manual overrideDetenting, Non-detenting
Type of resetMechanical spring
Type of pilotingPiloted
Valve function3/2-way, single solenoid, closed
Operating pressure4 to 18 bar
OverlapOverlap
C value29 l/sbar
b value0.4
Standard nominal flow rate (standardised to DIN 1343)7000 l/min
Duty cycle100%
Characteristic coil data24 V DC: 1.5 W
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], inert gas
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Degree of protectionIP65
Ambient temperature-10 to 60 °C
Suitable for use with foodSee supplementary material information
Type of mountingEither: Inline installation, with accessories
Mounting positionAny
Flow directionNon-reversible
Product weight1040 g
Pneumatic connection, port 1G3/4
Pneumatic connection, port 2G3/4
Pneumatic connection, port 3G1/2
Pilot air supplyInternal
Electrical connectionTo EN 175301-803
Material sealsNBR
Material housingDie-cast aluminium
Weight1.2 kg
ManufacturerFesto
Hersteller-NrMS6-EE-AGE-V24
EAN4052568778194
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 3/4
Size BG6
Seal materialNBR
Housing materialDie-cast aluminium
MediumCompressed air, neutral gases
Function3/2 closed monostable
Flow rate [l/min]7000
Actuation typeElectrical
Operating voltage24 V DC
Betriebsdruck max [bar]18
Pneumatic connectionG3/4
Protection ratingIP65
Temperaturbereich-10-60 °C
Temperature (max.)60
