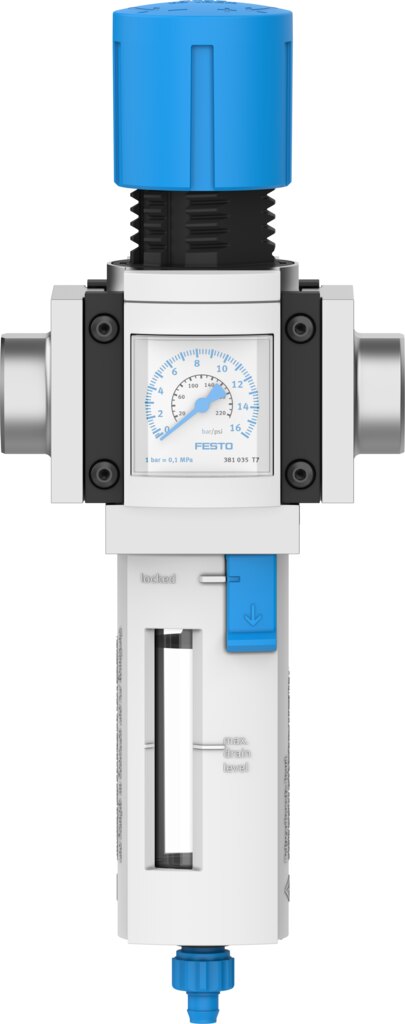

Filter regulator G3/8, 40 µm, 0.5 to 12 bar MS4-LFR-AGC-D7-E-R-M - Festo 8232865

Festo ✓ Original product Brand new

The filter regulator MS4-LFR-AGC-D7-E-R-M filters the compressed air and regulates it to a constant output pressure, regulation range 0.5 to 12 bar. Further data: 40 µm grade of filtration, 1500 l/min standard nominal flow rate and G3/8 ports. Condensate drain: manual, rotating.

Net
€98.69
excl. VAT
Item FES-8232865
Manufacturer no. MS4-LFR-AGC-D7-E-R-M
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With the Festo MS4-LFR-AGC-D7-E-R-M, compressed air is filtered to 40 µm and regulated within 0.5 to 12 bar. Standard nominal flow rate is 1500 l/min, operating pressure 0.8 to 14 bar.

At a glance

  • 1500 l/min standard nominal flow rate to DIN 1343
  • Grade of filtration 40 µm, condensate separation 75 %
  • Pressure regulation range 0.5 to 12 bar, hysteresis max. 0.25 bar
  • Operating pressure 0.8 to 14 bar
  • Condensate volume up to 19 ml, drain manual, rotating
  • Air purity at output: Compressed air to ISO 8573-1:2010 [7:4:4]

Applications

A typical location for the MS4-LFR-AGC-D7-E-R-M is the inlet of a machine or valve terminal, where particles and condensate are retained and the pressure is set. Permissible media temperature -10 to 60 °C. Mounting of the MS4-LFR-AGC-D7-E-R-M: with accessories.

Technical data

TypeMS4-LFR-AGC-D7-E-R-M
Festo part number8232865
Size4
SeriesMS
Actuator lockRotary knob with detent
Mounting positionVertical ±5°
Grade of filtration40 µm
Condensate drainManual, rotating
DesignFilter regulator with pressure gauge
Maximum condensate volume19 ml
Controller functionOutput pressure constant, with secondary exhausting, with return flow function
Bowl guardPlastic bowl guard
Degree of condensate separation75 %
Pressure indicatorWith pressure gauge
Operating pressure0.8 to 14 bar
Pressure regulation range0.5 to 12 bar
Maximum pressure hysteresis0.25 bar
Standard nominal flow rate (standardised to DIN 1343)1500 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [-:4:-], inert gas
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-10 to 60 °C
Suitable for use with foodSee supplementary material information
Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4]
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Pore size40 µm
Product weight403 g
Type of mountingWith accessories
Pneumatic connection, port 1G3/8
Pneumatic connection, port 2G3/8
Note on materialsRoHS compliant
Material sub-baseDie-cast aluminium
Material control panelPA, POM
Material sealsNBR
Material filterPE
Material housingDie-cast aluminium
Material membraneNBR
Material bowlPC
Material separating platePOM
Weight0.5 kg
ManufacturerFesto
Hersteller-NrMS4-LFR-AGC-D7-E-R-M
EAN4052568778132
Zolltarifnummer84811005
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 3/8
Size BG4
Control range max. [bar]12
Seal materialNBR
Housing materialDie-cast aluminium
MediumCompressed air, neutral gases
Flow rate [l/min]1500
Filter grade [µm]40
Betriebsdruck max [bar]14
Pneumatic connectionG3/8
Temperaturbereich-10-60 °C
Temperature (max.)60
