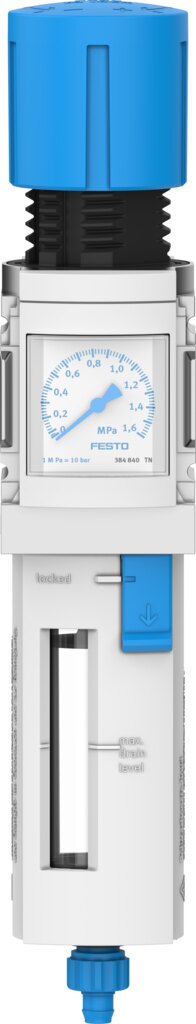

Filter regulator G1/4, 5 µm, 0.5 to 12 bar MS4-LFR-1/4-D7-C-R-M-RG-UL1 - Festo 589524

Festo ✓ Original product Brand new

The filter regulator MS4-LFR-1/4-D7-C-R-M-RG-UL1 filters the compressed air and regulates it to a constant output pressure, regulation range 0.5 to 12 bar. Key data: 5 µm grade of filtration and G1/4 ports. Condensate drain: manual, rotating.

Net
€78.05
excl. VAT
Item FES-589524
Manufacturer no. MS4-LFR-1/4-D7-C-R-M-RG-UL1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With the Festo MS4-LFR-1/4-D7-C-R-M-RG-UL1, compressed air is filtered to 5 µm and regulated within 0.5 to 12 bar.

Why it pays off

  • Grade of filtration 5 µm
  • Pressure regulation range 0.5 to 12 bar

Applications

The MS4-LFR-1/4-D7-C-R-M-RG-UL1 sits in the supply line upstream of cylinders and valves and protects them from dirt and water.

Technical data

TypeMS4-LFR-1/4-D7-C-R-M-RG-UL1
Festo part number589524
Size4
SeriesMS
Pneumatic connection, port 1G1/4
Pressure regulation range0.5 to 12 bar
Grade of filtration5 µm
Condensate drainManual, rotating
ManufacturerFesto
Hersteller-NrMS4-LFR-1/4-D7-C-R-M-RG-UL1
Zolltarifnummer84811005
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/4
Size BG4
Control range max. [bar]12
Filter grade [µm]5
Pneumatic connectionG1/4
