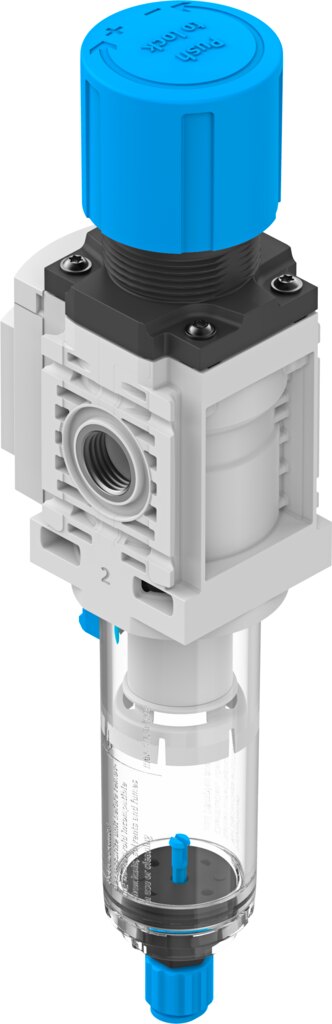

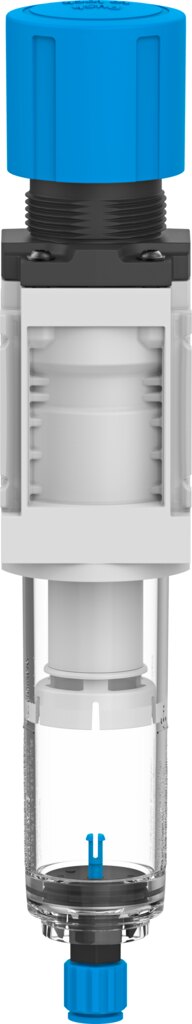

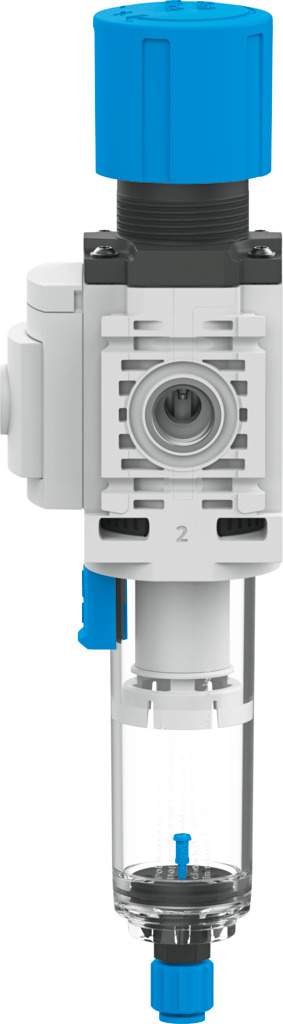

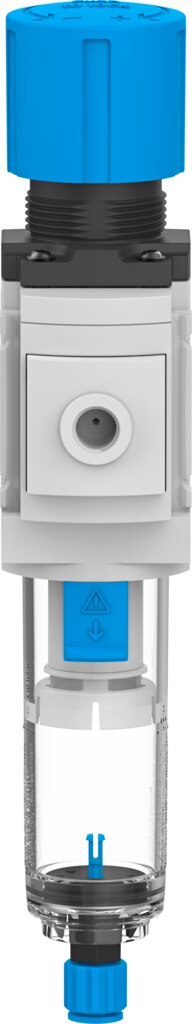

Filter regulator G1/4, 5 µm, 0.3 to 7 bar MS4-LFR-1/4-D6-C-R-M-MPA-AS - Festo 579024

Festo ✓ Original product Brand new

The filter regulator MS4-LFR-1/4-D6-C-R-M-MPA-AS filters the compressed air and regulates it to a constant output pressure, regulation range 0.3 to 7 bar. The data sheet lists 5 µm grade of filtration and G1/4 ports. Condensate drain: manual, rotating.

Net
€61.83
excl. VAT
Item FES-579024
Manufacturer no. MS4-LFR-1/4-D6-C-R-M-MPA-AS
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With the Festo MS4-LFR-1/4-D6-C-R-M-MPA-AS, compressed air is filtered to 5 µm and regulated within 0.3 to 7 bar.

Benefits

  • Grade of filtration 5 µm
  • Pressure regulation range 0.3 to 7 bar

Applications

A typical location for the MS4-LFR-1/4-D6-C-R-M-MPA-AS is the inlet of a machine or valve terminal, where particles and condensate are retained and the pressure is set.

Technical data

TypeMS4-LFR-1/4-D6-C-R-M-MPA-AS
Festo part number579024
Size4
SeriesMS
Pneumatic connection, port 1G1/4
Pressure regulation range0.3 to 7 bar
Grade of filtration5 µm
Condensate drainManual, rotating
Pressure indicatorWith pressure gauge
Weight (price list)0.4 kg
Weight0.4 kg
ManufacturerFesto
Hersteller-NrMS4-LFR-1/4-D6-C-R-M-MPA-AS
Zolltarifnummer84811005
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/4
Size BG4
Control range max. [bar]7
Filter grade [µm]5
Pneumatic connectionG1/4
