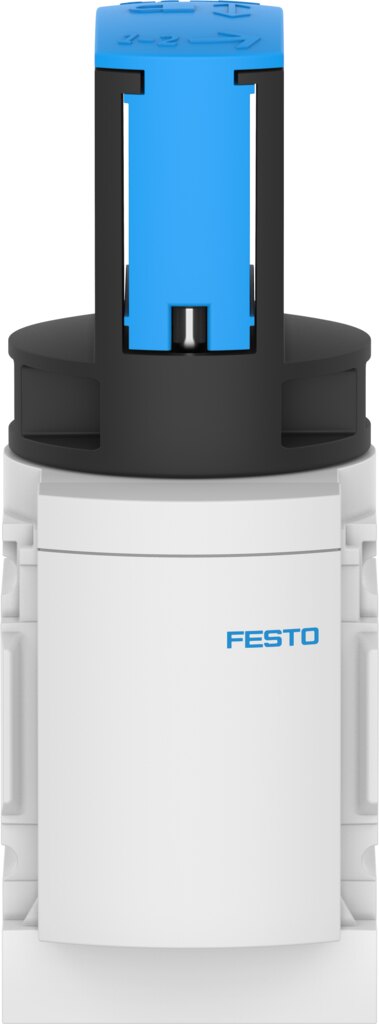

On/off valve G1/4, manual, 3/2-way MS4-EM1-1/4-F1A - Festo 8183561

Festo ✓ Original product Brand new

The on/off valve MS4-EM1-1/4-F1A switches the compressed air supply of the system on and exhausts it when switched off. It offers 2200 l/min standard nominal flow rate and G1/4 ports. It is operated manually.

Net
€79.42
excl. VAT
Item FES-8183561
Manufacturer no. MS4-EM1-1/4-F1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo MS4-EM1-1/4-F1A switches the compressed air supply of the system on and exhausts it when switched off: 3/2-way, double solenoid, operating pressure 0 to 14 bar.

At a glance

  • 2200 l/min standard nominal flow rate to DIN 1343
  • Operating pressure 0 to 14 bar
  • Media temperature -10 to 60 °C

Applications

The MS4-EM1-1/4-F1A separates the machine from the compressed air supply, for example during set-up and service work.

Technical data

TypeMS4-EM1-1/4-F1A
Festo part number8183561
DesignRotary switching valve
Type of actuationManual
Exhaust-air functionCannot be throttled
Type of pilotingDirect
Valve function3/2-way, double solenoid
Operating pressure0 to 14 bar
C value9 l/sbar
b value0.39
Standard nominal flow rate (standardised to DIN 1343)2200 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], inert gas
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364-B1/B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Suitable for use with foodSee supplementary material information
Type of mountingEither: Inline installation, with accessories
Mounting positionAny
Flow directionNon-reversible
Product weight190 g
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/4
Material sealsTPE-U(PU)
Material housingDie-cast aluminium
Weight0.24 kg
ManufacturerFesto
Hersteller-NrMS4-EM1-1/4-F1A
EAN4052568630218
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/4
Seal materialTPE-U(PU)
Housing materialDie-cast aluminium
MediumCompressed air, neutral gases
Function3/2 bistable
Flow rate [l/min]2200
Actuation typeManually
SeriesMS4
Betriebsdruck max [bar]14
Pneumatic connectionG1/4
Temperaturbereich-10-60 °C
Temperature (max.)60

Downloads

Questions about this item

Any other question?

Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
