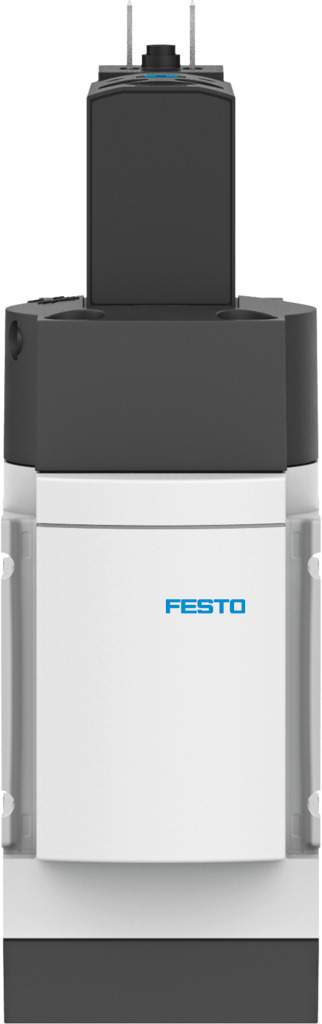

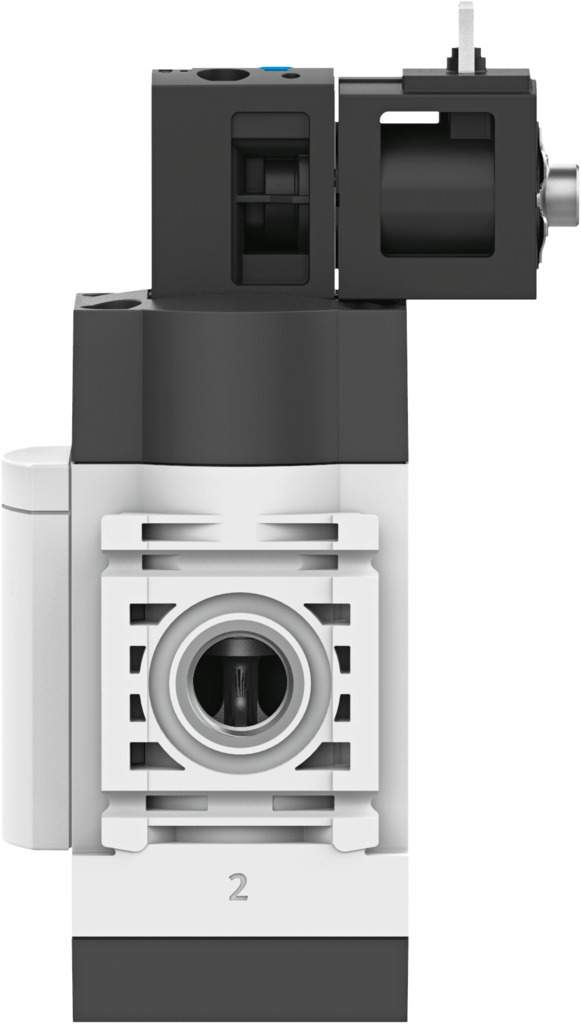

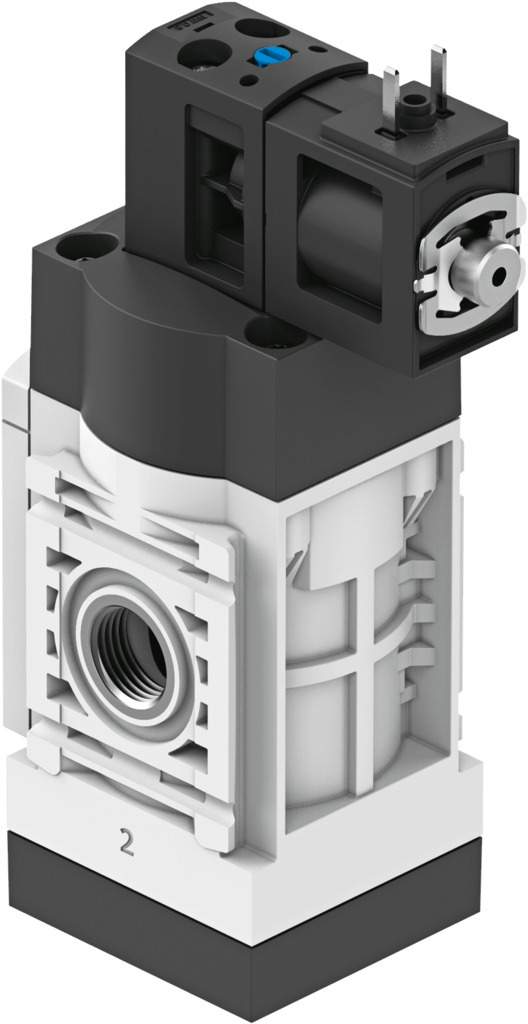

Soft-start valve G1/4, 24 V DC, 3/2-way MS4-EDE-1/4-V24-B - Festo 8080815

Festo ✓ Original product Brand new

The soft-start valve MS4-EDE-1/4-V24-B builds up the system pressure gradually when switched on. It offers 2000 l/min standard nominal flow rate, 1600 l/min when exhausting and G1/4 ports. Electrically piloted, coil 24 V DC.

Net
€186.51
excl. VAT
Item FES-8080815
Manufacturer no. MS4-EDE-1/4-V24-B
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo MS4-EDE-1/4-V24-B builds up the system pressure gradually when switched on: 3/2-way, single solenoid, closed, operating pressure 3 to 7 bar.

At a glance

  • 2000 l/min standard nominal flow rate to DIN 1343
  • Exhaust at 1600 l/min from 6 to 0 bar
  • Switch-on time 31 ms
  • Coil 24 V DC: 2.3 W
  • Operating pressure 3 to 7 bar
  • Degree of protection IP65

Applications

Installed in an MS4 service unit combination, the MS4-EDE-1/4-V24-B protects drives and workpieces at start-up.

Technical data

TypeMS4-EDE-1/4-V24-B
Festo part number8080815
Size4
Grid dimension40 mm
Exhaust-air functionCannot be throttled
Type of actuationElectrical
Mounting positionAny
Selection of additional functionsWith silencer
SeriesMS
Manual overrideDetenting, Non-detenting
DesignPoppet valve, electrically actuated
Type of resetMechanical spring
Type of pilotingPiloted
Pilot air supplyInternal

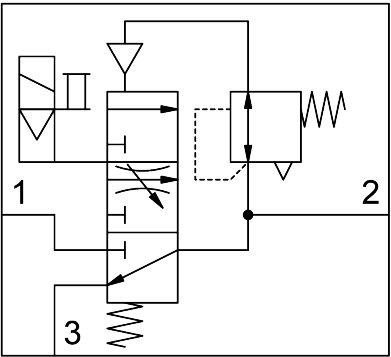

Valve function3/2-way, single solenoid, closed
OverlapUnderlap
Switching position indicatorWith accessories
Operating pressure3 to 7 bar
b value0.45
C value8.52 l/sbar
Standard flow rate, exhaust from 6 to 0 bar1600 l/min
Standard nominal flow rate (standardised to DIN 1343)2000 l/min
Switch-on time31 ms
Characteristic coil data24 V DC: 2.3 W
Permissible voltage fluctuations±10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1
Storage temperature-10 to 60 °C
Media temperature-5 to 50 °C
Degree of protectionIP65
Ambient temperature-5 to 50 °C
Product weight196 g
Electrical connectionType C, to EN 175301-803
Signal status displayWith accessories
Type of mountingVia wall/surface bracket
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/4
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingReinforced PA
Weight0.23 kg
ManufacturerFesto
Hersteller-NrMS4-EDE-1/4-V24-B
EAN4052568477936
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/4
Size BG4
Seal materialHNBR, NBR
MediumCompressed air
Function3/2 closed monostable
Flow rate [l/min]2000
Actuation typeElectrical
Operating voltage24 V DC
Betriebsdruck max [bar]7
Pneumatic connectionG1/4
Protection ratingIP65
Temperature (max.)50
