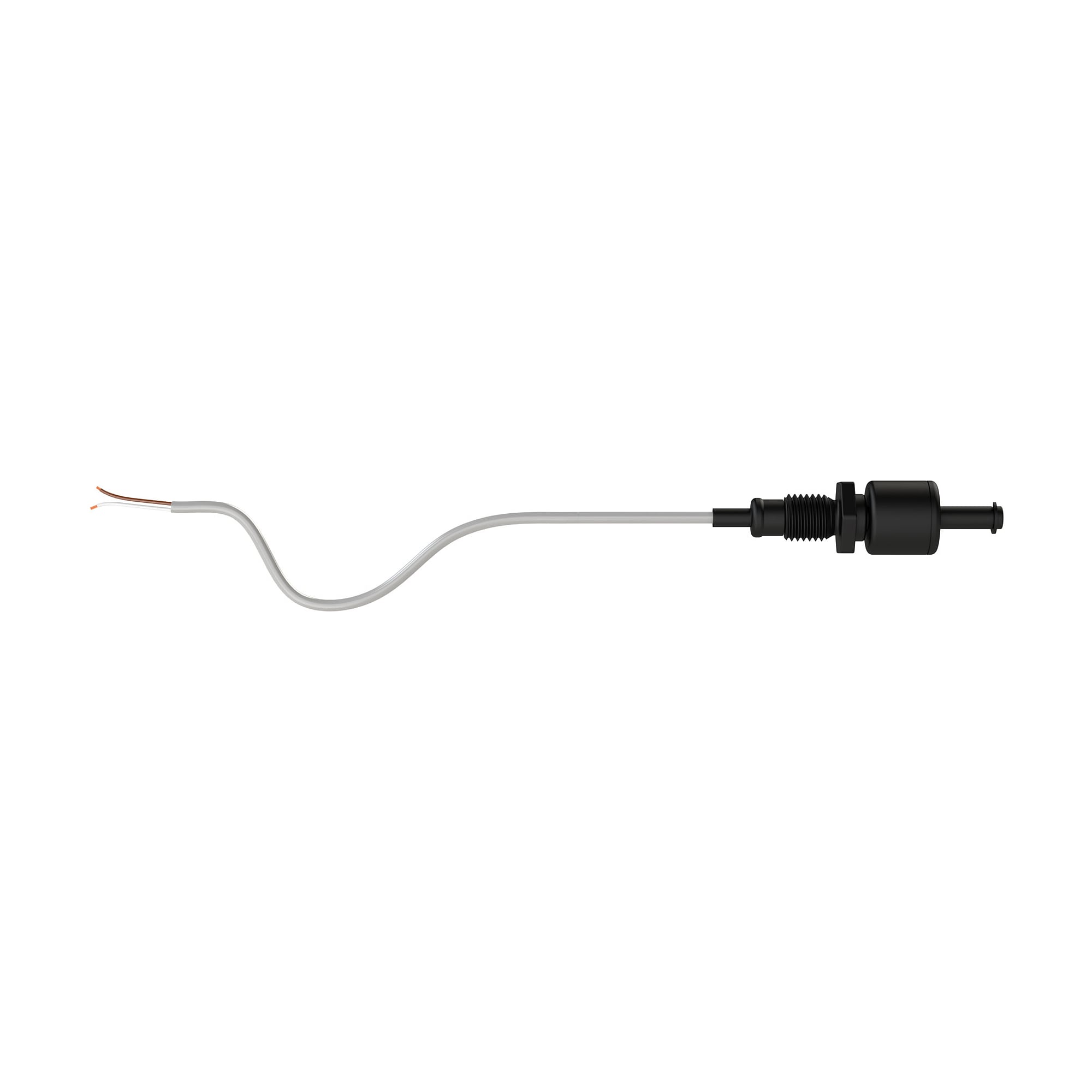

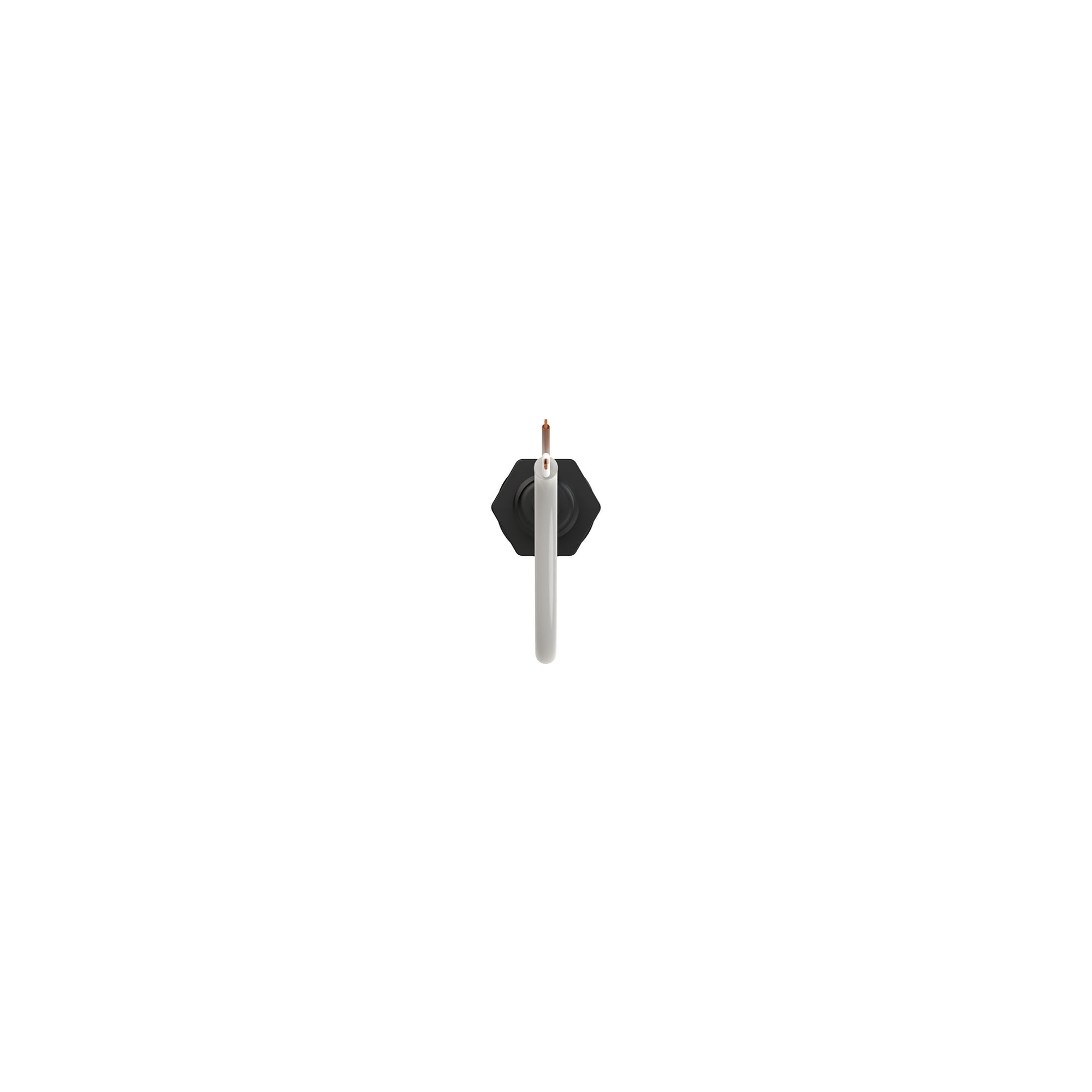

Mini float switch RLS-7000, vertical installation, sliding tube 50 mm, M16x2, polypropylene, type RLS-7000.PP - Riegler 189270
The RLS-7000 mini float switch in polypropylene monitors small tanks for dry running and overfilling, vertical installation, thread M16x2. Rotating it by 180° turns the normally open contact into a normally closed one, so one RLS-7000 covers both switching functions.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The RLS-7000 mini float switch in polypropylene monitors small tanks for dry running and overfilling, vertical installation, thread M16x2. Rotating it by 180° turns the normally open contact into a normally closed one, so one RLS-7000 covers both switching functions. Reed contacts reach up to one billion switching cycles depending on the application, medium temperature -25 to 80 °C, operating pressure up to 4 bar. Cable outlet with 1 m PVC cable, protection IP 67.
Advantages
- Vertical installation, thread M16x2
- NO contact, usable as NC contact by rotating 180°
- Housing polypropylene, protection IP 67
- Medium temperature -25 to 80 °C
- 1 m PVC cable
Uses
- Dry-run and overfill protection for small tanks
- Original equipment in machine and appliance building
Technical data
| Type no. | RLS-7000.PP |
|---|---|
| Switching function | 1x NO contact |
| Sliding tube length | 50 mm |
| Housing | polypropylene |
| Mounting position | vertical |
| Thread | M16x2 male |
| Cable length | 1 m |
| Electrical connection | cable output |
| Material cable | PVC |
| Output signal | 1 switching point |
| Maximum operating pressure | 4 bar |
| Medium temperature | -25 to 80 °C |
| Ambient temperature | -25 to 80 °C |
| Degree of protection | IP 67 |
| Weight | 0.04 kg |
| Manufacturer | Riegler |
| Hersteller-Nr | RLS-7000.PP |
| EAN | 4047322977197 |
| Zolltarifnummer | 85365080 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Germany |
| Housing material | Polypropylene |
| Function | NO contact |
| Thread type | External thread |
| Betriebsdruck max [bar] | 4 |
| Protection rating | IP67 |
| Temperature (max.) | 80 |
