Air take-off 2-way »SYNTESI«, size 2, G 1/2, outlets 2 x G 3/8 - Riegler 144892

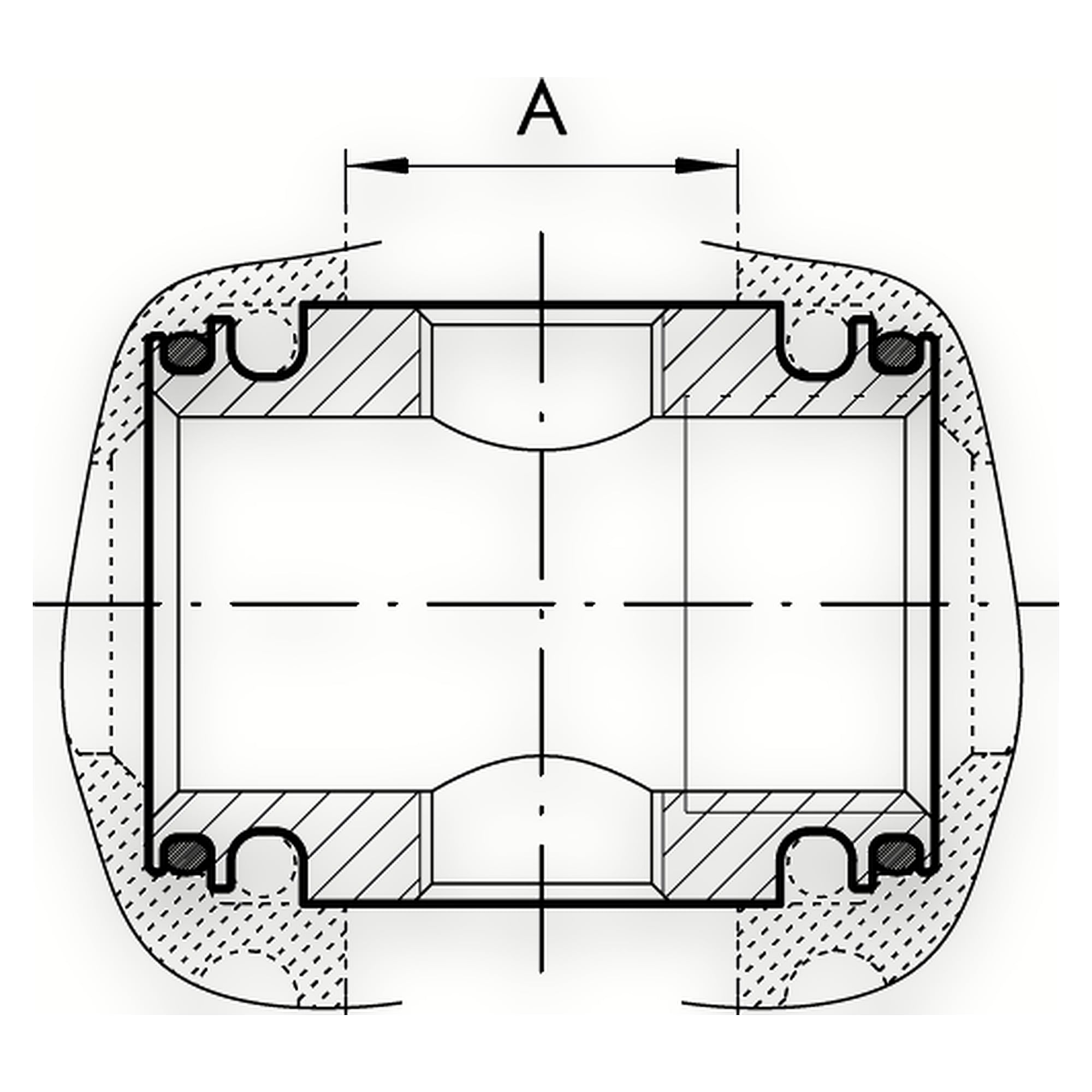

Air take-off 2-way »SYNTESI«, size2, G 1/2, outlets 2 x G 3/8, p1 = max. 13 bar, T = -10 … 50 °C Air take-off for mounting between two »SYNTESI« modules. The 2-way version, made of nickel-plated brass, has two threaded ports, one facing upwards and one downwards. In the 4-way version, made of technopolymer, there is a threaded connection on each side. Thus, a total of four air outlets are available. The air take-off can also be used for air supply in order to achieve a setup with flow in both directions. ATEX version on request!

Standards and origin

• Customs tariff number: 84818099
• Country of origin: IT

About System extensions

System extensions add functions to an existing air preparation unit that filters and regulators do not cover, for example an electrically actuated switching valve that turns plant sections on and off and exhausts them when switched off. The 233 items cover threads from G 1/8 to G 1 and run on an inlet pressure of 9 to 16 bar maximum.

What matters when choosing

• Frame size and thread have to match the existing unit. The range documents G 1/8 to G 1 plus size designations from 0 to 600.
• The series decides whether a module can be added to the assembly. Available lines include FUTURA and FUTURA-mini, SYNTESI, multifix and multifix-mini, variobloc as well as G, G-mini and GA-mini. A module only fits the line it was designed for.
• Choose flow rate from the air demand of the installation rather than from the thread alone. Documented values run from 1400 to 18000 l/min.
• Compare the maximum inlet pressure of 9 to 16 bar against your line pressure. Individual modules are rated for an operating pressure of up to 25 bar.
• Select the housing to suit the environment and the mechanical load. Documented materials are PA66 GF60 and technopolymer, die-cast aluminium and zinc, aluminium and nickel-plated brass.

Typical applications

• Switching plant sections on and off from an electrical signal, with simultaneous exhaust
• Extending existing air preparation units in compressed air distribution
• Making machines pressure-free while they are at standstill
• Distribution points on production lines with several consumers
• Installations that carry neutral gases alongside compressed air

Documented data include protection class IP 65 or IP 65 (P 54) to DIN 40050, NBR seals and medium temperatures from -10 °C to 60 or 70 °C depending on the module. Production takes place in Germany, Italy, Poland and China.
