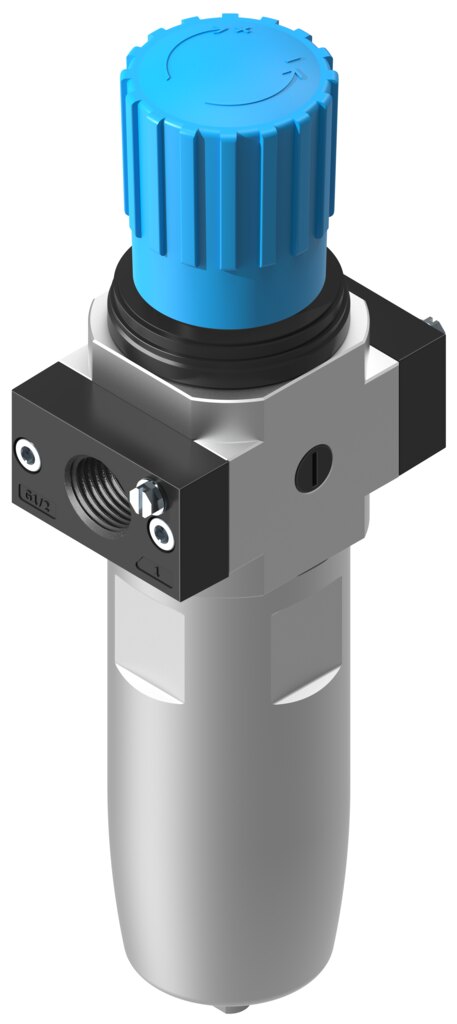

Filter regulator ATEX 0.5 to 12 bar 1/4 NPT 5 µm without pressure gauge LFR-N1/4-D-5M-O-MIDI-T3-EX4 - Festo 5271800

Festo ✓ Original product Brand new

Filtering and pressure regulation in one unit, approved for hazardous areas: the LFR-N1/4-D-5M-O-MIDI-T3-EX4 regulates from 0.5 to 12 bar, filters at 5 µm and is marked II 2G and II 2D. A wrought aluminium metal bowl, CRC 3, 1/4 NPT connection and an ambient range of -40 to 80 °C make the LFR-N1/4-D-5M-O-MIDI-T3-EX4 fit for harsh environments.

Net
€126.56
excl. VAT
Item FES-5271800
Manufacturer no. LFR-N1/4-D-5M-O-MIDI-T3-EX4
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Festo filter regulator LFR-N1/4-D-5M-O-MIDI-T3-EX4: pressure regulation range 0.5 to 12 bar, grade of filtration 5 µm, standard nominal flow 1,600 l/min.

Benefits

  • 5 µm grade of filtration, air purity class at output [6:8:4] to ISO 8573-1:2010
  • Standard nominal flow rate 1,600 l/min to DIN 1343
  • Manual rotary condensate drain, bowl for max. 42 ml of condensate
  • Gauge port G1/4 prepared, display selectable as required
  • Rotary knob with detent, set pressure stays fixed
  • Pressure regulation range 0.5 to 12 bar, max. pressure hysteresis 0.2 bar, input pressure up to 20 bar

Applications

The LFR-N1/4-D-5M-O-MIDI-T3-EX4 is approved for Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX). In the hazardous area the LFR-N1/4-D-5M-O-MIDI-T3-EX4 is rated for an ambient temperature of -40 to 80 °C, and Festo specifies inert gases as operating medium. The LFR-N1/4-D-5M-O-MIDI-T3-EX4 is mounted with accessories, mounting position vertical ± 5°. Lubrication is possible with the LFR-N1/4-D-5M-O-MIDI-T3-EX4, but then remains permanently necessary.

Technical data

FeatureValue
TypeLFR-N1/4-D-5M-O-MIDI-T3-EX4
Festo part number5271800
SizeMidi
SeriesD
Actuator lockrotary knob with detent
Mounting positionvertical ± 5°
Grade of filtration5 µm
Condensate drainmanual, rotating
Designfilter regulator without pressure gauge
Max. condensate volume42 ml
Bowl guardintegrated as metal bowl
Pressure gaugeprepared for G1/4
Operating pressure1 to 20 bar
Pressure regulation range0.5 to 12 bar
Max. pressure hysteresis0.2 bar
Standard nominal flow rate1600 l/min (to DIN 1343)
CE marking (see declaration of conformity)to EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity)to UK Ex regulations
Explosion protection certification outside the EUEPL Gb (GB)
Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)
ATEX category gasII 2G
ATEX category dustII 2D
Type of ignition protection, gasEx h IIC T6 Gb X
Type of ignition protection, dustEx h IIIC T85°C Db X
Ex ambient temperature-40 to 80 °C
Operating mediuminert gases
Note on operating and pilot mediumlubricated operation possible (then required for all further operation)
Corrosion resistance class CRC3 - high corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Storage temperature-40 to 80 °C
Air purity class at outputcompressed air to ISO 8573-1:2010 [6:8:4], inert gases
Medium temperature-40 to 80 °C
Ambient temperature-40 to 80 °C
Product weight1400 g
Type of mountingwith accessories
Pneumatic connection, port 11/4 NPT
Pneumatic connection, port 21/4 NPT
Note on materialsRoHS-compliant
Housing materialdie-cast zinc
Bowl materialwrought aluminium alloy
Weight1.6 kg
ManufacturerFesto
Hersteller-NrLFR-N1/4-D-5M-O-MIDI-T3-EX4
EAN4052568422523
Zolltarifnummer84811005
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialDie-cast zinc
BehälterausführungMetall
ThreadNPT 1/4
Size BGMidi
Control range max. [bar]12
Flow rate [l/min]1600
Filter grade [µm]5
Druckregelbereich [bar]0,5-12
Medientemperatur [°C]-40 bis 80
Betriebsdruck max [bar]20
Pneumatic connectionNPT 1/4
Temperaturbereich-40-80 °C
Temperature (max.)80
