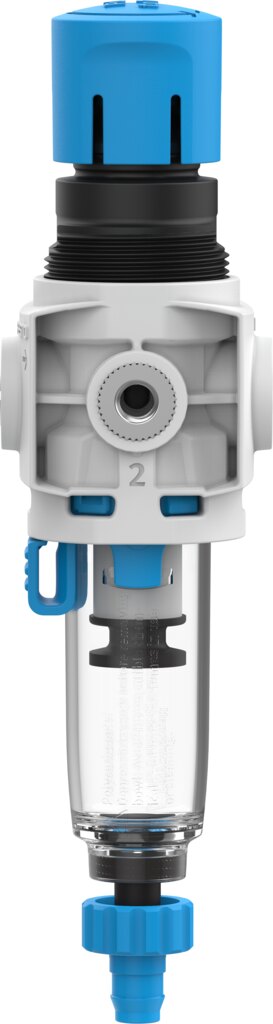

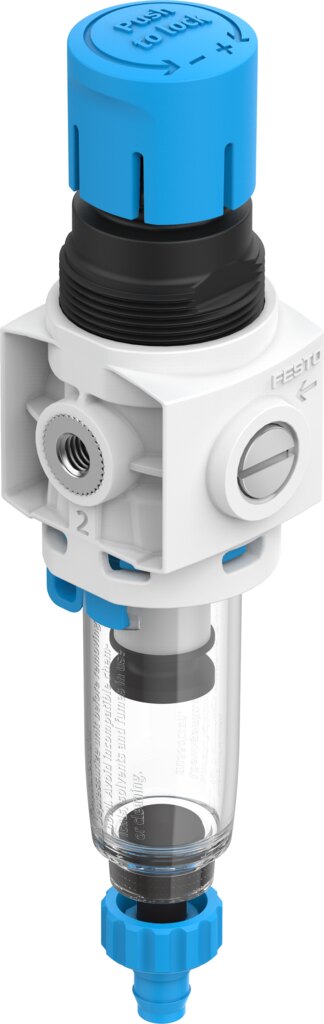

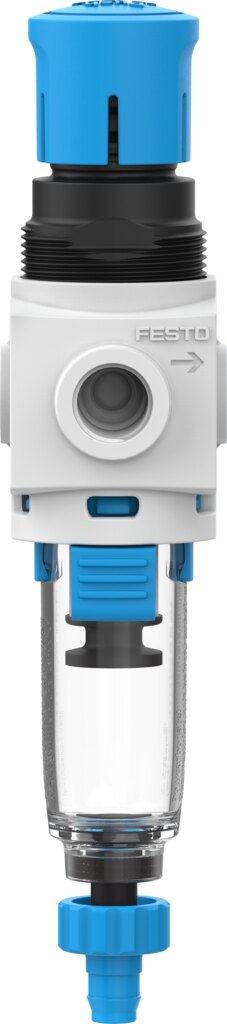

Filter regulator 0.5 to 7 bar M5 5 µm without pressure gauge MS2-LFR-M5-D6-C-P-M-A8-B - Festo 8086643

Festo ✓ Original product Brand new

For cleanroom systems and small consumers the MS2-LFR-M5-D6-C-P-M-A8-B supplies compressed air filtered to 5 µm at an adjustable 0.5 to 7 bar output pressure. Cleanroom suitability class 6 to ISO 14644-1, constant output pressure with secondary exhaust and reverse flow function.

Net
€34.51
excl. VAT
Item FES-8086643
Manufacturer no. MS2-LFR-M5-D6-C-P-M-A8-B
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Festo filter regulator MS2-LFR-M5-D6-C-P-M-A8-B: pressure regulation range 0.5 to 7 bar, grade of filtration 5 µm, standard nominal flow 140 l/min.

Benefits

  • 5 µm grade of filtration, air purity class at output [6:4:4] to ISO 8573-1:2010
  • Pressure regulation range 0.5 to 7 bar, max. pressure hysteresis 0.25 bar, input pressure up to 10 bar
  • Standard nominal flow rate 140 l/min to DIN 1343
  • Manual rotary condensate drain, bowl for max. 3 ml of condensate
  • Gauge port G1/8 prepared, display selectable as required
  • Rotary knob with detent, set pressure stays fixed

Applications

The MS2-LFR-M5-D6-C-P-M-A8-B suits small consumers and individual devices needing 140 l/min. Port M5 on both sides, ambient temperature -5 to 50 °C. The MS2-LFR-M5-D6-C-P-M-A8-B is mounted with accessories, mounting position vertical ± 5°.

Technical data

FeatureValue
TypeMS2-LFR-M5-D6-C-P-M-A8-B
Festo part number8086643
Size2
SeriesMS
Actuator lockrotary knob with detent
Mounting positionvertical ± 5°
Grade of filtration5 µm
Condensate drainmanual, rotating
Designfilter regulator without pressure gauge
Max. condensate volume3 ml

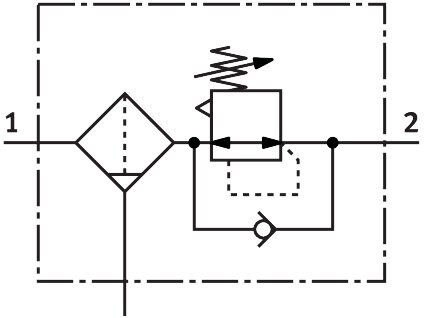

Regulator functionoutput pressure constant, with secondary exhaust, with reverse flow function
Pressure gaugeprepared for G1/8
Operating pressure1 to 10 bar
Pressure regulation range0.5 to 7 bar
Max. pressure hysteresis0.25 bar
Standard nominal flow rate140 l/min (to DIN 1343)
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4], inert gases
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability (measured to ISO 14644-14)class 6 to ISO 14644-1
Storage temperature-5 to 50 °C
Air purity class at outputcompressed air to ISO 8573-1:2010 [6:4:4]
Medium temperature-5 to 50 °C
Ambient temperature-5 to 50 °C
Product weight39 g
Type of mountingwith accessories
Pneumatic connection, port 1M5
Pneumatic connection, port 2M5
Note on materialsRoHS-compliant
Seal materialNBR
Rotary knob materialPOM
Spring materialhigh-alloy steel
Filter materialPE
Housing materialreinforced PA
Diaphragm materialNBR
Bowl materialPC
Separating plate materialPOM
Valve stem materialwrought aluminium alloy, NBR
Weight0.044 kg
ManufacturerFesto
Hersteller-NrMS2-LFR-M5-D6-C-P-M-A8-B
EAN4052568451516
Zolltarifnummer84811005
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPA
ThreadM5
Size BG2
Control range max. [bar]7
MediumCompressed air, neutral gases
Flow rate [l/min]140
Filter grade [µm]5
Druckregelbereich [bar]0,5-7
Medientemperatur [°C]-5 bis 50
Betriebsdruck max [bar]10
Pneumatic connectionM5
Temperature (max.)50
