Single Valves
Valves and Valve Systems
Single valves control the compressed-air flow to pneumatic actuators and are tubed individually or mounted on sub-bases. They are available as 3/2, 5/2 and 5/3 way valves in monostable and bistable versions and are usually actuated electrically through 24 V solenoid coils.
This range covers more than 1,900 items structured by Aventics product series, including CL03-EV, LS04, the 840, 740 and 490 series as well as compact types such as CD04, CD07 and CD12. The series cover different nominal sizes, connection patterns and control concepts.
Categories

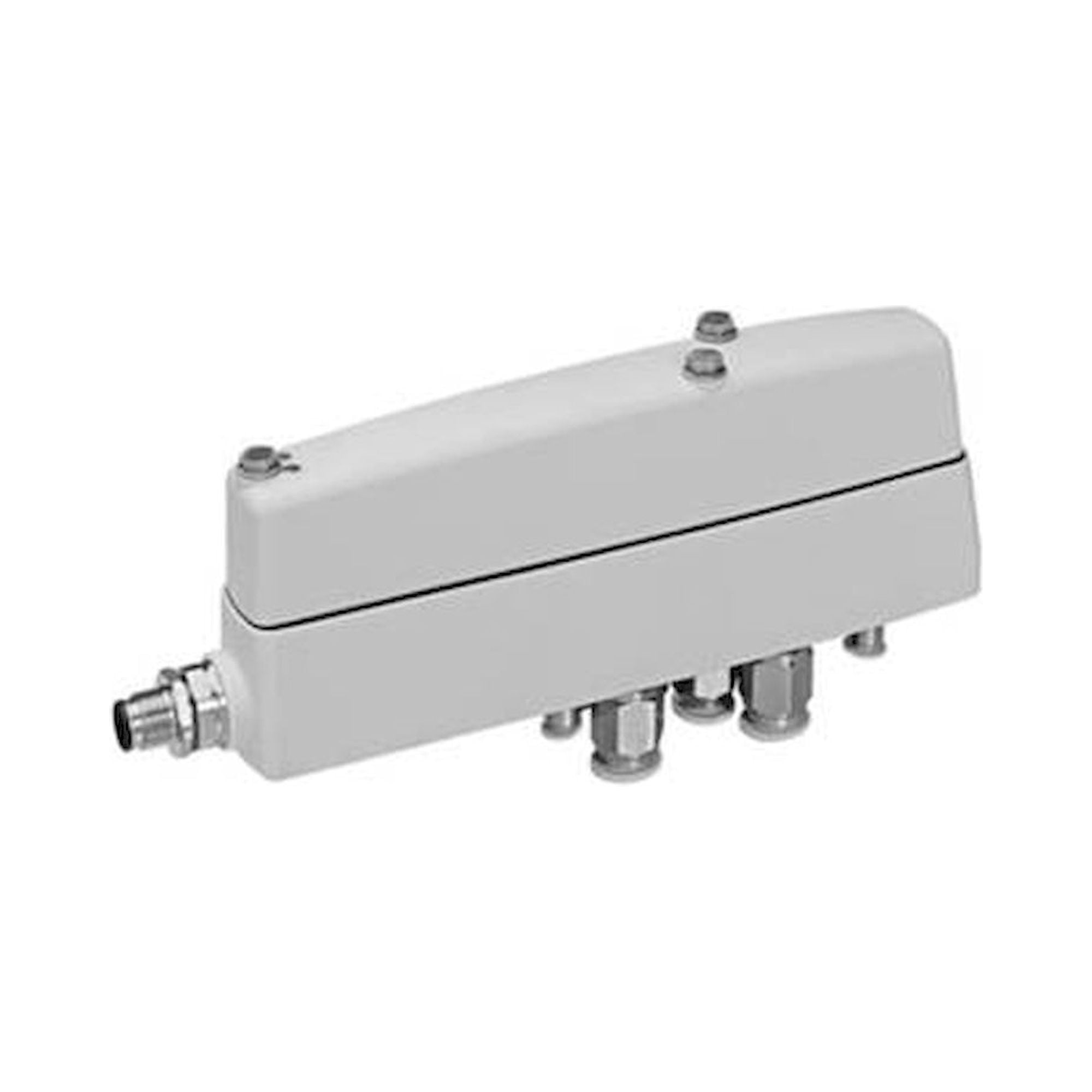

Series CL03-EVCompact valves CL03-EV, 3/2 and 5/2
Series LS04LS04 valve series for valve systems
Series 840Directional valves of the 840 series
Series CD12Compact directional valves series CD12
Series CD07Compact directional valves series CD07

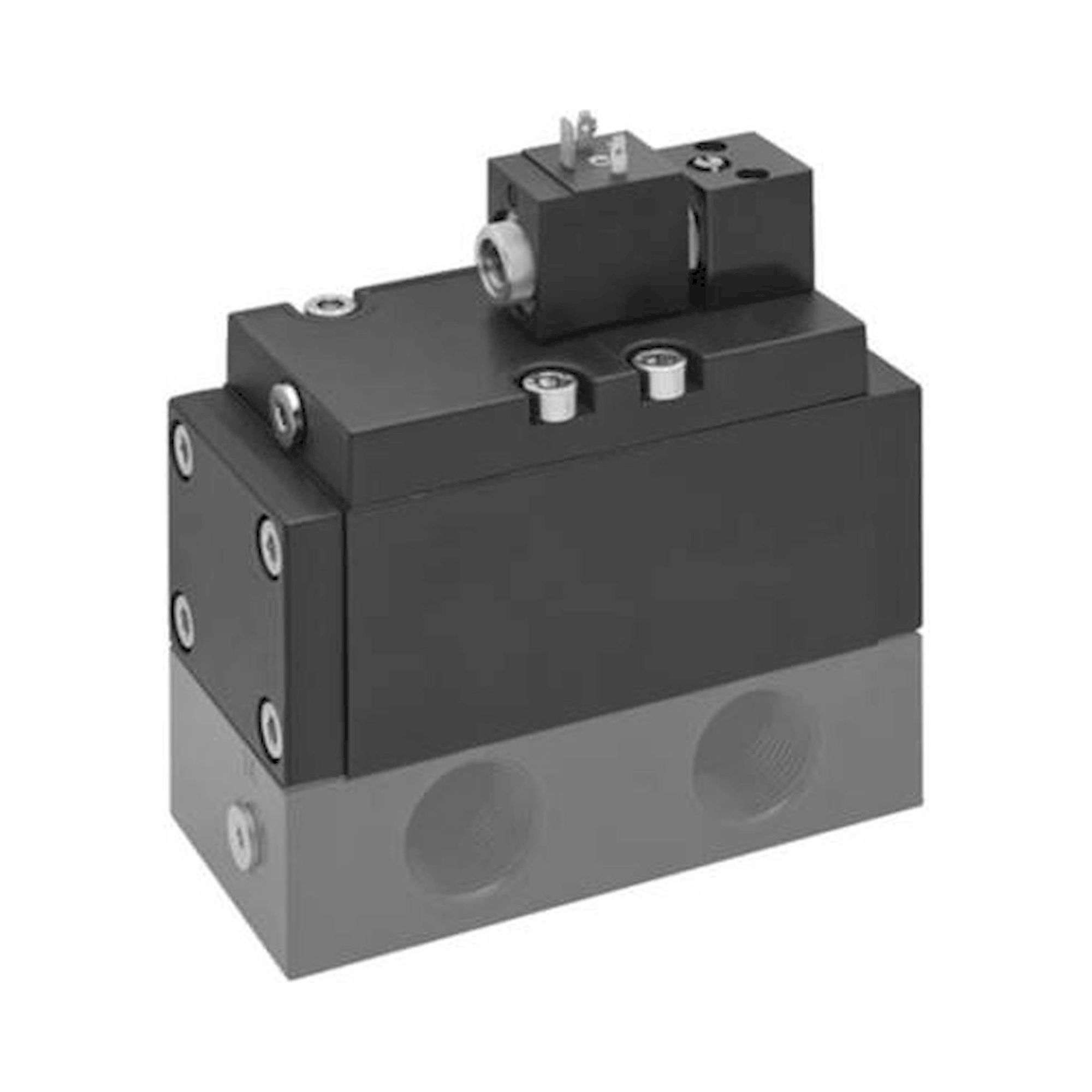

Series 563, 565, 567Directional valves series 563, 565, 567
Series 740Directional valves of the 740 series
Series APValves of the AP series
Series CD04Compact directional valves series CD04
Series STValves of the ST series
Series TC15Valves of the TC15 series
Series WV02Valves of the WV02 series
Series TC08Valves of the TC08 series

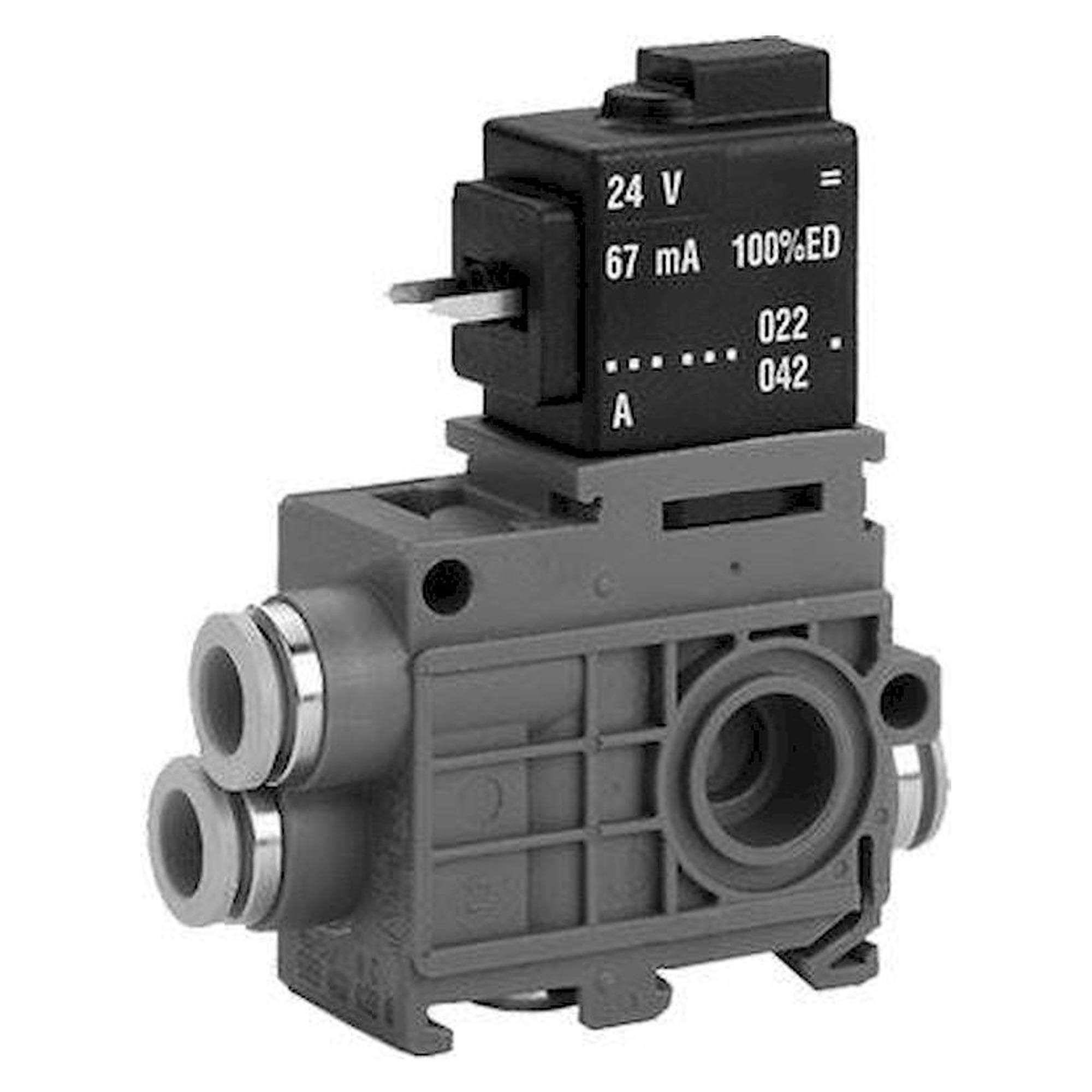

Series 589Directional valves of the 589 series
Series 579Directional valves of the 579 series
Series DOValves of the DO series

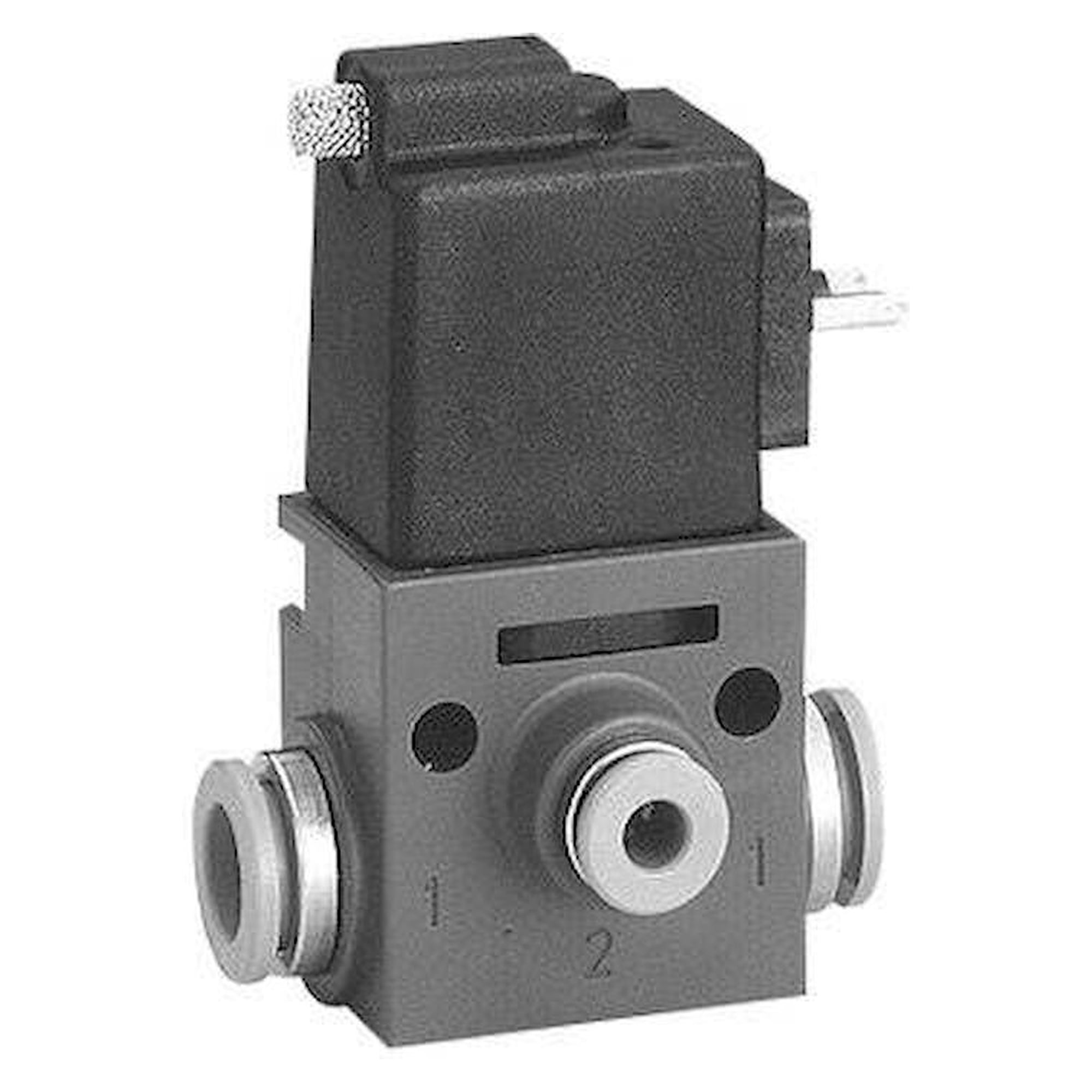

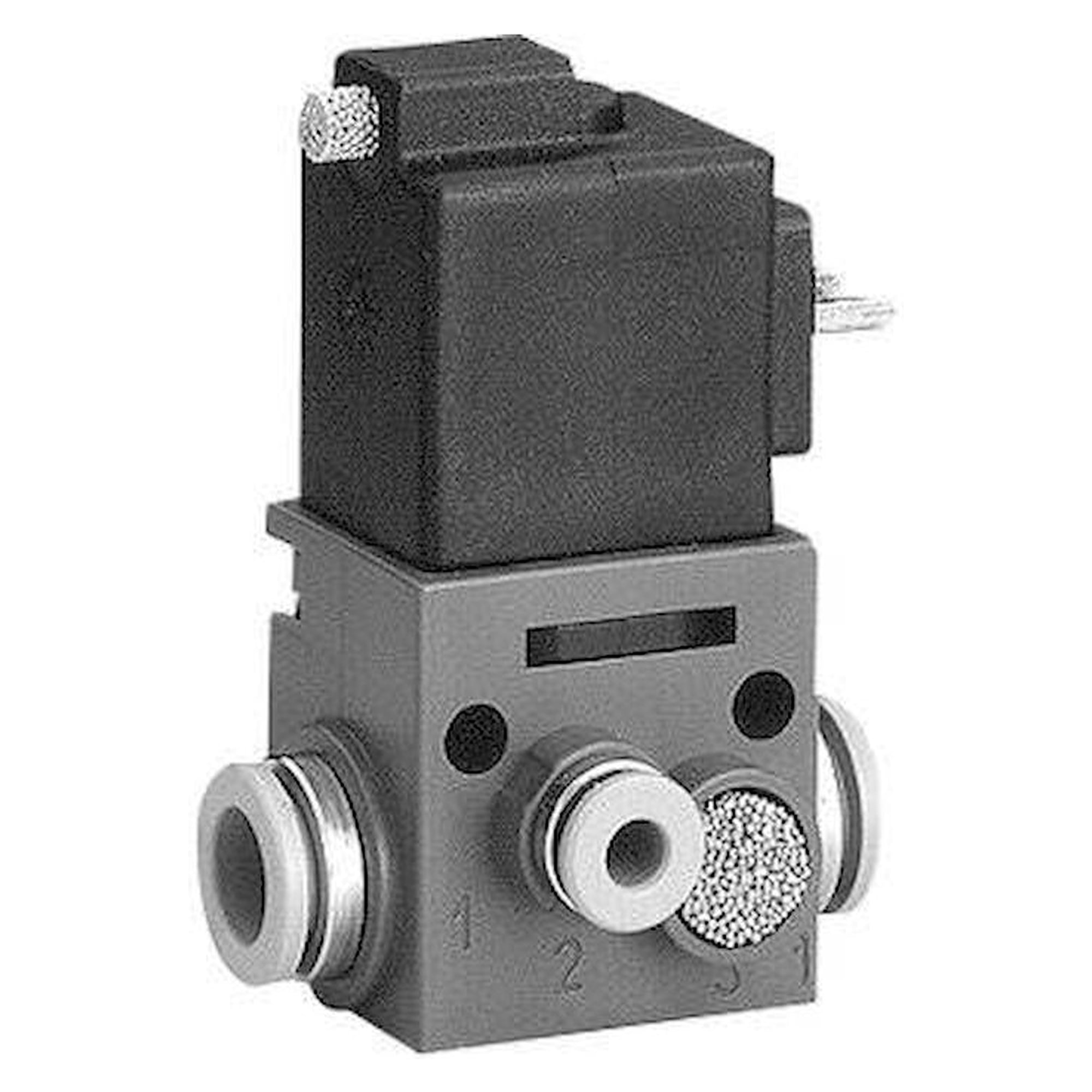

Series 490Directional valves of the 490 series
3/2 way valve switches one port between pressure and exhaust, for example for single-acting cylinders.
5/2 way valve controls double-acting cylinders with two stable positions.
5/3 way valve offers a centre closed or exhaust position for holding or releasing.
Monostable and bistable define whether the valve resets on signal loss or keeps its position.
