Electric parallel gripper size 28, total stroke 30 mm, EtherCAT HEPP-28-30-EC-B - Festo 8146667

Festo ✓ Original product Brand new

The parallel gripper HEPP-28-30-EC-B grips electrically without compressed air and delivers up to 160 N gripping force per jaw. 15 mm stroke per jaw, repetition accuracy ± 0.04 mm, roller guide. Supplied with 24 V DC, degree of protection IP40. Cleanroom suitable to ISO 14644-1 Class 6.

Net
€2,376.33
excl. VAT
Item FES-8146667
Manufacturer no. HEPP-28-30-EC-B
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

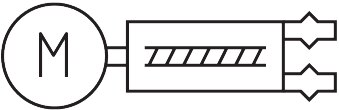

The size 28 parallel gripper HEPP-28-30-EC-B delivers up to 160 N gripping force per jaw. An electric motor moves both jaws in parallel. Version HEPP-28-30-EC-B: roller guide.

Benefits

  • Up to 160 N gripping force per jaw
  • Repetition accuracy ± 0.04 mm
  • 15 mm stroke per jaw
  • Positioning speed 40 mm/s per gripper finger, rated load 1 kg
  • EtherCAT fieldbus interface, version with brake
  • Cleanroom suitability Class 6 according to ISO 14644-1

Applications

The HEPP-28-30-EC-B suits handling tasks without a compressed air supply and applications where the controller sets gripping position and gripping force. Position detection via the motor encoder. For battery production with reduced Cu/Zn/Ni values (F1a), the HEPP-28-30-EC-B is a suitable choice.

Technical data

Size28
Total stroke30 mm
Stroke per gripper jaw15 mm
Max. gripper jaw clearance Sy0.35 mm
Repetition accuracy in ± mm0.04 mm
Number of gripper jaws2
Drive systemElectrical
Mounting positionAny
Controller operating modeInterpolated mode via fieldbus
Gripper functionParallel
DesignToothed belt, Electric gripper, With brake, With ball screw
GuideRoller bearing guide
Position detectionMotor encoder
Configuration supportESI file
VariantsVariant without copper, zinc or nickel as main constituent (except nickel in steel, chemically nickel-plated surfaces, PCBs, cables, connectors and coils)
Rotor position sensorAbsolute encoder, single turn
Rotor position sensor, encoder measuring principleMagnetic
Ready status indicationLED
Positioning speed per gripper finger40 mm/s
Positioning acceleration per gripper finger1 m/s²
Gripping speed per gripper finger3 mm/s
Number of MAC addresses4
Max. current consumption3000 mA
Max. current consumption, load2 A
Max. current consumption, logic1 A
Nominal operating voltage DC24 V
Nominal voltage for logic power supply DC24 V
Nominal voltage load voltage DC24 V
Nominal motor current0.9 A
Permissible range for load power supply±10%
Permissible range for logic voltage±10%
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Relative air humidityNon-condensing
Sound pressure level60 dB(A)
Degree of protectionIP40
Ambient temperature0 to 50 °C
Total gripping force320 N
Gripping force per gripper jaw160 N
Mass moment of inertia30 kgcm²
Max. force on gripper jaw Fz static680 N
Max. torque at gripper Mx static6.5 Nm
Max. torque at gripper My static14.5 Nm
Max. torque at gripper Mz static6.5 Nm
Rated load1 kg
Nominal torque0.115 Nm
Lubrication interval for guide components1 million cycles
Product weight1400 g
Communication profileCiA402, EoE (Ethernet over EtherCAT), FoE (File over EtherCAT)
Field bus, connection typeSocket
Field bus, connection systemM12x1, D-coded to EN 61076-2-101
Field bus, connection pattern4
Field bus, protocolEtherCAT®
Electrical connection2x M12
Fieldbus linkEtherCAT®
Type of mountingVia female thread and centring sleeve
Note on materialsRoHS compliant
Housing materialAnodised aluminium
Gripper jaw materialSteel
ManufacturerFesto
Hersteller-NrHEPP-28-30-EC-B
EAN4052568609665
Zolltarifnummer84798997
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
Actuation typeElectrical
Operating voltage24 V DC
Protection ratingIP40
Temperaturbereich0-50 °C
Temperature (max.)50
