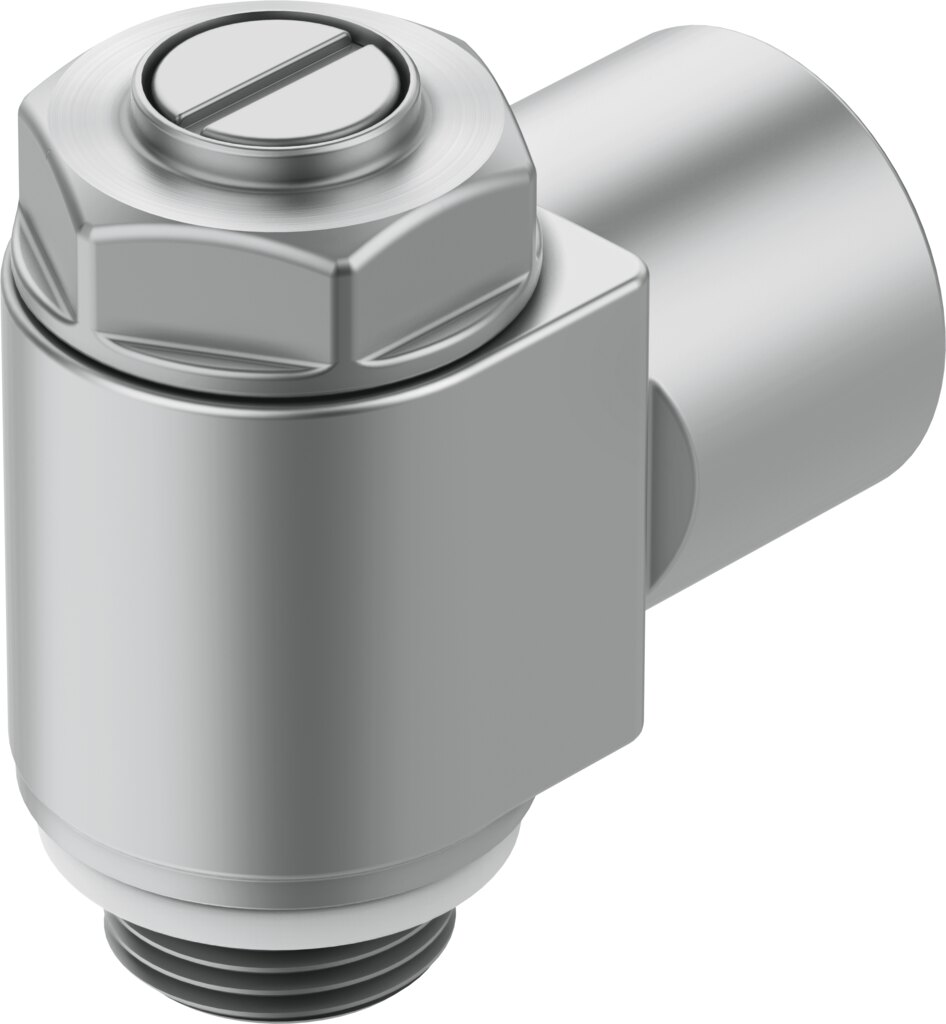

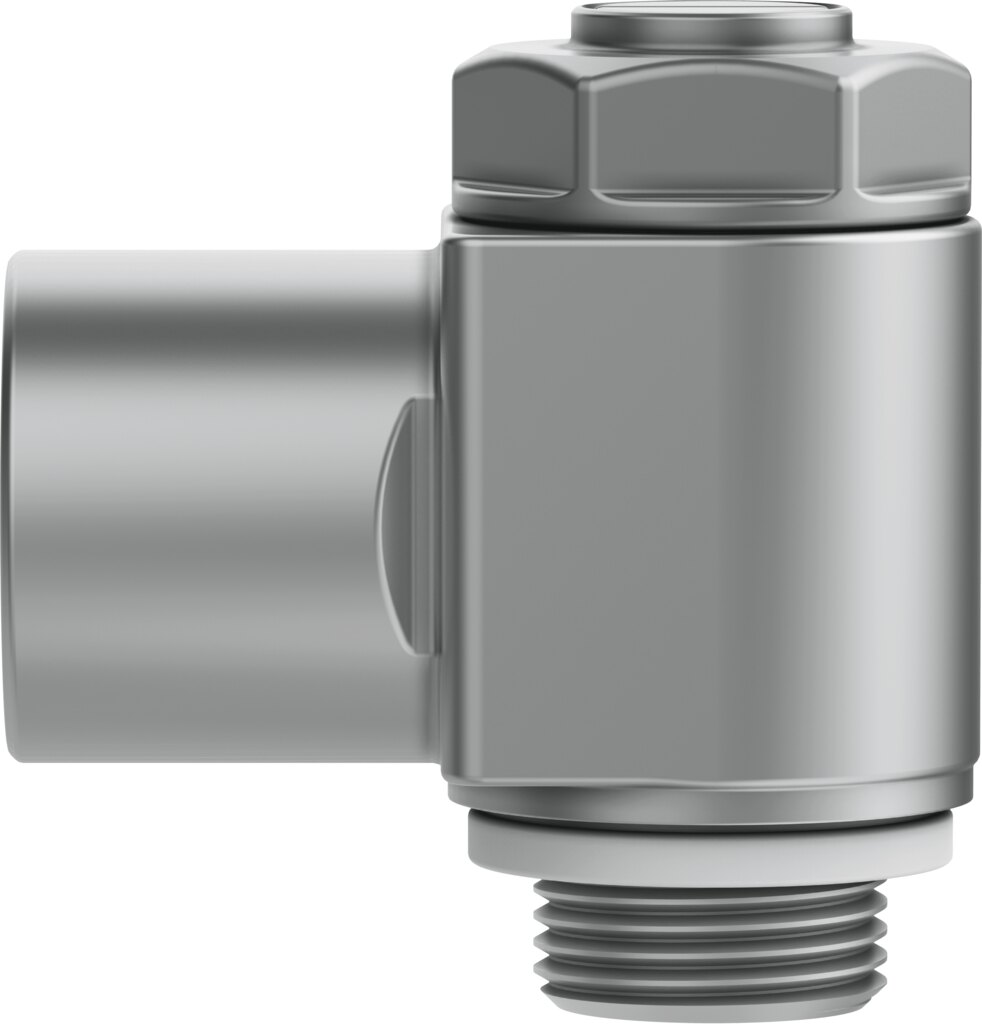

One-way flow control valve for exhaust air, 1/2 NPT GRLA-1/2-NPT-B - Festo 151559
GRLA-1/2-NPT-B throttles the exhaust air of a cylinder and so determines its speed. Main values: port 1/2 NPT, operating pressure 0.3 to 10 bar. The return flow stays unthrottled. Ambient temperature -10 to 60 °C. Weight 210 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
0.3 to 10 bar operating pressure: GRLA-1/2-NPT-B throttles the exhaust air of a cylinder and so determines its speed. The return flow stays unthrottled.
Benefits
- Pressure range: 0.3 to 10 bar operating pressure
- Connections: 1/2 NPT
- Cleanroom and paint compatibility: class 4 to ISO 14644-1, LABS conformity VDMA24364-B2-L
- Temperature: -10 to 60 °C ambient temperature
- Adjustment: Slotted screw
Applications
It is typically installed directly in the port of a double-acting cylinder. Operating medium: compressed air to ISO 8573-1:2010 [7:4:4]. Mounting: screw-in. Lubricated operation possible, then required.
Technical data
| Type | GRLA-1/2-NPT-B |
|---|---|
| Festo part number | 151559 |
| Valve function | Exhaust air one-way flow control function |
| Pneumatic connection, port 1 | 1/2 NPT |
| Pneumatic connection, port 2 | 1/2 NPT |
| Adjustment component | Slotted screw |
| Type of mounting | Screw-in |
| Operating pressure | 0.3 to 10 bar |
| Ambient temperature | -10 to 60 °C |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom suitability (measured to ISO 14644-14) | Class 4 to ISO 14644-1 |
| Medium temperature | -10 to 60 °C |
| Note on materials | RoHS-compliant |
| Material banjo bolt | Wrought aluminium alloy |
| Material nut | Wrought aluminium alloy |
| Weight (shipping) | 210 g |
| Weight | 0.21 kg |
| Manufacturer | Festo |
| Hersteller-Nr | GRLA-1/2-NPT-B |
| EAN | 4052568310127 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | NPT 1/2 |
| Medium | Compressed air |
| Function | Exhaust air throttle check valve function |
| Series | GRLA |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | NPT 1/2 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
